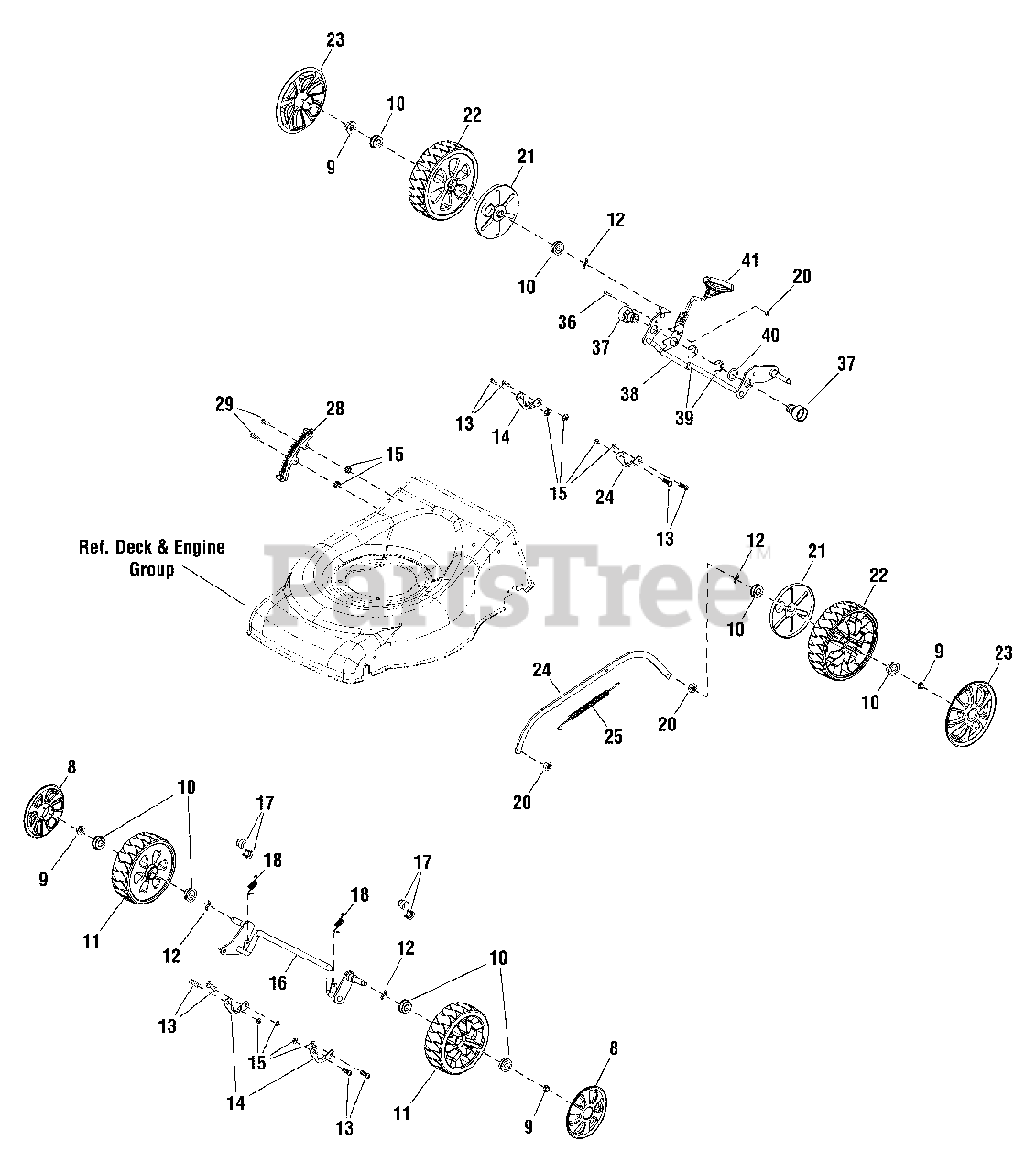

MP 22650 (866076-00) - Snapper 22" Walk-Behind Mower Wheels Group Parts Diagram

22" Walk-Behind Mower

Wheels Group Parts Diagram

  • Title

8

Snapper 704497

HUBCAP, Front

$10.99

$

Usually ships in 2-12 days

0

9

* NUT, Hex Lock

$

$

Not available

10

Snapper 704489

BEARING

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 704496

WHEEL ASSEMBLY, Front

$38.99

$

Usually ships in 2-12 days

0

12

Snapper 704491

WASHER, Wave

$2.99

$

Usually ships in 2-12 days

0

13

* SCREW

$

$

Not available

14

Snapper 704503

BRACKET, Wheel Axle

$3.99

$

Usually ships in 2-12 days

0

15

* NUT, Hex Lock

$

$

Not available

16

Snapper 704537

AXLE ASSEMBLY, Front

$

$

Currently unavailable

17

Snapper 704504

BEARING HOLDER

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 704539

SPRING

$

$

Currently unavailable

20

* NUT, Hex Lock

$

$

Not available

21

Snapper 704541

DUST COVER

$

$

Currently unavailable

22

Snapper 704542

WHEEL ASSEMBLY, Rear

$68.99

$

Usually ships in 2-12 days

0

23

Snapper 704543

HUBCAP, Rear

$20.99

$

Usually ships in 2-12 days

0

24

Snapper 704544

CONNECTING LINK

$

$

Currently unavailable

25

Snapper 704499

SPRING

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 704546

BRACKET, Height of Cut

$

$

Currently unavailable

29

* SCREW

$

$

Not available

36

Snapper 704609

SCREW, Pan Head

$

$

Currently unavailable

37

Snapper 704553

HOLDER, Bearing

$15.99

$

Usually ships in 2-12 days

0

38

Snapper 704554

AXLE ASSEMBLY, Rear

$

$

Currently unavailable

39

Snapper 704555

WASHER, Split

$

$

Currently unavailable

40

Snapper 704556

WASHER, Adjusting

$

$

Currently unavailable

41

Snapper 704557

HEIGHT ADJUSTMENT ASSEMBLY

$

$

Currently unavailable
