MP 22675 FC (7800683) - Murray 22" Walk-Behind Mower, Canada (2010) Handles & Controls - Self-Propelled Parts Diagram

22" Walk-Behind Mower, Canada

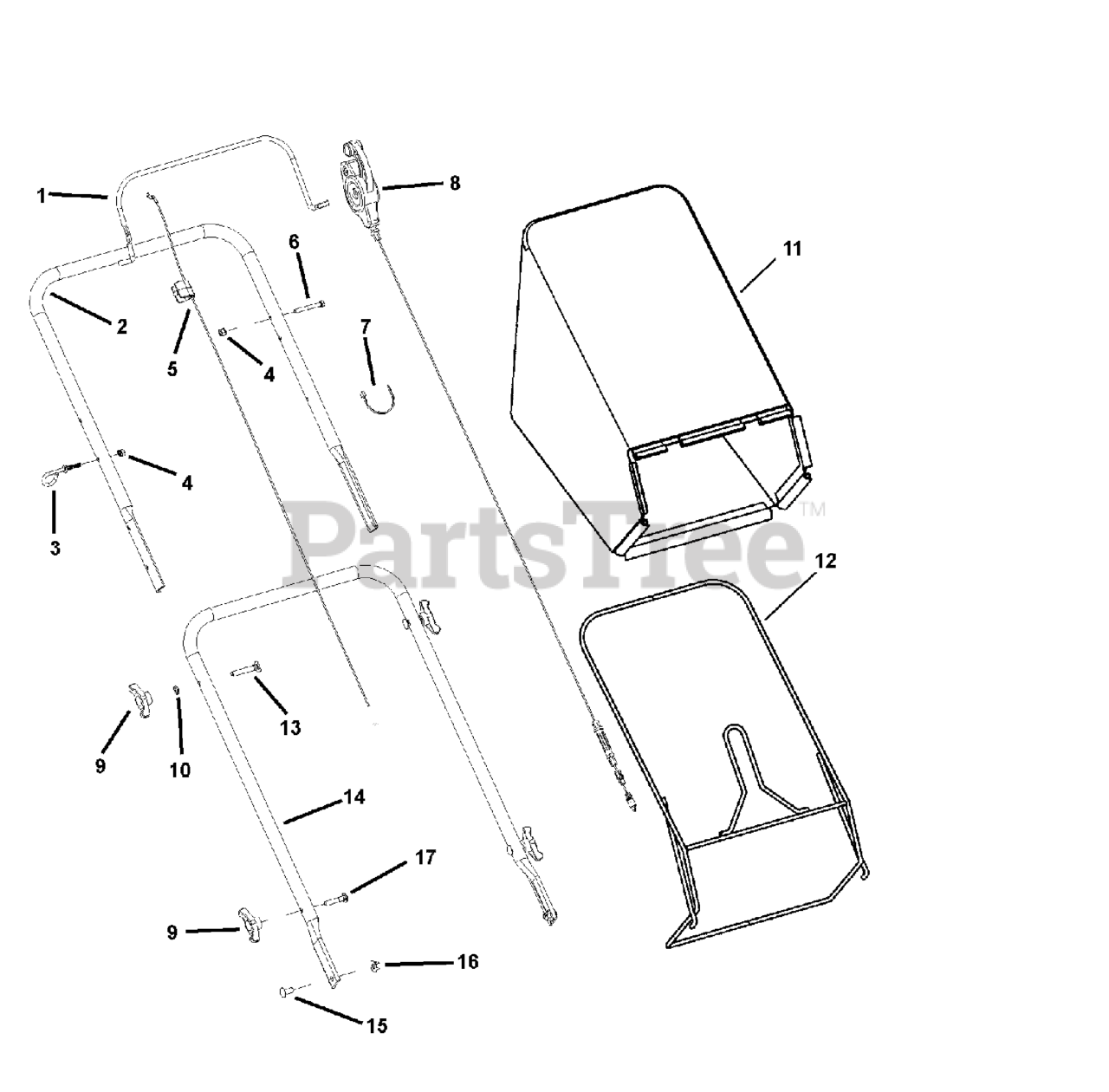

Handles & Controls - Self-Propelled Parts Diagram

  • Title

1

Murray 7101676AMA

BAIL, OPC Propelled

Note: (Used on Models with Serial No. 2013658541 & earlier)

$12.99

$

Usually ships in 2-12 days

0

1

Murray 7103975AYP

BAIL, OPC Propelled

Note: (Used on Models after Serial No. 2013658541)

$12.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

HANDLE, Upper

$54.99

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope, 1/4-20 thread

$6.49

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101862YP

CABLE, Bail, Std Propelled, 53.5"

Note: (Used on Models with Serial No. 2013658541 & earlier)

$30.99

$

In Stock, only 3 left!

0

5

Murray 7103978YP

CABLE, Bail, Std Propelled, 53.5"

Note: (Used on Models after Serial No. 2013658541)

$23.99

$

Usually ships in 2-12 days

0

6

Murray 7090892YP

CAPSCREW, Hex Head, 1/4-20 x 2-1/4, GR 5
(Superseded to 5025010X18SM)

$3.49

$

In Stock, only 3 left!

0

7

Murray 7024649YP

WIRE TIE

$5.49

$

Usually ships in 2-12 days

0

8

Murray 7101858YP

CONTROL, Drive, Single Speed Std Wheel

$64.99

$

Usually ships in 2-12 days

0

9

Murray 071294MA

KNOB, Wing, 5/16-18
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

10

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7102573YP

BAG, Cloth, Grass Bag

$135.99

$

Usually ships in 2-12 days

0

12

Murray 7101230AYP

FRAME, Grass Bag

$235.99

$

Usually ships in 2-12 days

0

13

Murray 7091189YP

BOLT, Carriage, 5/16-18 x 2, GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 19

0

14

Murray 7301013AYP

HANDLE, Lower

$151.99

$

Usually ships in 2-12 days

0

15

Murray 7091077YP

BOLT, Carriage, 5/16-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

16

Murray 7090585MA

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

17

Murray 7091714YP

BOLT, Carriage, 5/16-18 x 1
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0
