MP 22675 HW (7800456) - Murray 22" Walk-Behind Mower (2010) Deck Assembly (Self-Propelled, Hi-Wheel) Parts Diagram

22" Walk-Behind Mower

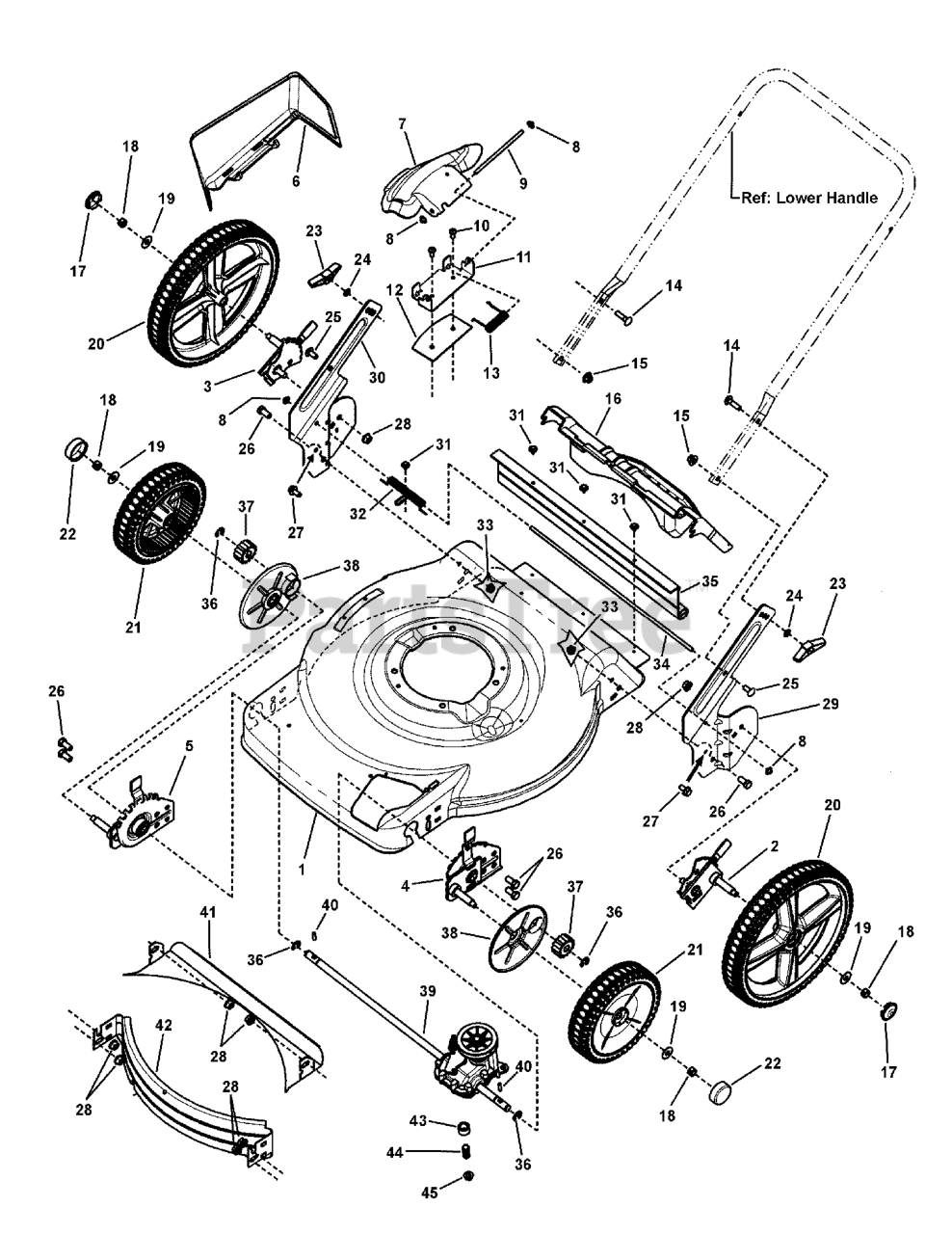

Deck Assembly (Self-Propelled, Hi-Wheel) Parts Diagram

  • Title

1

Murray 7300400ZMA

DECK, 22" Walk, 3-N-1

$

$

Not available

2

Murray 7501066YP

ASSY, Height-of-Cut, Left Rear, Murray 7 Position

$21.99

$

Usually ships in 2-12 days

0

3

Murray 7501065YP

ASSY, Height-of-Cut, Right Rear, Murray 7 Position

$60.99

$

Usually ships in 2-12 days

0

4

Murray 7501061YP

ASSY, Height-of-Cut, Left Front, 22" WBM, Self-Prop, 7 Position

$

$

Not available

5

Murray 7501062YP

ASSY, Height-of-Cut, Right Front, 22" WBM, Self-Prop, 7 Position

$49.99

$

Usually ships in 2-12 days

0

6

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

In Stock, only 1 left!

0

7

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

In Stock, only 1 left!

0

8

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

9

Murray 215X19ZMA

ROD, Chute Pivot (1/4" Dia. x 5.55")
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

10

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

12

Murray 7300856ZMA

PLATE, Mulch, 22" RB Scott's

$6.49

$

Usually ships in 2-12 days

0

13

Murray 166X38MA

SPRING, Chute (Torsion)

$4.99

$

In Stock, only 2 left!

0

14

Murray 7091714YP

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

15

Murray 7090951SM

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

16

Murray 7101243YP

DOOR, Rear Discharge, 22" Walk Mower

$51.99

$

Usually ships in 2-12 days

0

17

Murray 7101931MA

HUBCAP, 12" Wheel, Black

$4.49

$

Usually ships in 2-12 days

0

18

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

19

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

20

Murray 7501399YP

ASSY, Wheel, 12" x 2" Idle, NB, Murray Tread, Pewter
(Superseded to 7105712YP)

$52.99

$

Usually ships in 2-12 days

0

21

Murray 7501390YP

ASSY, Wheel, 8" x 2" Drive, NB, Murray Tread, Pewter

$40.99

$

Usually ships in 2-12 days

0

22

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

23

Murray 671294MA

KNOB, 5/16-18 Wing (Black)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

24

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

25

Murray 7091508SM

BOLT 5/16-18 x 3/4" Round Head Short Square Neck
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

26

Murray 7090134MA

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5

$3.99

$

Usually ships in 2-12 days

0

27

Murray 7090606SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

28

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

29

Murray 7300583ZMA

BRACKET, Lower Handle, LH, 22" WBM, Hi-Wheel

$47.99

$

Usually ships in 2-12 days

0

30

Murray 7300582ZMA

BRACKET, Lower Handle, RH, 22" WBM, Hi-Wheel
(Superseded to 7300582BHYP)

$51.99

$

Usually ships in 2-12 days

0

31

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)

$4.99

$

In Stock, Qty 17

0

32

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" Walk Mower

$6.99

$

Usually ships in 2-12 days

0

33

Murray 7090585MA

NUT, 5/16-18 Flange Lock

$3.99

$

In Stock, Qty 7

0

34

Murray 7101070YP

ROD, Pivot, Rear Door (1/4" Dia. X 17-1/2")

$6.49

$

Usually ships in 2-12 days

0

35

Murray 7102422YP

GUARD, Rear 22" Hi-Wheel

$18.99

$

In Stock, only 2 left!

0

36

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

Note: (Waldes 5133-50)

$4.49

$

In Stock, Qty 20+

0

37

Murray 7101207YP

GEAR, Pinion, 22" WBM, FWD

$8.49

$

In Stock, only 2 left!

0

38

Murray 7101402YP

SHIELD, Dust, 22" WBM, FWD

$7.49

$

In Stock, Qty 5

0

39

Murray 7101206MA

TRANSMISSION, 22" WBM Single Speed, Front Wheel Drive

$137.99

$

Usually ships in 2-12 days

0

40

Murray 7101270YP

DRIVE PIN, 22" WBM, Front Wheel Drive

$5.49

$

In Stock, Qty 7

0

41

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

In Stock, only 1 left!

0

42

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0

43

Murray 7102671YP

SPACER, Drive Transmission

$3.99

$

Usually ships in 2-12 days

0

44

Murray 164X27MA

SPRING, Compression

$3.99

$

Usually ships in 2-12 days

0

45

Murray 015X88MA

NUT, 5/16-18 Hex Flange Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
