MP 22675 HW FC (7800261) - Murray 22" Walk-Behind Mower, Canada (2009) Handles & Controls - Self-Propelled Parts Diagram

22" Walk-Behind Mower, Canada

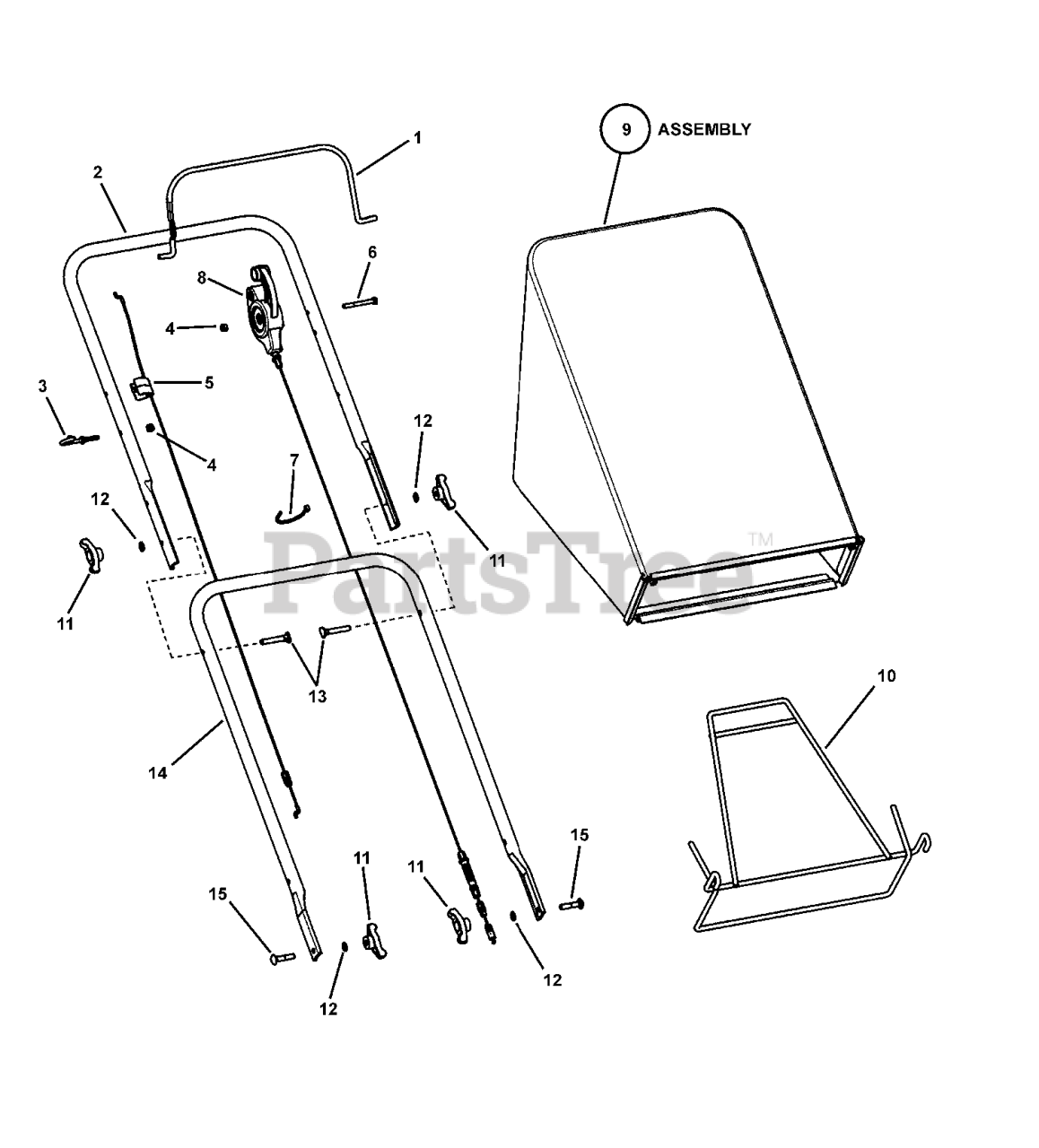

Handles & Controls - Self-Propelled Parts Diagram

  • Title

1

Murray 7101676AMA

BAIL, OPC Propelled

$12.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

UPPER HANDLE, Propelled

$51.99

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope - 1/4-20 thread

$5.99

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101862YP

CABLE, Bail, Std Propelled - 53.50" overall length

Note: (used on 7800204 & 7800260)

$28.99

$

In Stock, only 3 left!

0

5

Murray 7101861MA

CABLE, Bail, Hi-Wheel Propelled - 58.00" overall length

Note: (used on 7800205 & 7800261)

$16.99

$

In Stock, only 4 left!

0

6

Murray 7090892YP

SCREW, 1/4-20 x 2-1/4 Hex Head Cap, GR 5
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

7

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

8

Murray 7101858YP

CONTROL, Drive, Single Speed Std Wheel

Note: (used on 7800204 & 7800260)

$60.99

$

Usually ships in 2-12 days

0

8

Murray 1101670MA

CONTROL, Drive, Single Speed Hi-Wheel

Note: (used on 7800205 & 7800261)

$54.99

$

Usually ships in 2-12 days

0

9

Murray 7101893MA

ASSY, Grass Bag, Cloth - incl. next item below

$189.99

$

In Stock, only 1 left!

0

--

Murray 1101005MA

BAG, Cloth, Grass Bag, Murray

$189.99

$

In Stock, only 1 left!

0

10

Murray 1101074MA

WELDMENT, Frame, Grass Bag

$71.99

$

In Stock, only 1 left!

0

11

Murray 7035744YP

KNOB, 5/16-18 Wing - Black
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0

14

Murray 7300706AMA

HANDLE, Lower

$152.99

$

In Stock, only 1 left!

0

15

Murray 002X81MA

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage

$3.49

$

Usually ships in 2-12 days

0

15

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Short Square Neck Carriage GR 5
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0
