MP 38 (UT-05055-A) - Homelite Multi Purpose Saw Starter, Tank & Muffler Parts Diagram

Multi Purpose Saw

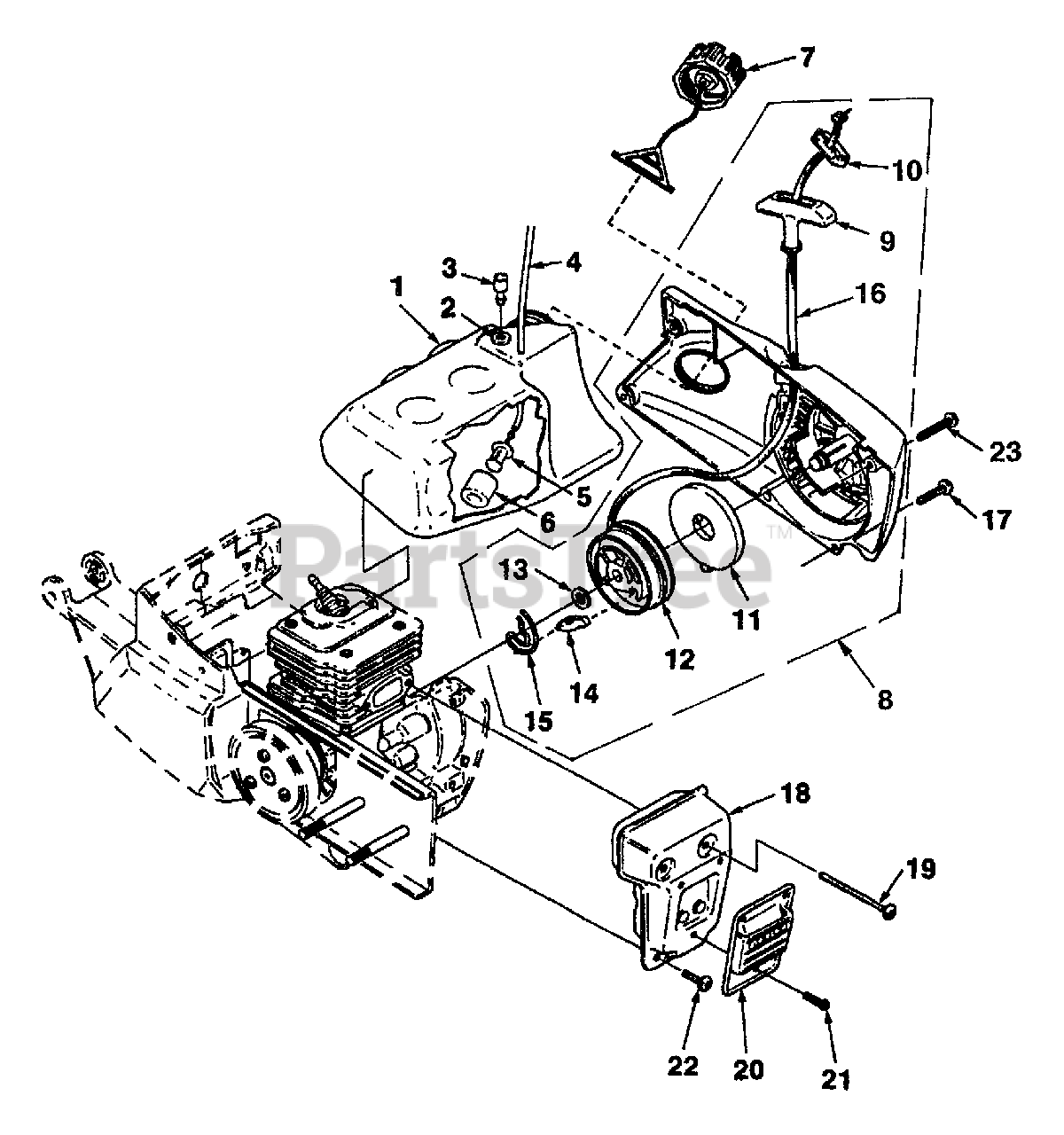

Starter, Tank & Muffler Parts Diagram

  • Title

1

Homelite A03402

TANK-Fuel
(Superseded to UP07139)

$

$

Not available

2

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

3

Homelite A02294

FILTER SLEEVE (Complete)
(Superseded to UP07070)

$

$

Not available

4

Homelite 9477240

TUBING-Rubber (10")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

5

Homelite A97700

FILTER-Fuel
(Superseded to UP06516)

$

$

Not available

6

Homelite 592531A

FILTER-Fuel

$13.99

$

Usually ships in 3-7 days

0

7

Homelite A00904A

CAP-Tank (w/Retainer)
(Superseded to DA00904A)

$

$

Not available

8

Homelite A03884A

STARTER (Complete)
(Superseded to UP07071A)

$146.99

$

Usually ships in 3-7 days

0

9

Homelite A69962B

GRIP-Starter (w/insert)

$23.99

$

Usually ships in 3-7 days

0

10

Homelite 70018A

INSERT-Rope Ret.

$

$

Not available

11

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

12

Homelite A03882

PULLEY ASSEMBLY
(Superseded to UP05972)

$45.99

$

Usually ships in 3-7 days

0

13

Homelite 01274

WASHER-Thrust

$

$

Not available

14

Homelite 98332A

PAWL-Starter

$

$

Not available

15

Homelite 03750B

CLIP-Retainer

$

$

Not available

16

Homelite 97500

ROPE- Starter (45")
(Superseded to UP06913)

$

$

Not available

17

Homelite 825551

SCREW-Truss Hd. (10-24 X 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite A02287

MUFFLER
(Superseded to UP06363)

$

$

Not available

19

Homelite 82574

SCREW-Truss Hd. (10-24 X 2 1/2")

$

$

Not available

20

Homelite A98747

CAP-Muffler

$

$

Not available

21

Homelite 80983

SCREW-Machine Hex Hd. (8-32 X 1/2"
(Superseded to 80560)

$

$

Not available

22

Homelite 966201

SCREW-Torx (10-24 X 1/2")
(Superseded to UP07201)

$5.99

$

Usually ships in 3-7 days

0

23

Homelite 825561

SCREW-Truss Hd. (10-24 X 3 1/4")
(Superseded to UP04113)

$2.49

$

Usually ships in 3-7 days

0
