MP 38 (UT-05055-B) - Homelite Multi Purpose Saw Clutch Parts Diagram

Multi Purpose Saw

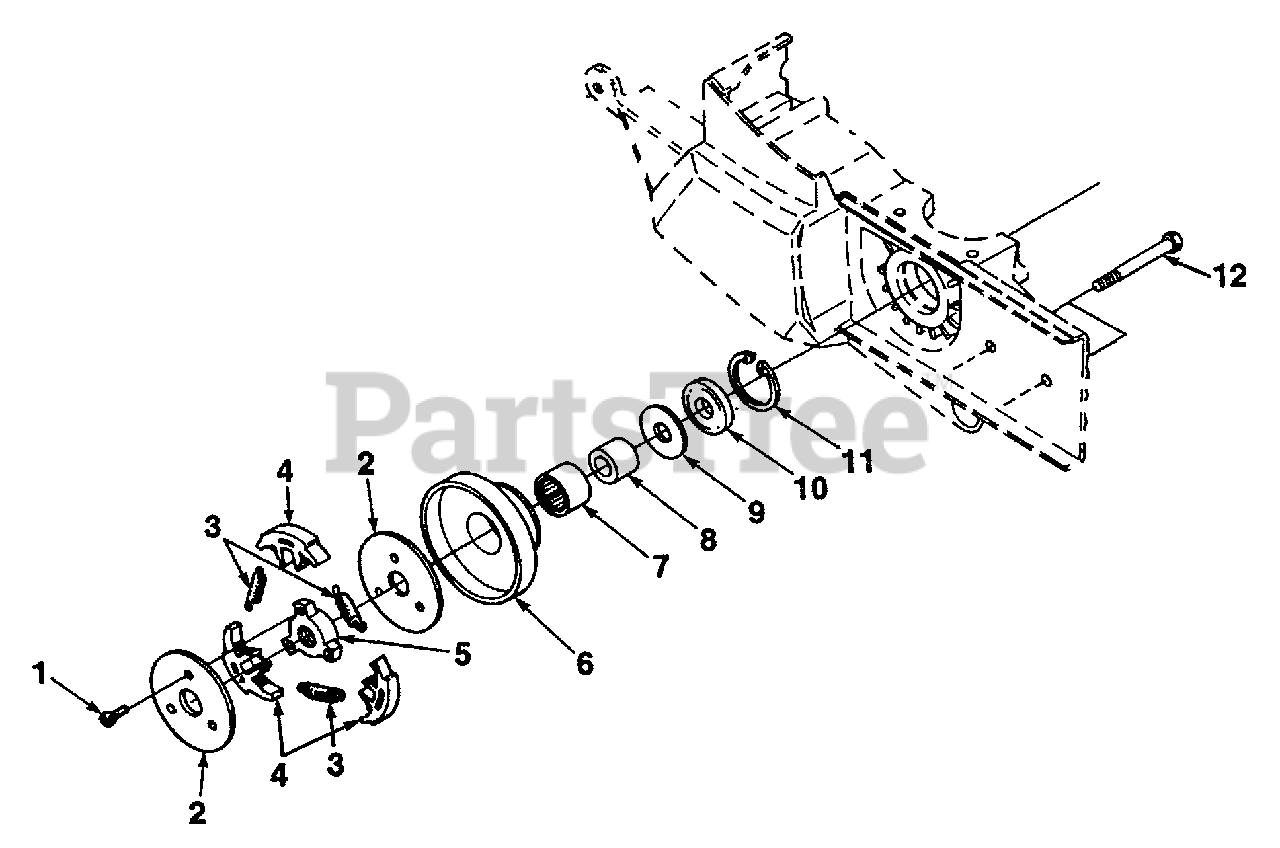

Clutch Parts Diagram

  • Title

1

Homelite 82253

SCREW-Machine Hex Hd. (8-32 X 3/8")

$

$

Not available

2

Homelite 93628

COVER-Clutch

$

$

Not available

3

Homelite 93638A

SPRING-Clutch
(Superseded to UP06462)

$

$

Not available

4

Homelite 79239

SHOE-Clutch

$

$

Not available

5

Homelite 02334

CLUTCH-Spider

$

$

Not available

6

Homelite A49543

PULLEY-Drum & Bearing
(Superseded to UP07077)

$

$

Not available

7

Homelite 46071

BEARING-Needle

$

$

Not available

8

Homelite 46070

RACE-Inner

$

$

Not available

9

Homelite 46135

WASHER-Thrust

$

$

Not available

10

Homelite 98197A

SEAL-Main
(Superseded to UP06470)

$

$

Not available

11

Homelite 289221

RETAINER-Bearing

$

$

Not available

12

Homelite 02327

BOLT-Wheel Arm

$

$

Not available
