MP 38 (UT-05055) - Homelite Multi Purpose Saw Blade Arm Parts Diagram

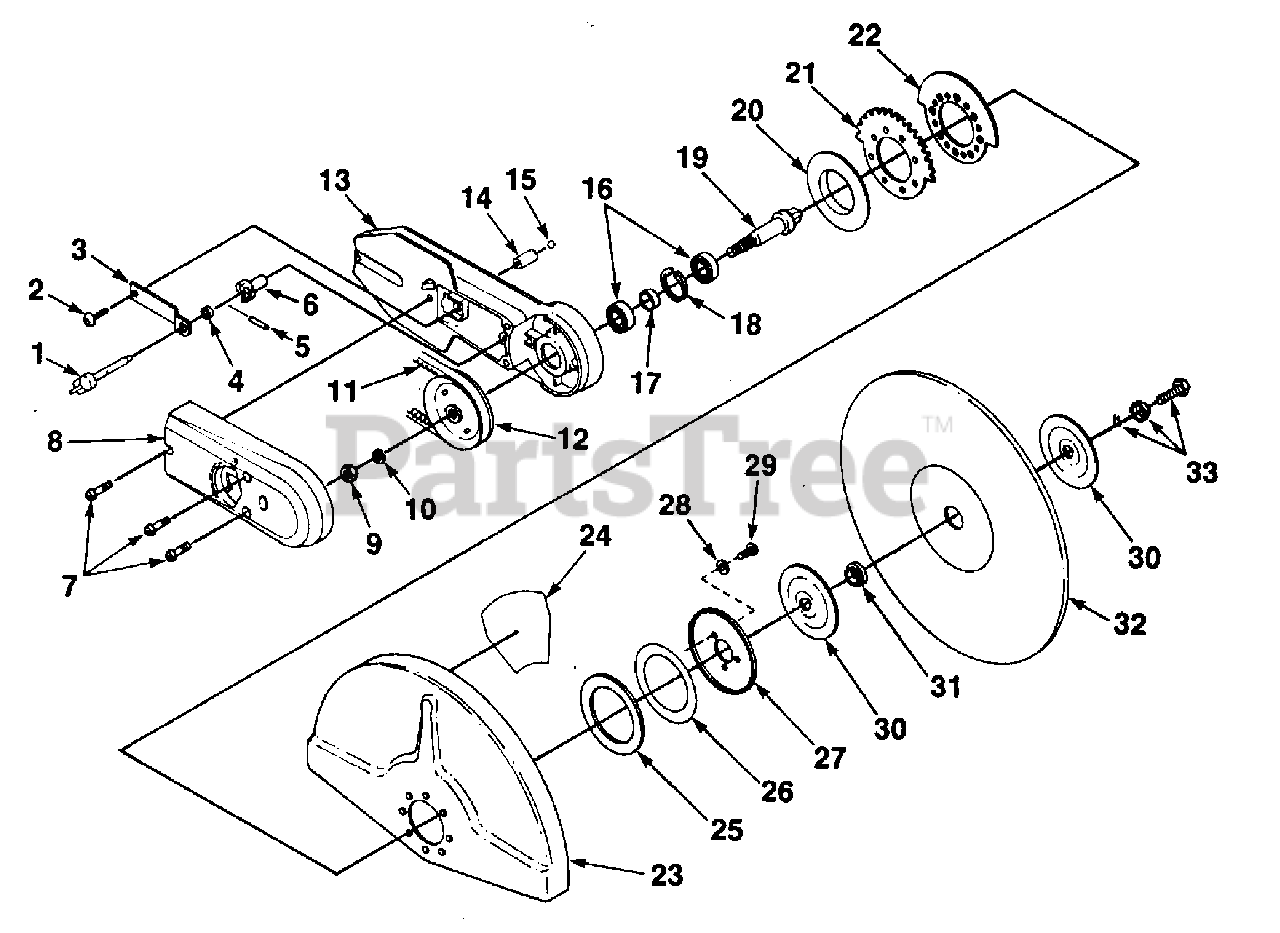

Multi Purpose Saw

Blade Arm Parts Diagram

  • Title

1

Homelite 01924

KNOB- Wheel guard adjuster

$

$

Not available

2

Homelite 966201

SCREW- Truss hd. (10-24 x 3/4")
(Superseded to UP07201)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 01923

PLATE- Spring

$

$

Not available

4

Homelite 01922

SPACER- Adjusting pin

$

$

Not available

5

Homelite JA461359

PIN- Roll

$

$

Not available

6

Homelite 01921

SLEEVE- Cam

$

$

Not available

7

Homelite 95792

SCREW- Rd. Hd. (10-24 x 23/32")

$

$

Not available

8

Homelite 01927

BELT- Cover
(Superseded to UP05240)

$

$

Not available

9

Homelite 02423

NUT- Hex (7/16-20)
(Superseded to UP07763)

$

$

Not available

10

Homelite 84047

WASHER- Flat

$

$

Not available

11

Homelite 01926

BELT-V-Drive
(Superseded to UP07798)

$25.99

$

Usually ships in 3-7 days

0

12

Homelite A02891

PULLEY & HUB
(Superseded to UP06371)

$

$

Not available

13

Homelite 019172

ARM- Wheel

$

$

Currently unavailable

14

Homelite 02267

SNUBBER

$

$

Not available

15

Homelite 00568

STEEL BALL

$

$

Not available

16

Homelite 63107

BEARING- Ball

$

$

Not available

17

Homelite 01916

SPACER- Bearing

$

$

Not available

18

Homelite 31746

RING- Retaining
(Superseded to UP06391)

$

$

Not available

19

Homelite 01906

SHAFT- Wheel
(Superseded to 019061)

$

$

Not available

20

Homelite 01915

COLLAR- Wheel guard

$

$

Not available

21

Homelite 01914

PAD- Adjuster
(Superseded to 01914A)

$

$

Not available

22

Homelite 01913

DETENT- Adjuster

$

$

Not available

23

Homelite A03479

WHEEL GUARD & PLATE
(Superseded to A04647A)

$196.99

$

Usually ships in 3-7 days

0

24

Homelite 03537

DECAL- Caution

$

$

Not available

25

Homelite 01912

WASHER- Rubber

$8.49

$

Usually ships in 3-7 days

0

26

Homelite 0191101

SHIM-.020"

$

$

Currently unavailable

27

Homelite 01910

WASHER- Spring

$

$

Not available

28

Homelite 95935

WASHER

$

$

Not available

29

Homelite 966201

SCREW- Truss hd. (10-24 x 1/2")
(Superseded to UP07201)

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 019091

FLANGE- Wheel
(Superseded to UP06358)

$

$

Not available

31

Homelite 01902

SPACER (1")
(Superseded to UP05608)

$

$

Not available

Homelite 01903

SPACER (22mm)

$

$

Not available

Homelite 01907

SPACER (20mm)
(Superseded to UP05609)

$

$

Not available

32

WHEEL

$

$

Not available

33

Homelite A03412

BOLT & WASHER
(Superseded to UP07140)

$

$

Not available
