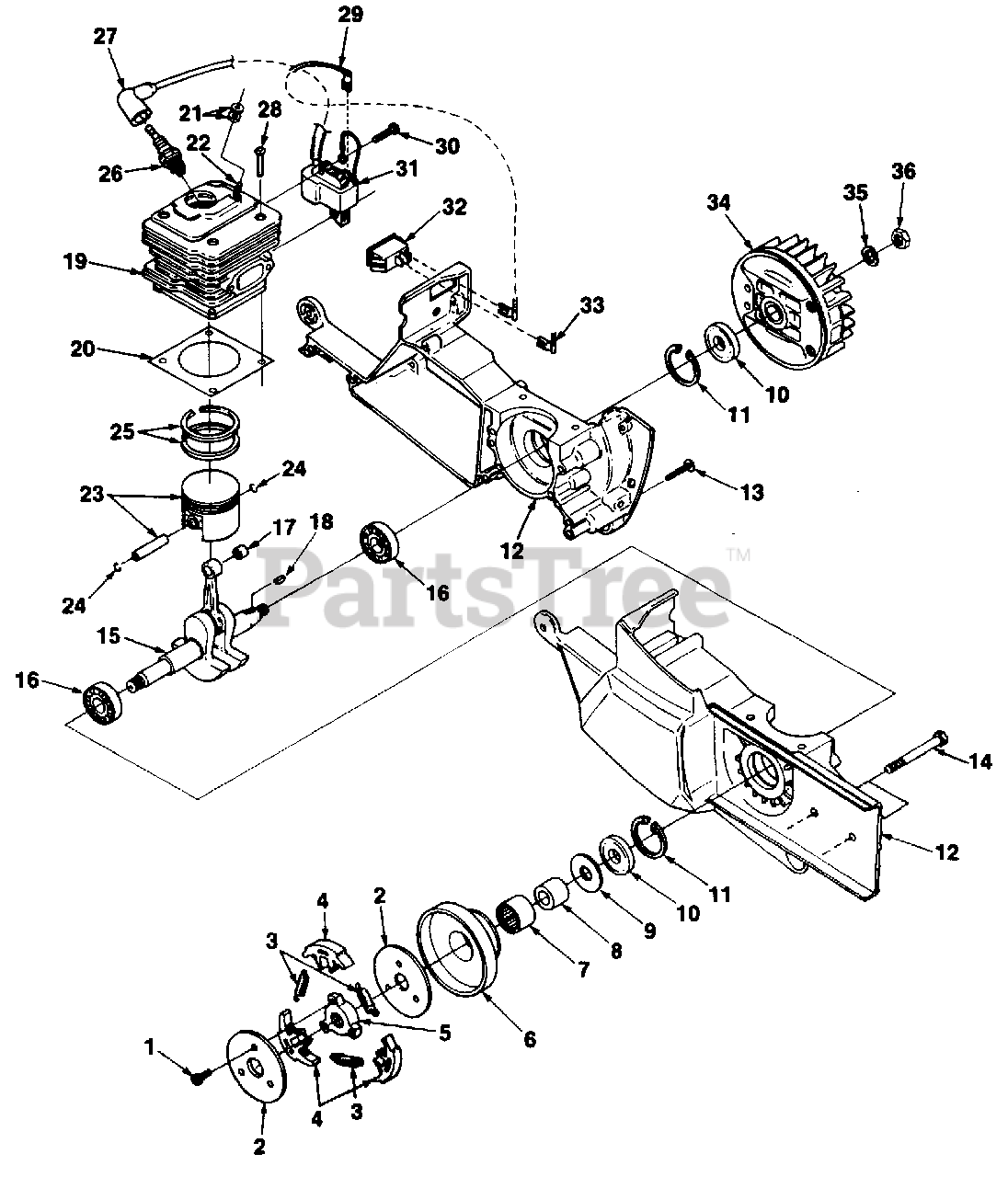

MP 38 (UT-05055) - Homelite Multi Purpose Saw Ignition, Engine Internals & Clutch Parts Diagram

Multi Purpose Saw

Ignition, Engine Internals & Clutch Parts Diagram

  • Title

1

Homelite 82253

SCREW- Mach. Hex hd. (8-32 x 3/8")

$

$

Not available

2

Homelite 96449

COVER- Clutch

$

$

Not available

3

Homelite 93638A

SPRING- Clutch
(Superseded to UP06462)

$

$

Not available

4

Homelite 79239

SHOE- Clutch

$

$

Not available

5

Homelite 02334

CLUTCH- Spider

$

$

Not available

6

Homelite A49543

PULLEY- Drum & Bearing
(Superseded to UP07077)

$

$

Not available

7

Homelite 46071

BEARING- Needle

$

$

Not available

8

Homelite 46070

RACE- Inner

$

$

Not available

9

Homelite 46135

WASHER- Thrust

$

$

Not available

10

Homelite 98197

SEAL- Main
(Superseded to UP06470)

$

$

Not available

11

Homelite 98195

RETAINER- Bearing

$

$

Not available

12

Homelite A02272

CRANKCASE

$

$

Currently unavailable

13

Homelite 825561

SCREW- Truss hd. (10-24 x 1 1/4")
(Superseded to UP04113)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 02327

BOLT- Wheel Arm

$

$

Not available

15

Homelite A03883

CRANKSHAFT
(Superseded to UP07132)

$

$

Not available

16

Homelite 987971

BEARING- Ball
(Superseded to 98797)

$

$

Not available

17

Homelite 02151A

BEARING- Roll
(Superseded to UP07200)

$

$

Not available

18

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

19

Homelite A03881

CYLINDER & PISTON ASSY.

$

$

Not available

20

Homelite 01568

GASKET- Cylinder

$

$

Not available

21

Homelite 02425

SPACER

$

$

Not available

22

Homelite 02346

STUD- (10-24 x 1.06")

$

$

Not available

23

Homelite A01273

PISTON

$

$

Currently unavailable

24

Homelite 02161

RING- Retaining

$

$

Not available

25

Homelite 02162

RING- Piston
(Superseded to UP06653)

$

$

Not available

26

Homelite 93561S

SPARK PLUG (CJ6Y)
(Superseded to D93561)

$

$

Not available

Homelite 98217S

SPARKPLUG (RCJ6Y)(Resistor)
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

27

Homelite A02597

SPARK PLUG BOOT KIT

$

$

Not available

28

Homelite 82580

SCREW- Pan hd. (12-24 x 3/4")
(Superseded to 825801)

$

$

Not available

29

Homelite A02284

IGNITION GROUND WIRE
(Superseded to UP07151)

$

$

Not available

30

Homelite 82575

SCREW- Pan hd. (8-32 x 5/8")
(Superseded to 660639001)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite A03748

IGNITION MODULE (Sems/Walbro)
(Superseded to UP07923)

$

$

Not available

32

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available

33

Homelite A03556

GROUND WIRE

$

$

Not available

34

Homelite 02152

ROTOR
(Superseded to UP07923)

$

$

Not available

35

Homelite 83207

WASHER- Lock

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 81124A

NUT- Jam

$

$

Not available
