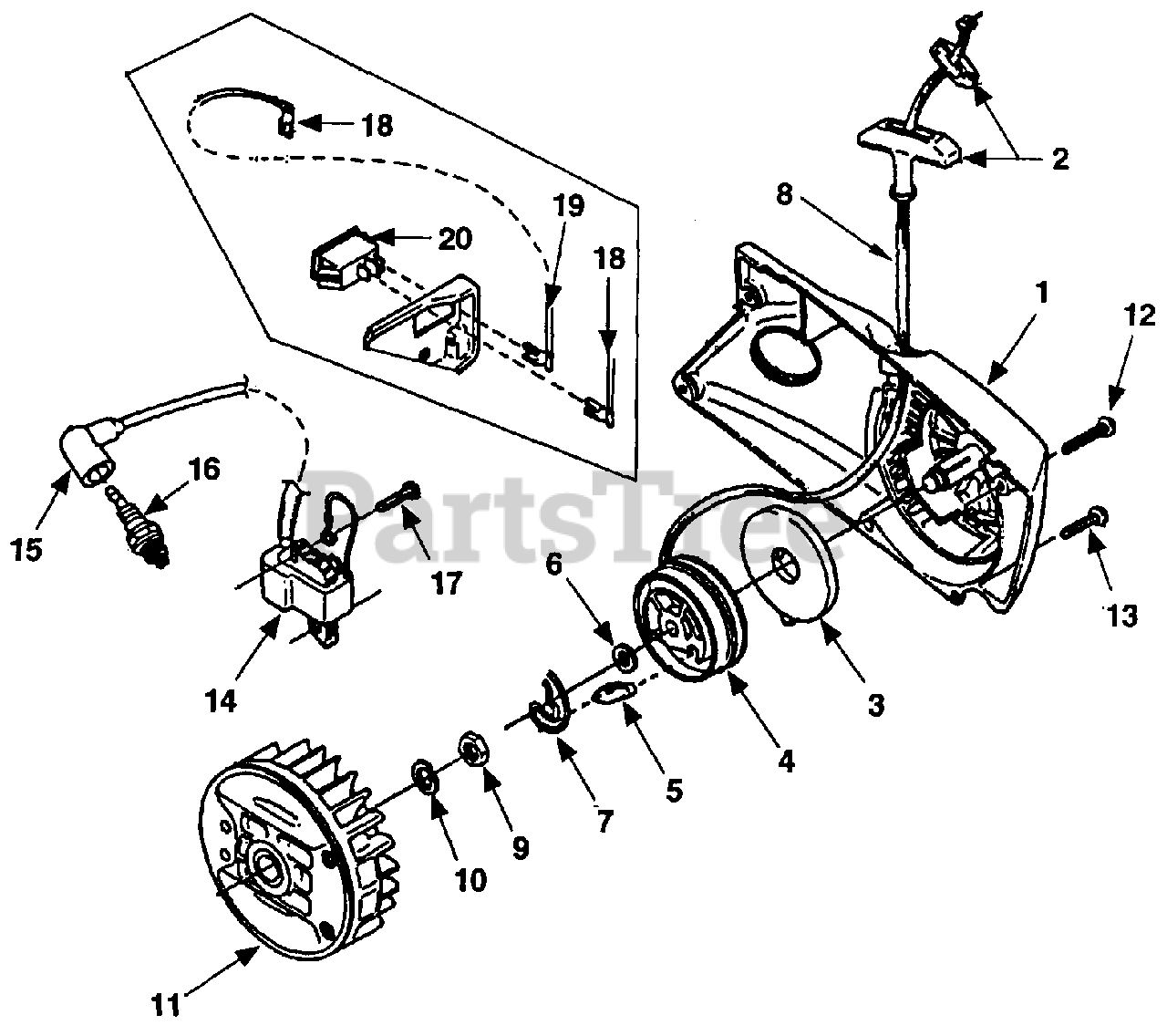

MP 38 (UT-05071-A) - Homelite 12" Multi Purpose Saw Starter-Ignition Parts Diagram

12" Multi Purpose Saw

Starter-Ignition Parts Diagram

  • Title

1

Homelite A03884A

STARTER (Complete)
(Superseded to UP07071A)

$146.99

$

Usually ships in 3-7 days

0

2

Homelite A69962B

GRIP-Starter (w/insert)

$23.99

$

Usually ships in 3-7 days

0

3

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

4

Homelite A03882

PULLEY ASSEMBLY
(Superseded to UP05972)

$45.99

$

Usually ships in 3-7 days

0

5

Homelite 01274

WASHER-Thrust

$

$

Not available

6

Homelite 98332A

PAWL-Starter

$

$

Not available

7

Homelite 03750B

CLIP-Retainer

$

$

Not available

8

Homelite PS97500

ROPE-Starter (45")

$

$

Not available

9

Homelite 81124A

NUT-Jam (3/8 - 24)

Note: Torque Specs: 225 In/Lbs; 25.4 Nm

$

$

Not available

10

Homelite 83102

WASHER-Lock (3/8")

$

$

Not available

11

Homelite PS00090

ROTOR
(Superseded to UP07923)

$

$

Not available

12

Homelite 825561

SCREW-Truss Hd. (10-24 x 1 1/4")
(Superseded to UP04113)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 825551

SCREW (10-24 x 3/4")
(Superseded to UP03899)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$2.99

$

Usually ships in 3-7 days

0

14

Homelite PA00033

IGNITION MODULE
(Superseded to UP07923)

$

$

Not available

15

Homelite A02597

SPARK PLUG BOOT KIT

$

$

Not available

16

Homelite 93561S

SPARK PLUG (CJ6Y)
(Superseded to D93561)

$

$

Not available

Homelite 98217S

SPARK PLUG (RCJ6Y) (Resistor)
(Superseded to 870174002)

$21.99

$

Usually ships in 3-7 days

0

17

Homelite 82575

SCREW-Pan Hd (8-32 x 5/8")
(Superseded to 660639001)

Note: Torque Specs: 20 In/Lbs; 2.2 Nm; RED 262 Required Locktite

$2.49

$

Usually ships in 3-7 days

0

18

Homelite A03556

GROUND WIRE

$

$

Not available

19

Homelite A02284

IGNITION GROUND WIRE
(Superseded to UP07151)

$

$

Not available

20

Homelite 01802

SWITCH
(Superseded to UP06786)

$

$

Not available
