MP 38 (UT-05078) - Homelite 12" Multi Purpose Saw Wheel Arm Assembly Parts Diagram

12" Multi Purpose Saw

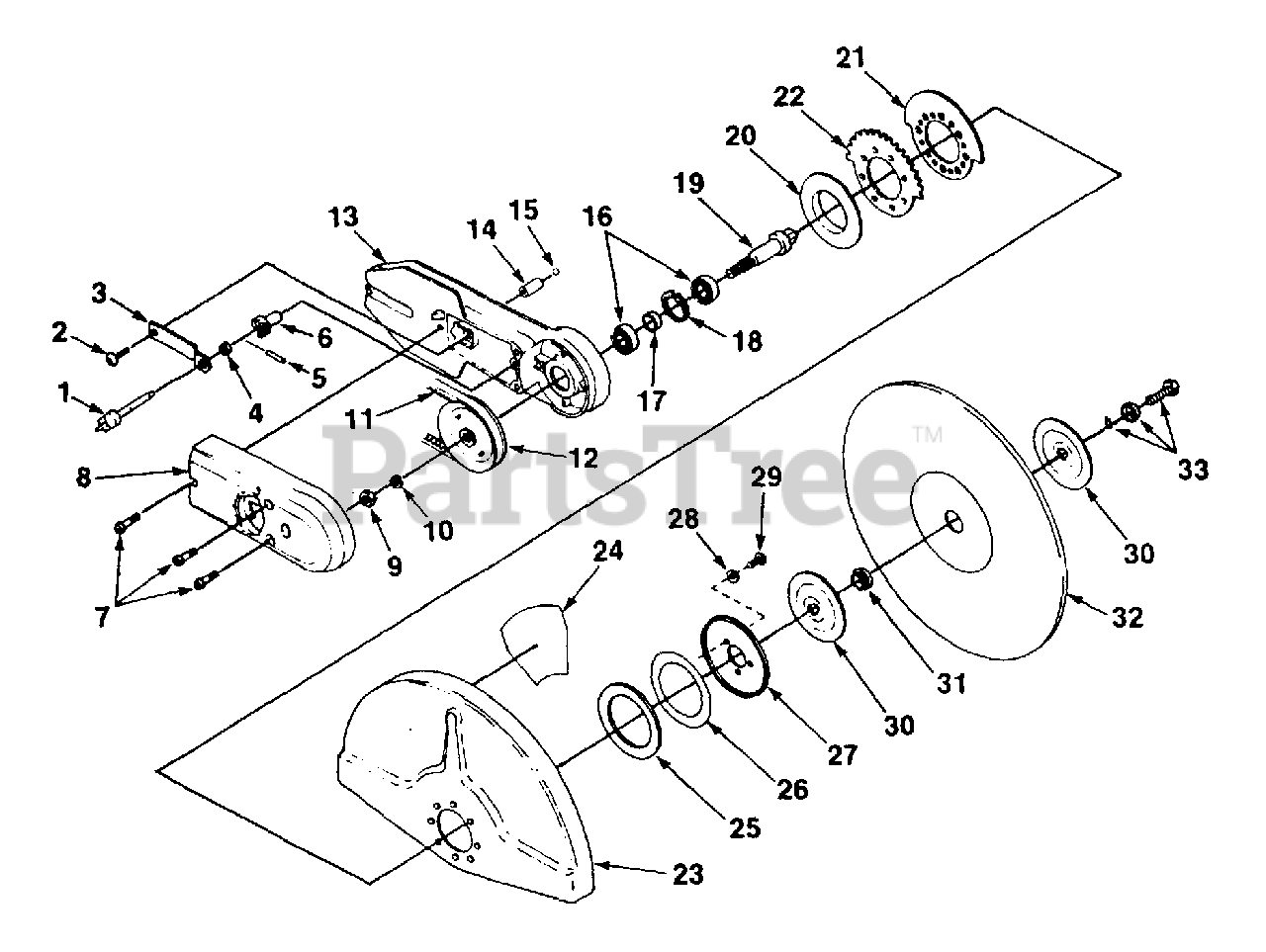

Wheel Arm Assembly Parts Diagram

  • Title

1

Homelite A00660

KNOB & PIN
(Superseded to UP07158)

Note: (Includes 2-33)

$

$

Not available

2

Homelite 966201

SCREW-Truss Hd. (10-24 X 1/2")
(Superseded to UP07201)

Note: (Torque Specs 55 In/Lbs, [6.2 Nm], Required Loctite RED 262)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 01923

PLATE-Spring

$

$

Not available

4

Homelite 01922

SPACER-Adjusting Pin

$

$

Not available

5

Homelite JA461359

PIN-Roll

$

$

Not available

6

Homelite 01921

SLEEVE-Cam

$

$

Not available

7

Homelite 95792

SCREW-Round Hd. (10-24 X 23/32")

Note: (Torque Specs 35 In/Lbs, [3.9 Nm])

$

$

Not available

8

Homelite 07704

BELT Cover

$

$

Not available

9

Homelite 02423

NUT-Hex
(Superseded to UP07763)

Note: (Torque Specs 540 In/Lbs, [6.1 Nm], Required Loctite RED 262)

$

$

Not available

10

Homelite JA446148

WASHER-Lock (7/16)

$

$

Not available

11

Homelite 46068

BELT- V-Drive
(Superseded to UP06392)

$

$

Not available

12

Homelite A02891

PULLEY & HUB
(Superseded to UP06371)

$

$

Not available

13

Homelite 076563A

ARM-Wheel
(Superseded to PS01197)

$

$

Not available

14

Homelite 02267

SNUBBER

$

$

Not available

15

Homelite 00568

STEEL BALL

$

$

Not available

16

Homelite 63107

BEARING-Ball

$

$

Not available

17

Homelite 01916

SPACER-Bearing

$

$

Not available

18

Homelite PS31746

RING-Retaining
(Superseded to UP06391)

$

$

Not available

19

Homelite 019061

SHAFT-Wheel

$

$

Not available

20

Homelite 01915

COLLAR-Wheel Guard

$

$

Not available

21

Homelite 01914A

PAD-Adjuster

$

$

Not available

22

Homelite 01913

DETENT-Adjuster

$

$

Not available

23

Homelite A04647A

WHEEL GUARD & DECAL / 12"

Note: (Includes 24)

$196.99

$

Usually ships in 3-7 days

0

24

Homelite 04645A

DECAL-Caution

$

$

Not available

23

Homelite A07696

WHEEL GUARD & DECAL / 14"
(Superseded to UP07073)

Note: (Includes 24)

$

$

Currently unavailable

24

Homelite 04645A

DECAL-Caution

$

$

Not available

25

Homelite 01912

WASHER-Rubber

$8.49

$

Usually ships in 3-7 days

0

26

UNKNOWN

$

$

Not available

?26A

Homelite 0191101

SHIM-.020"

$

$

Currently unavailable

?26B

Homelite 0191102

SHIM-.030" (Alt. Part)

$

$

Currently unavailable

27

Homelite 01910

WASHER-Spring

$

$

Not available

28

Homelite 95935

WASHER (#12 - 11/16)

$

$

Not available

29

Homelite 966201

SCREW-Truss Hd. (10-24 X 1/2")
(Superseded to UP07201)

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 019091A

FLANGE-Wheel

$

$

Not available

31

Homelite 01902

SPACER (1")
(Superseded to UP05608)

$

$

Not available

Homelite 01903

SPACER (22mm)

$

$

Not available

Homelite 01907

SPACER (20mm)
(Superseded to UP05609)

$

$

Not available

32

WHEEL

$

$

Not available

33

Homelite A03412

BOLT & WASHER
(Superseded to UP07140)

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$

$

Not available
