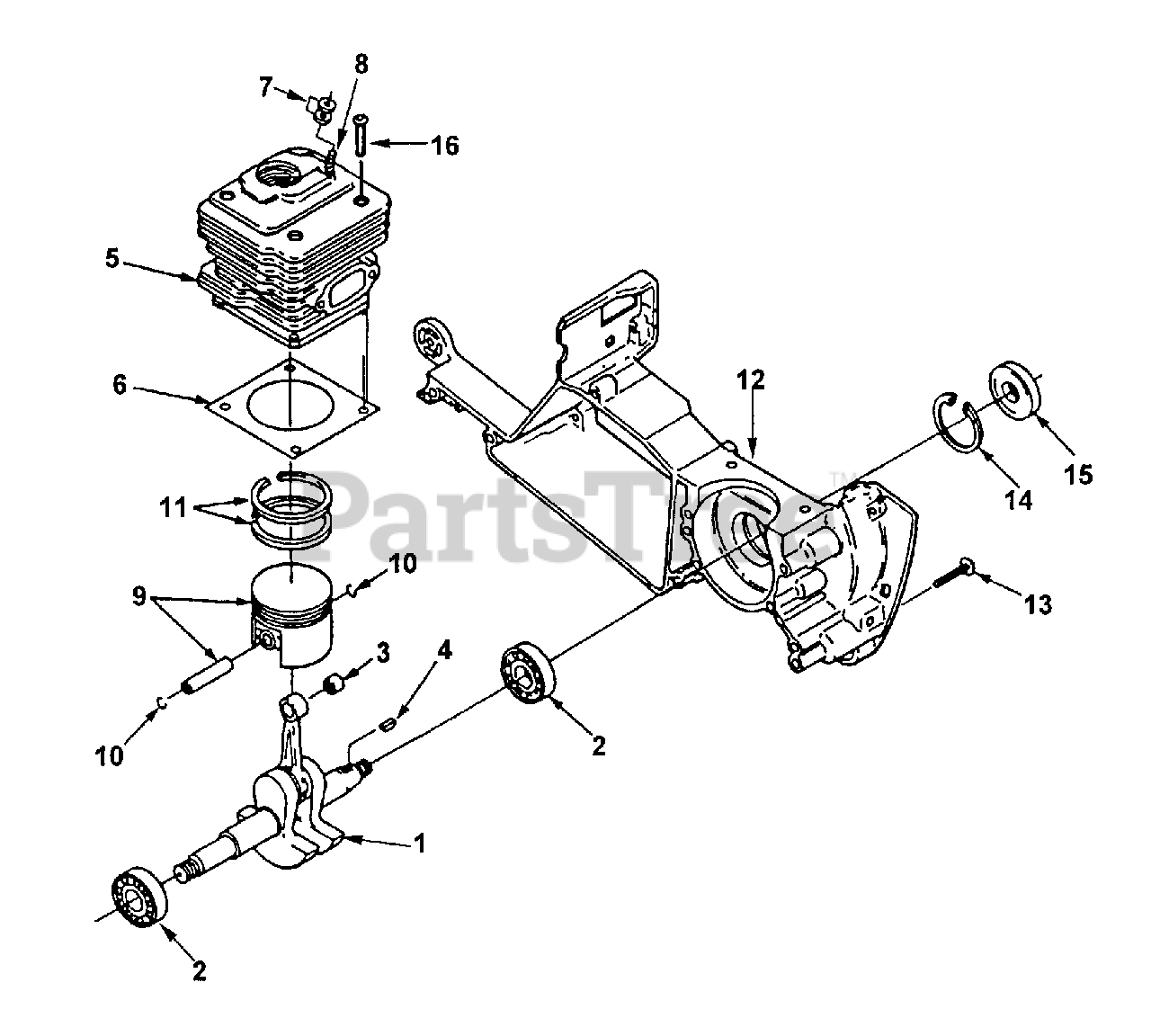

MP 38 (UT-05079) - Homelite 14" Multi Purpose Saw Engine Internal Parts Diagram

14" Multi Purpose Saw

Engine Internal Parts Diagram

  • Title

1

Homelite A03883

CRANKSHAFT
(Superseded to UP07132)

Note: (Includes 2 & 3)

$

$

Not available

2

Homelite 987971

BEARING-Ball
(Superseded to 98797)

$

$

Not available

3

Homelite 02151A

BEARING-Piston Pin
(Superseded to UP07200)

$

$

Not available

4

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

5

Homelite A03881

CYLINDER & PISTON ASSEMBLY

Note: (Includes 6-11)

$

$

Not available

6

Homelite 01568

GASKET-Cylinder

$

$

Not available

7

Homelite 02425

SPACER

$

$

Not available

8

Homelite 02346

STUD-(10-24 X 1 1/4")

$

$

Not available

9

Homelite A01273

PISTON (1.890 Dia.)

Note: (Includes 10-11)

$

$

Currently unavailable

10

Homelite 02161

RING-Retaining

$

$

Not available

11

Homelite 02162

RING-Piston
(Superseded to UP06653)

$

$

Not available

12

Homelite A02272B

CRANKCASE
(Superseded to UP07150)

Note: (Includes 13)

$

$

Not available

13

Homelite 82556

SCREW-Truss Hd. (10-24 X 1 1/4")

Note: (Torque Specs 55 In/Lbs, 6.2 Nm, Loctite Required RED 262

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 289221

RETAINER-Bearing

$

$

Not available

15

Homelite 98197A

SEAL-Main
(Superseded to UP06470)

$

$

Not available

16

Homelite 82580

SCREW-Pan Hd (12-24 x 3/4")
(Superseded to 825801)

Note: (Torque Specs 85 In/Lbs, 9.6 Nm, Loctite Required RED 262

$

$

Not available
