MP 425 (41AD425C095) - MTD Pro String Trimmer Boom Parts Diagram

Pro String Trimmer

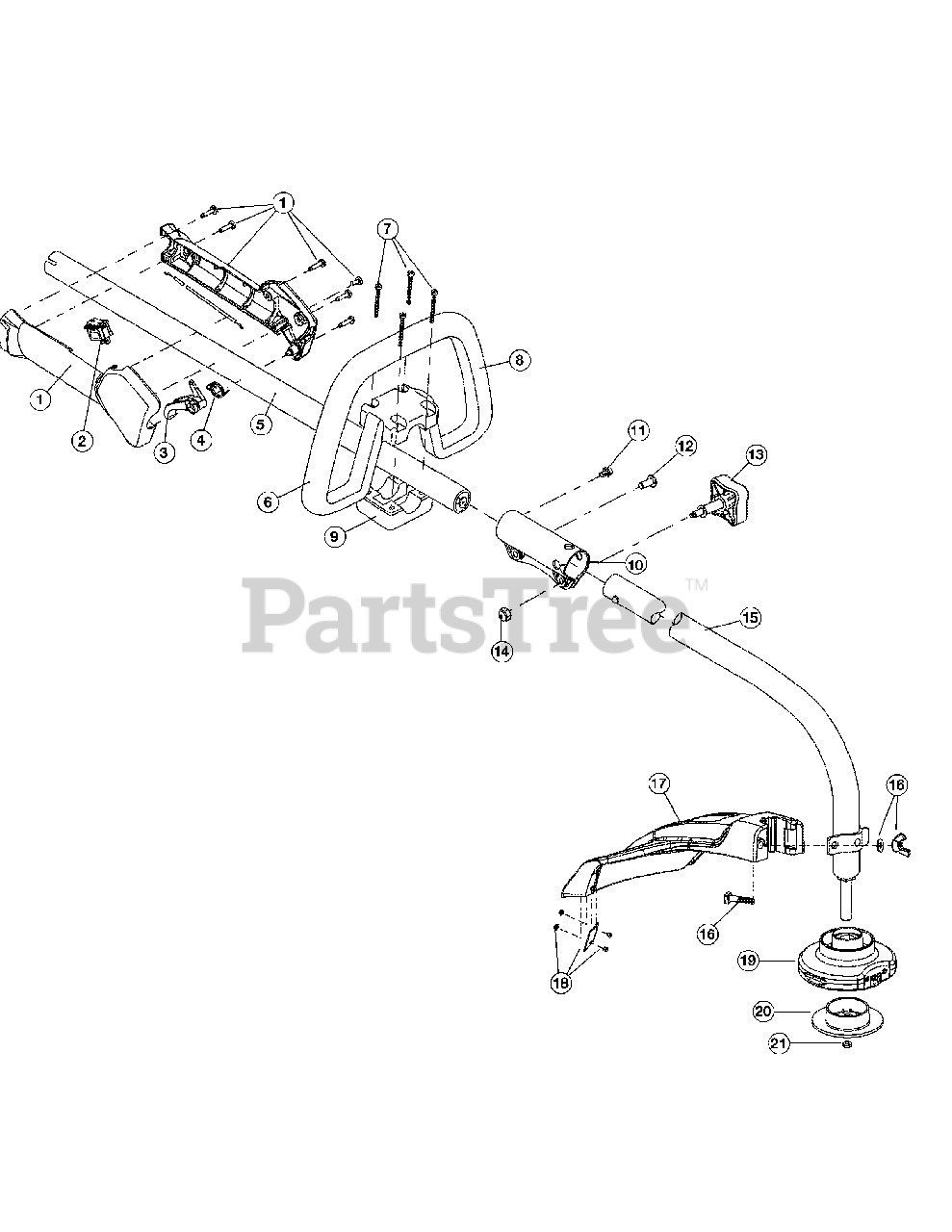

Boom Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

3

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

4

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

5

MTD 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

6

MTD 791-180869

Deluxe D-Handle Assembly (Incl. 7-9)

$

$

Not available

7

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

8

MTD 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

9

MTD 753-05009

Deluxe D-Handle Base

$6.99

$

Usually ships in 3-6 days

0

10

MTD 753-1190

Split Boom Coupler (Incl. 11-14)

$21.99

$

In Stock, only 4 left!

0

11

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

12

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

13

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

14

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

15

MTD 753-04508

Lower Drive Shaft Housing Assembly

$76.99

$

In Stock, Qty 8

0

16

MTD 753-04282

Guard Mounting Hardware

$23.99

$

In Stock, only 3 left!

0

17

MTD 753-04283

Guard Assembly (Incl. 18)

$47.99

$

In Stock, only 4 left!

0

18

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

19

MTD 753-05495

Fixe Line Head Assembly (Incl. 20 & 21)

$

$

Not available

20

MTD 731-05714

Glide Cap

$16.99

$

In Stock, Qty 10

0

21

MTD 712-04018A

Locknut

$4.49

$

In Stock, Qty 6

0

MTD 796-00029

Tube of Line

Note: (Not shown)

$17.99

$

Usually ships in 3-6 days

0
