MP 425 (41BD425C995) - MTD Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

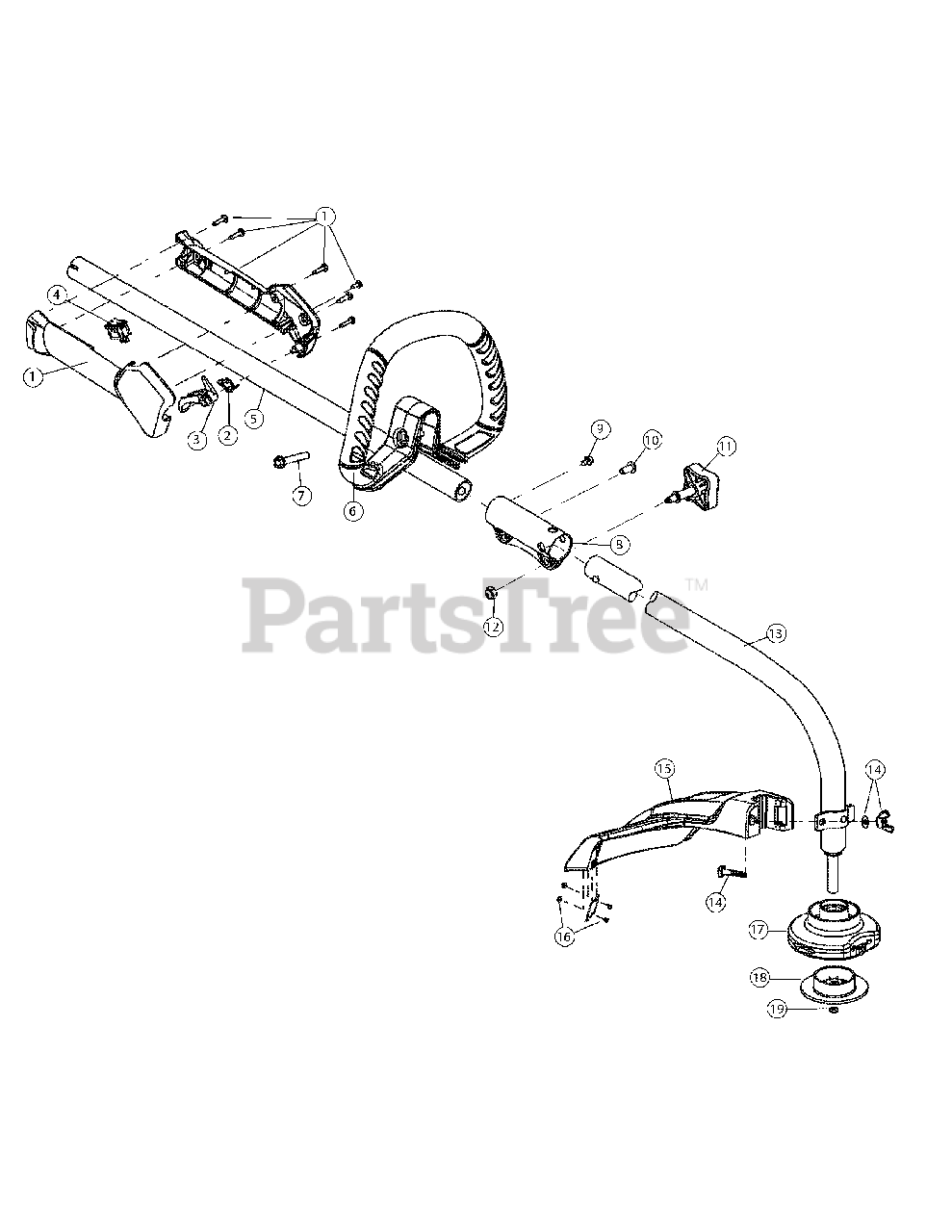

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly

$22.99

$

In Stock, only 2 left!

0

2

MTD 791-182690

Throttle Trigger Spring

$8.49

$

In Stock, only 2 left!

0

3

MTD 753-04119

Throttle Trigger

$7.99

$

In Stock, Qty 7

0

4

MTD 791-182405

Switch

$11.99

$

In Stock, only 3 left!

0

5

MTD 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

6

MTD 753-06039

D-Handle Assembly

$11.99

$

In Stock, only 2 left!

0

7

MTD 753-06040

Bolt

$7.49

$

In Stock, Qty 15

0

8

MTD 753-1190

Split boom Coupler

$24.99

$

In Stock, Qty 7

0

9

MTD 791-182057

Screw

$4.99

$

In Stock, Qty 20+

0

10

MTD 791-181617

Bolt

$5.99

$

In Stock, Qty 8

0

11

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

Usually ships in 3-6 days

0

12

MTD 712-04018A

Knob Retaining Nut

$4.99

$

In Stock, only 3 left!

0

13

MTD 753-04508

Lower Drive Shaft Housing Assembly

$85.99

$

In Stock, only 2 left!

0

14

MTD 753-04282

Guard Mounting Hardware

$27.99

$

In Stock, only 3 left!

0

15

MTD 753-04283

Guard Assembly

$54.99

$

In Stock, only 1 left!

0

16

MTD 791-180553

Blade Assembly

$15.99

$

In Stock, Qty 5

0

17

MTD 753-05495

Fixed Line Head Assembly

$

$

Not available

18

MTD 731-05714

Glide Cap

$17.99

$

In Stock, only 2 left!

0

19

MTD 712-04018A

Locknut

$4.99

$

In Stock, only 3 left!

0

MTD 796-00029

Tube of Line

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0
