MP 475 (41CD475D995) - MTD Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

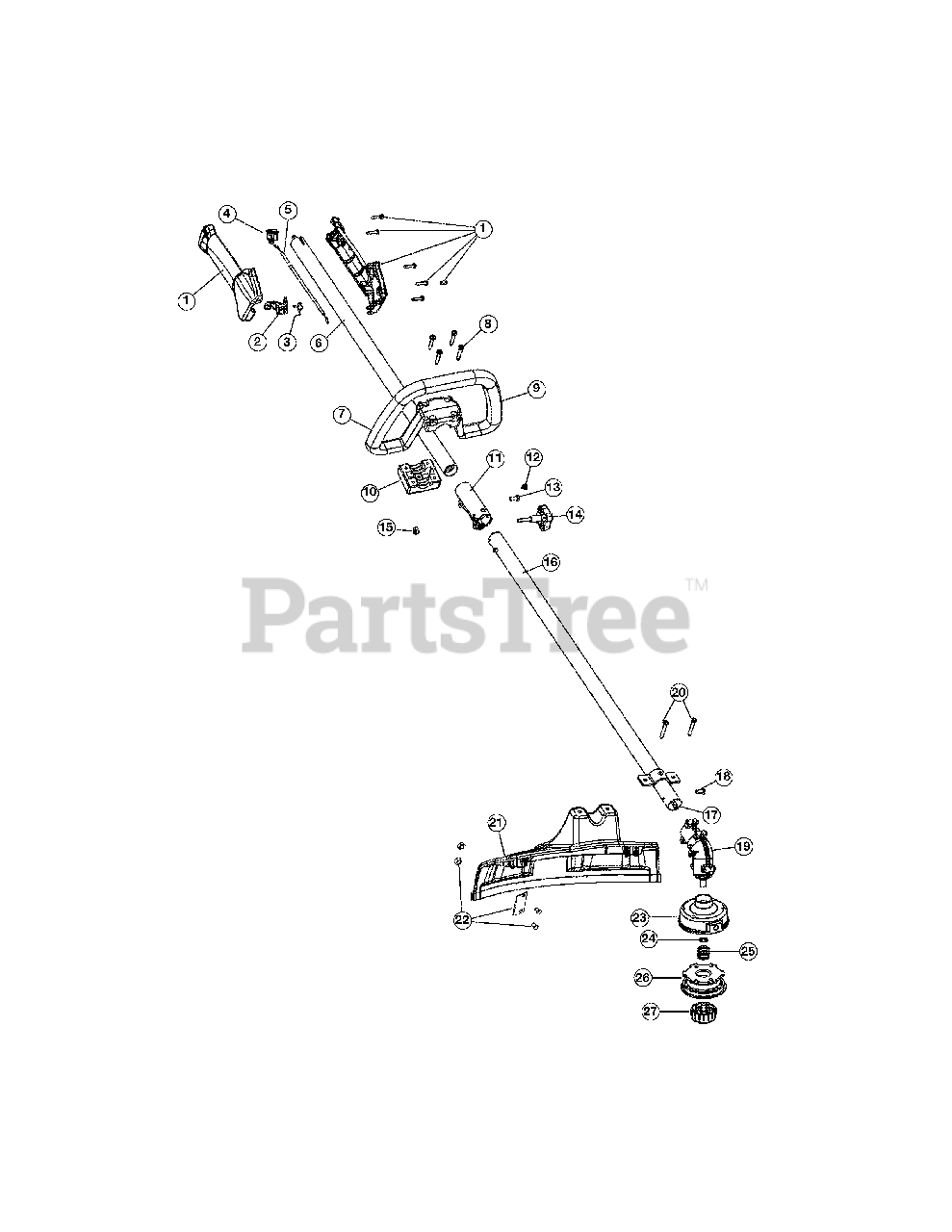

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. Ref No. 2-4)

$19.99

$

In Stock, Qty 20+

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

4

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-05266

Throttle Cable Assembly

$19.99

$

In Stock, Qty 20+

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

7

MTD 791-180869

Deluxe D-Handle Assembly (Incl. Ref No. 8-10)

$

$

Not available

8

MTD 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

9

MTD 791-182167

D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

MTD 791-182168

Bottom Clamp

$

$

Not available

11

MTD 791-181616B

Split Boom Coupler (Incl. Ref No. 12-15)
(Superseded to 753-1190)

$21.99

$

In Stock, Qty 5

0

12

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 15

0

13

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

14

MTD 791-181618B

Adjustment Knob (Incl. Ref No. 15)
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

15

MTD 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

16

MTD 753-08164

Lower Drive Shaft Housing Assembly

$19.99

$

In Stock, Qty 20+

0

17

MTD 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 13

0

18

MTD 7039

Anti-Rotation Screw

$4.49

$

In Stock, Qty 10

0

19

MTD 753-06140

Gear Box Assembly (Incl. Ref No. 18 & 23-27)
(Superseded to 753-06571)

$42.99

$

In Stock, Qty 18

0

20

MTD 753-06125

Shield Mounting Screws

$6.49

$

In Stock, Qty 8

0

21

MTD 753-06123

Shield Assembly (Incl. Ref No. 22)

$19.99

$

In Stock, Qty 16

0

22

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

23

MTD 753-04284

Outer Spool Assembly

$26.99

$

In Stock, Qty 20+

0

24

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

25

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

26

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

27

MTD 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 953-1156

Reel & Line Assembly

Note: Not shown

$31.99

$

In Stock, Qty 8

0

MTD 791-682075B

Shoulder Strap

Note: Not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 753-05778

Fixed Line Insert

Note: Not shown

$7.49

$

Usually ships in 3-6 days

0
