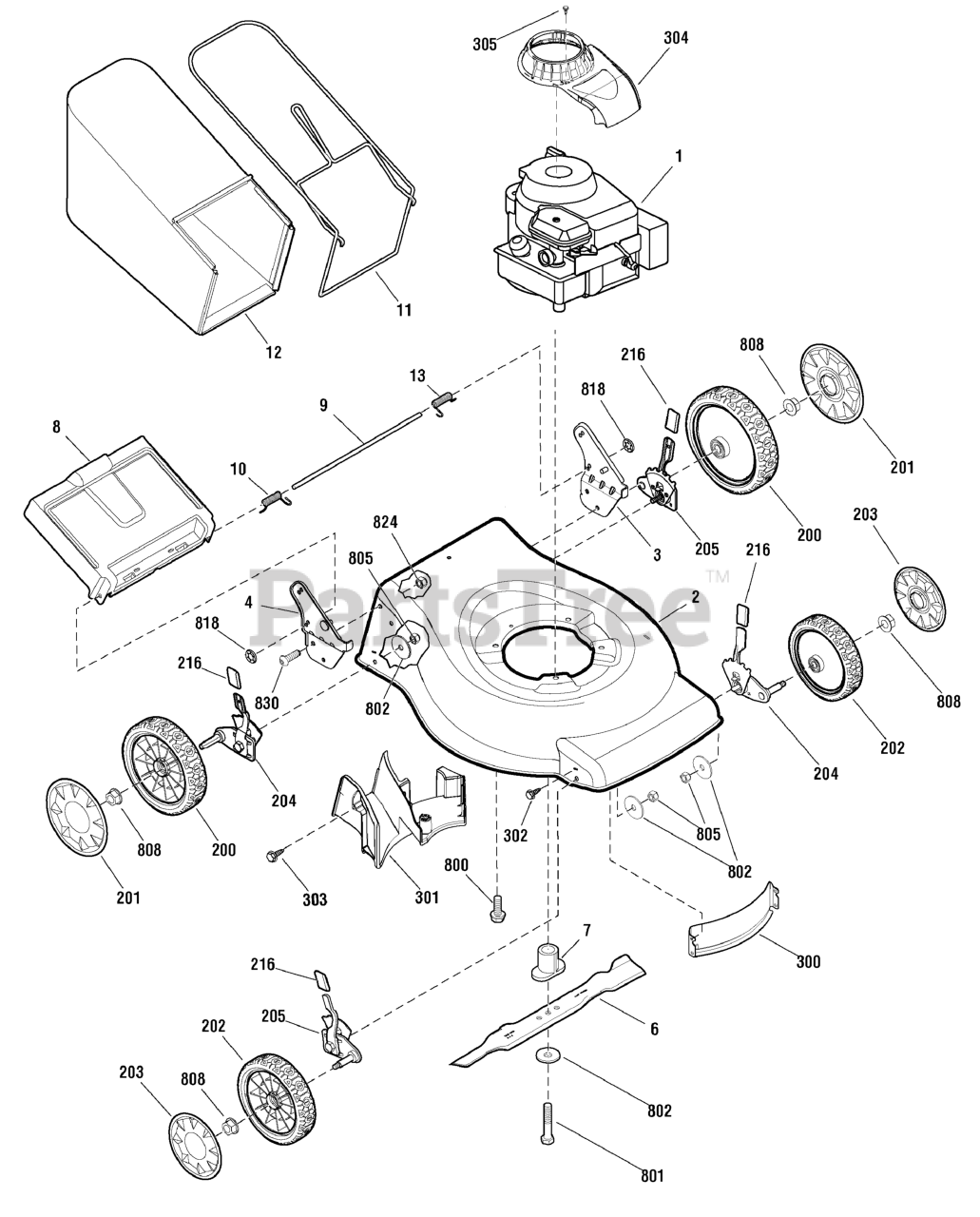

MP 500 (881022) - Murray 19" Walk-Behind Mower, Canada (2010) Deck & Engine Group Parts Diagram

19" Walk-Behind Mower, Canada

Deck & Engine Group Parts Diagram

  • Title

1

Murray 10T602-0120-B1

* ENGINE, Briggs & Stratton 500 Series

Note: (Engine Model: 10T602-0120-B1)

$

$

Currently unavailable

1

Murray 10T602-0193-H1

* ENGINE, Briggs & Stratton 500 Series

Note: (Engine Model: 10T602-0193-H1)

$

$

Currently unavailable

2

Murray 881115BIYP

MOWER HOUSING

Note: (Includes Ref. Nos. 300 & 302)

$211.99

$

Usually ships in 2-12 days

0

3

Murray 880951AYP

BRACKET ASSEMBLY, Left Handle

$20.99

$

Usually ships in 2-12 days

0

4

Murray 880950AYP

BRACKET ASSEMBLY, Right Handle

$20.99

$

Usually ships in 2-12 days

0

6

Murray 880638YP

BLADE, 19 Inch
(Superseded to 880638BZYP)

$27.99

$

In Stock, only 2 left!

0

7

Murray 880009YP

BLADE ADAPTER ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

8

Murray 880671YP

DOOR, Rear

$44.99

$

Usually ships in 2-12 days

0

9

Murray 880214YP

ROD, Rear Door

$11.99

$

Usually ships in 2-12 days

0

10

Murray 880942YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

11

Murray 880941BNYP

FRAME ASSEMBLY
(Superseded to 880941BMYP)

Note: (Red)

$175.99

$

Usually ships in 2-12 days

0

11

Murray 880941ZYP

FRAME ASSEMBLY
(Superseded to 880941BMYP)

Note: (Black)

$175.99

$

Usually ships in 2-12 days

0

12

Murray 880938YP

BAG ASSEMBLY

$76.99

$

Usually ships in 2-12 days

0

13

Murray 880943YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

200

Murray 880704YP

WHEEL, Rear
(Superseded to 880194YP)

$

$

Not available

201

Murray 880699YP

HUBCAP, Rear

$14.99

$

Usually ships in 2-12 days

0

202

Murray 880703YP

WHEEL, Front

$36.99

$

Usually ships in 2-12 days

0

203

Murray 880698YP

HUBCAP, Front

$9.49

$

Usually ships in 2-12 days

0

204

Murray 881046YP

HEIGHT ADJUSTER ASSEMBLY, Left

$24.99

$

Usually ships in 2-12 days

0

205

Murray 881045YP

HEIGHT ADJUSTER ASSEMBLY, Right

$24.99

$

Usually ships in 2-12 days

0

216

Murray 880542YP

GRIP, Height Adjustment

$

$

Not available

300

Murray 880784BIYP

BAFFLE, Front, 19

$47.99

$

Usually ships in 2-12 days

0

301

Murray 880785YP

BAFFLE, Rear, 19

$64.99

$

Usually ships in 2-12 days

0

302

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$4.49

$

Usually ships in 2-12 days

0

303

Murray 880804YP

SCREW, Pan Head, Taptite, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

304

Murray 699796

SHROUD

$68.99

$

Usually ships in 2-12 days

0

305

Murray 95890YP

SCREW, Hex Washer Head

$3.49

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.99

$

Usually ships in 2-12 days

0

801

Murray 880034YP

BOLT, Blade, 3/8-24 x 2

$4.49

$

Usually ships in 2-12 days

0

802

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

805

Murray 880020YP

NUT, Nylock, M8 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

818

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 16

0

824

Murray 015X88MA

NUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

830

Murray 48901MA

SCREW , 5/16-18 x 3/4

$3.99

$

Usually ships in 2-12 days

0

1000

Murray 700269YP

DECAL KIT

$14.99

$

Usually ships in 2-12 days

0
