MP 88 (UT-05074-A) - Homelite 14" Multi Purpose Saw Engine Housing Parts Diagram

14" Multi Purpose Saw

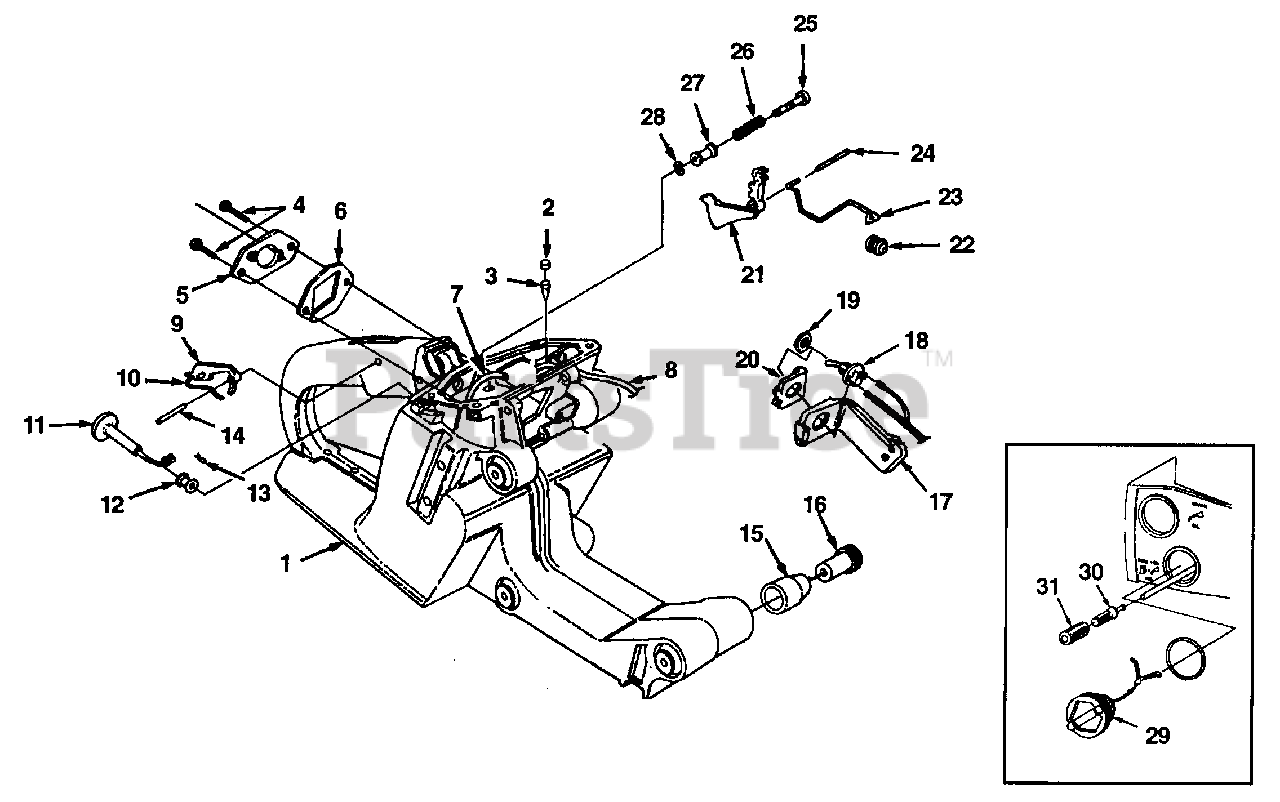

Engine Housing Parts Diagram

  • Title

1

Homelite A49770A

HOUSING - Engine

$

$

Not available

2

Homelite 93410A

TANK VENT FILTER
(Superseded to UP08023)

$

$

Currently unavailable

3

Homelite 96841

VALVE - Duck Bill
(Superseded to UP07204)

$

$

Not available

4

Homelite 96620

SCREW - Torx Truss (10-24 X 1/2")

Note: Torque Specs: 50-60 In/Lbs, 5.6-6.7 Nm; 262 Red Required Locktite

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 972902A

ADAPTOR - Carburetor
(Superseded to UP07159)

$16.99

$

Usually ships in 3-7 days

0

6

Homelite PS97291

GASKET - Carburetor

$

$

Not available

7

Homelite 9311237

TUBING - Rubber (Fuel Line, 9 1/2")

$9.99

$

Usually ships in 3-7 days

0

8

Homelite 9315723

TUBING - Rubber (Pulse Line, 6 1/2")

$

$

Not available

9

Homelite 93385A

TRIGGER - Lock

$

$

Not available

10

Homelite PS97265

SPRING - Flat

$

$

Not available

11

Homelite 972921

ROD - Choke
(Superseded to UP06645)

$

$

Not available

12

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

13

Homelite 86324

PIN - Cotter

$

$

Not available

14

Homelite 68548

PIN - Trigger

$

$

Not available

15

Homelite 973052

ISOLATOR - Vibration

$

$

Not available

16

Homelite PS97262

SLEEVE - Flanged
(Superseded to UP05586)

$

$

Not available

17

Homelite PS97306A

COVER, Switch
(Superseded to UP07032)

$

$

Not available

18

Homelite A57650A

SWITCH - Toggle

$14.99

$

Usually ships in 3-7 days

0

19

Homelite 72084A1

NUT - Hex
(Superseded to UP04146)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 12793

PLATE - Indicating
(Superseded to UP07113)

$

$

Not available

21

Homelite 93842

TRIGGER - Throttle

$

$

Not available

22

Homelite 69889

BOOT - Throttle Rod

$

$

Not available

23

Homelite 97294A

ROD - Throttle
(Superseded to UP06465)

$

$

Not available

24

Homelite 68548

PIN - Trigger

$

$

Not available

25

Homelite 95671

PIN - Throttle Lock
(Superseded to UP05997)

$2.49

$

In Stock, only 2 left!

0

26

Homelite 95020

SPRING - Compression
(Superseded to UP04716)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 95989

BUSHING - Flanged
(Superseded to UP06854)

$

$

Not available

28

Homelite 58409

RING - Retaining

$4.49

$

Usually ships in 3-7 days

0

29

Homelite A03131

FUEL CAP
(Superseded to UP05970)

$

$

Not available

30

Homelite A97700

FUEL FILTER
(Superseded to UP06516)

$

$

Not available

31

Homelite 592531A

FILTER ELEMENT

$6.99

$

Usually ships in 3-7 days

0
