MP 88 (UT-05074-A) - Homelite 14" Multi Purpose Saw Engine Internal Parts Diagram

14" Multi Purpose Saw

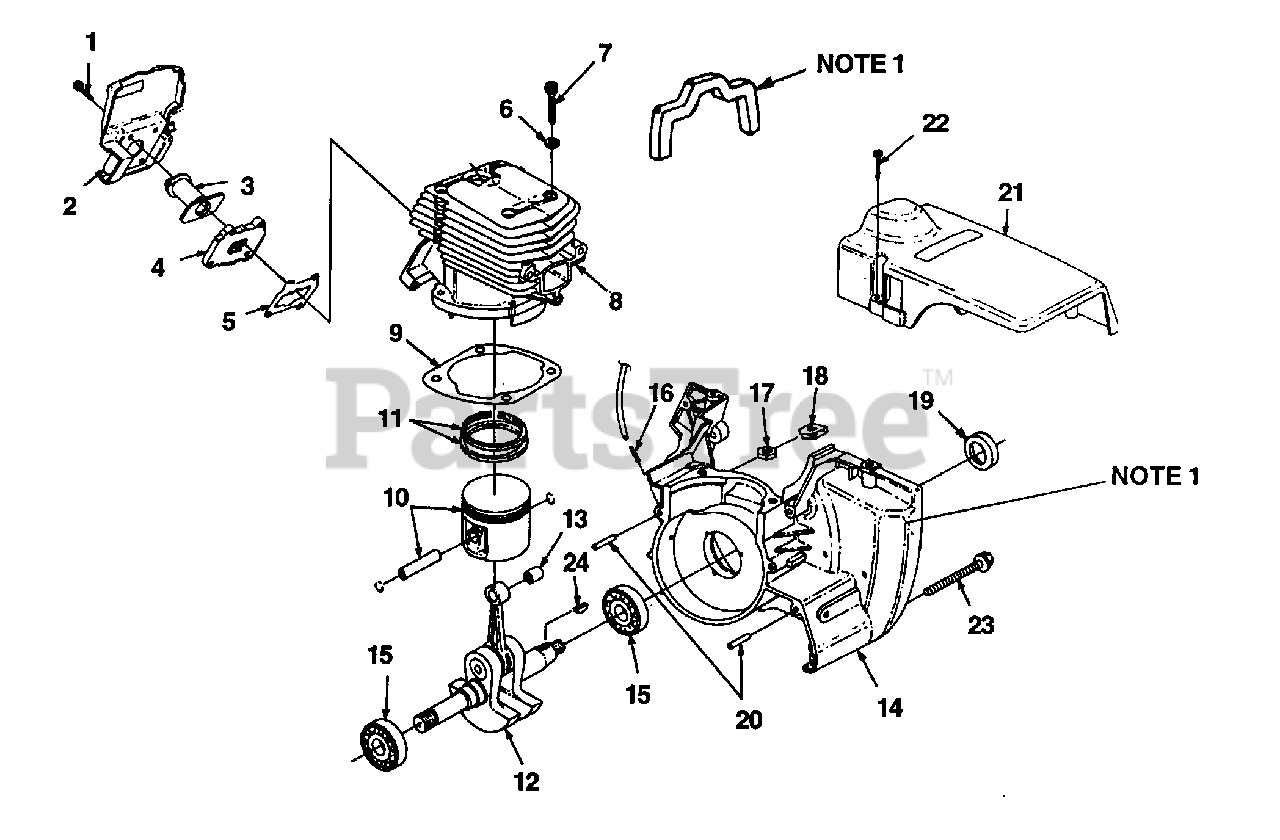

Engine Internal Parts Diagram

  • Title

1

Homelite 82246

SCREW - Mach. Hex Hd. (10-24 X 1")

Note: Torque Specs: 20-30 In/Lbs; 2.3-3.4 Nm; 262 Red Required Loctite

$

$

Not available

2

Homelite 973381A

BAFFLE - Cylinder
(Superseded to UP08018)

$

$

Not available

3

Homelite 972632

BOOT - Intake

$

$

Not available

4

Homelite 02822

ADAPTER - Intake

$

$

Not available

5

Homelite 04635

GASKET - Intake

$

$

Not available

6

Homelite 12021

WASHER - Conical (#10)

$

$

Not available

7

Homelite 82246

SCREW - Cap Socket (10-24 X 1")

Note: Torque Specs: 80-90 In/Lbs; 9.0-10.2 Nm; 262 Red Required Loctite

$

$

Not available

8

Homelite A02830A

CYLINDER & PISTON (Matched)

$

$

Not available

9

Homelite PS97316

GASKET - CYLINDER

$3.49

$

Usually ships in 3-7 days

0

10

Homelite A028241B

PISTON & PIN ASSY.

$

$

Not available

11

Homelite 02825

PISTON RING

$22.99

$

Usually ships in 3-7 days

0

12

Homelite A03737

CRANKSHAFT & ROD
(Superseded to UP07129)

$

$

Not available

13

Homelite 93519

BEARING - Needle

$

$

Not available

14

Homelite A08391

CRANKCASE ASSY.

Note: (See "Clutch - Crankcase" illustration and parts list item 11)

$

$

Currently unavailable

15

Homelite 94621A

BEARING - Ball
(Superseded to UP06853)

$

$

Not available

16

Homelite 69833

FITTING - Tube

$

$

Not available

17

Homelite 81208

NUT - Lock Hex (10-24)

$

$

Not available

18

Homelite 12689A

NUT - Retainer

$

$

Not available

19

Homelite 58308B

SEAL - Shaft
(Superseded to UP07021)

$

$

Not available

20

Homelite PS31062

PIN - Dowel
(Superseded to UP07031)

$

$

Not available

21

Homelite A02121

COVER - CYLINDER
(Superseded to 97256)

$

$

Not available

22

Homelite 93397A

SCREW - CYLINDER COVER

Note: Torque Specs: Hand Tight

$

$

Currently unavailable

23

Homelite 88057

SCREW - Hex Sems (10-24 X 2")
(Superseded to UP05817)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 75078

KEY - Woodruff
(Superseded to UP07068)

$

$

Not available

Note1

Homelite A03611A

Foam Kit
(Superseded to UP07128)

$

$

Not available
