MP 88 (UT-05074-A) - Homelite 14" Multi Purpose Saw Starter - Ignition Parts Diagram

14" Multi Purpose Saw

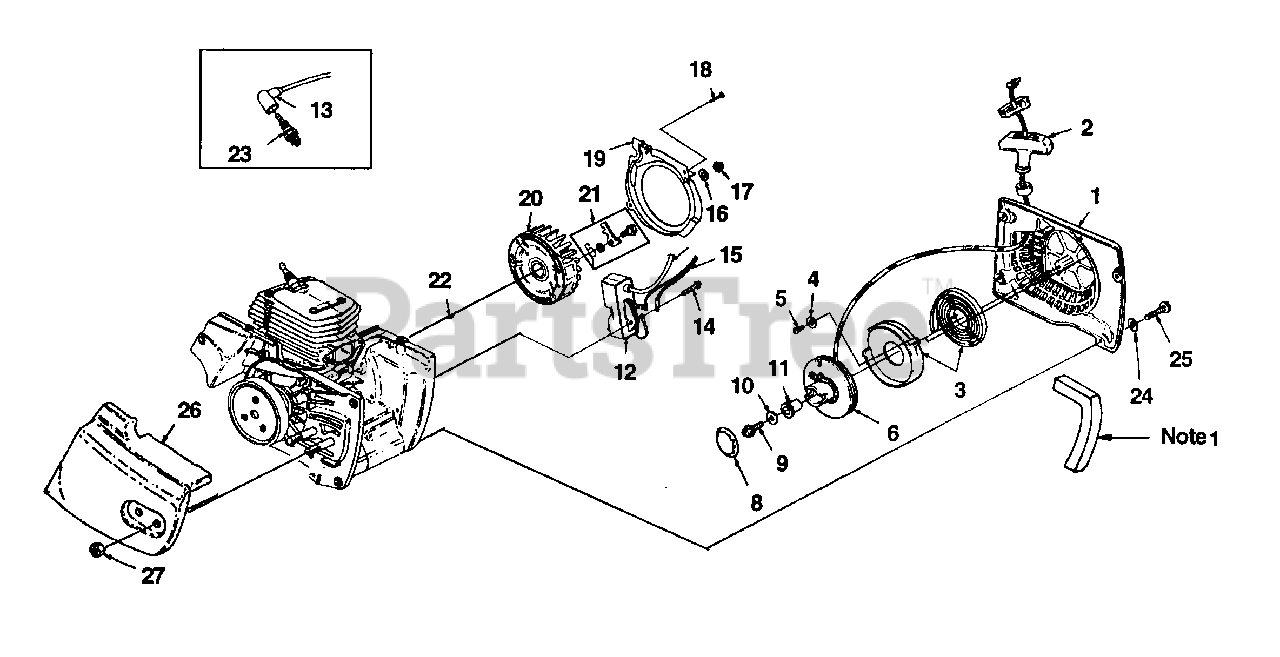

Starter - Ignition Parts Diagram

  • Title

1

Homelite A02292A

STARTER COMPLETE
(Superseded to UP07154)

$

$

Not available

2

Homelite A69962B

GRIP - w/Insert

$11.99

$

Usually ships in 3-7 days

0

3

Homelite A98067A

SPRING & RETAINER

$24.99

$

Usually ships in 3-7 days

0

4

Homelite 84025

WASHER - Flat (#8)

$

$

Not available

5

Homelite 82528

SCREW - Thread Form (6 X 3/8")

Note: Torque Specs 8-12 In/Lbs, 9-1.4 Nm

$1.49

$

Usually ships in 3-7 days

0

6

Homelite A97990C

PULLEY & ROPE
(Superseded to UP07034)

$

$

Not available

?7

Homelite A00518

ROPE
(Superseded to 93418)

$

$

Currently unavailable

8

Homelite 02505

SPRING - Grip

$

$

Not available

9

Homelite 82409

SCREW - Plastite (10-14 X 5/8")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm

$

$

Not available

10

Homelite 58763

WASHER - Retaining

$

$

Not available

11

Homelite 97992A

BUSHING - Starter Post
(Superseded to UP07218)

$

$

Not available

12

Homelite A01827

MODULE ASSY

$

$

Currently unavailable

13

Homelite A33055

TERMINAL - Spark Plug

$

$

Not available

14

Homelite 82562

SCREW - Hex Hd (10-24 X 7/8")
(Superseded to UP06535)

Note: Torque Specs 50-60 In/Lbs, 5.6-6.8 Nm; 262 Red Required Locktite

$

$

Not available

15

Homelite A985831D

LEAD - Ground w/Grommet
(Superseded to UP07036)

$

$

Not available

16

Homelite 95479A

WASHER - Flat

$

$

Not available

17

Homelite 81255

NUT - Lock Hex (3/8-24)

$

$

Not available

18

Homelite 80582

SCREW - Mach (8-32 X 5/8")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm

$

$

Not available

19

Homelite 02133

SCROLL - Air Guide

$

$

Not available

20

Homelite A02085B

ROTOR
(Superseded to UP05951)

$

$

Not available

21

Homelite A03610

STARTER PAWL KIT

$

$

Not available

22

Homelite 75078

KEY - Woodruff
(Superseded to UP07068)

$

$

Not available

23

Homelite 98217S

SPARK PLUG (RCJ6Y)
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

24

Homelite 84003

WASHER - Flat (#10)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 82562

SCREW - Pan Hd (10-24 X 5/8")
(Superseded to UP06535)

Note: Torque Specs 40-50 In/Lbs. 4.5-5.6 Nm

$

$

Not available

26

Homelite 478695A

COVER - Drivecase
(Superseded to 478695)

$

$

Not available

27

Homelite 810892

NUT - (3/8-16 x 5/16")

$7.99

$

Usually ships in 3-7 days

0

Note1

Homelite A03611A

Foam Kit
(Superseded to UP07128)

$

$

Not available
