MPD 18450 (866072-00) - Snapper 18" Walk-Behind Mower Deck & Engine Group Parts Diagram

18" Walk-Behind Mower

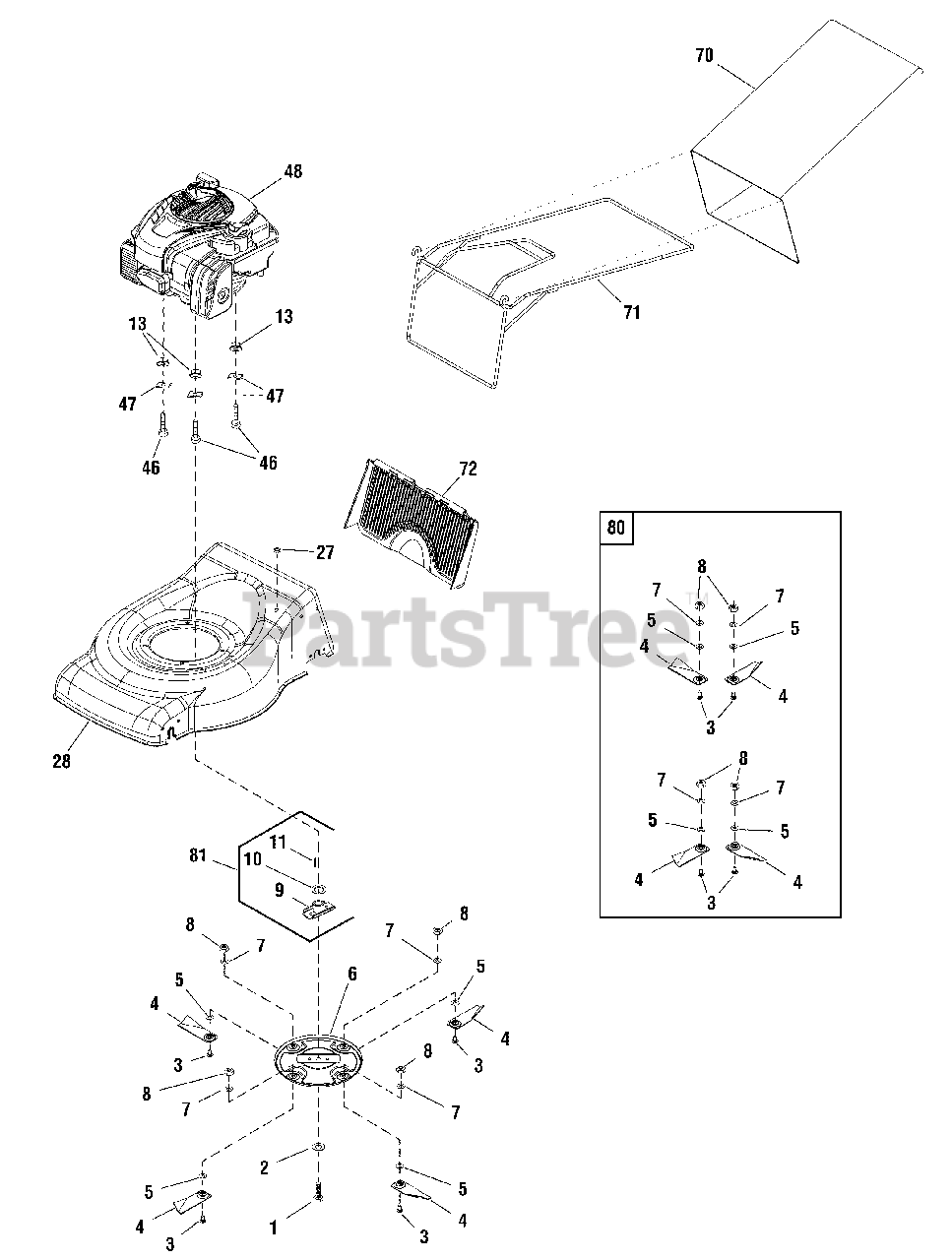

Deck & Engine Group Parts Diagram

  • Title

1

Snapper 704480

BOLT, Blade

$5.49

$

Usually ships in 2-12 days

0

2

Snapper 704474

WASHER

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 704481

BOLT, Blade

$6.49

$

Usually ships in 2-12 days

0

4

Snapper 704482

BLADE

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 704483

WASHER, Blade

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 704484

BLADE DISC

$68.99

$

Usually ships in 2-12 days

0

7

* WASHER, Flat

$

$

Not available

8

* NUT, Hex Lock

$

$

Not available

9

Snapper 704485

SUPPORT, Blade

$

$

Currently unavailable

10

Snapper 704486

SLEEVE, Blade Support

$

$

Currently unavailable

11

Snapper 704487

KEY

$

$

Currently unavailable

13

* NUT, Hex Lock

$

$

Not available

27

Snapper 704500

GROMMET

$

$

Currently unavailable

28

Snapper 704501

DECK

$326.99

$

Usually ships in 2-12 days

0

46

* BOLT, Hex

$

$

Not available

47

Snapper 704561

WASHER, Square

$

$

Currently unavailable

48

** ENGINE, Briggs & Stratton 450E Series

$

$

Not available

70

Snapper 704529

BAG, Grass

$91.99

$

Usually ships in 2-12 days

0

71

Snapper 704530

FRAME

$

$

Currently unavailable

72

Snapper 704531

COVER, Rear

$69.99

$

Usually ships in 2-12 days

0

80

Snapper 705904

KIT, Blade

Note: (Includes Ref. Nos. 3, 4, 5, 7 & 8)

$

$

Currently unavailable

81

Snapper 705905

KIT, Blade Adapter

Note: (Includes Ref. Nos. 9, 10 & 11)

$19.99

$

Usually ships in 2-12 days

0
