MPH 625 E (881548) - Murray 19" Walk-Behind Mower, Canada (2012) Height of Cut Group (881573) Parts Diagram

19" Walk-Behind Mower, Canada

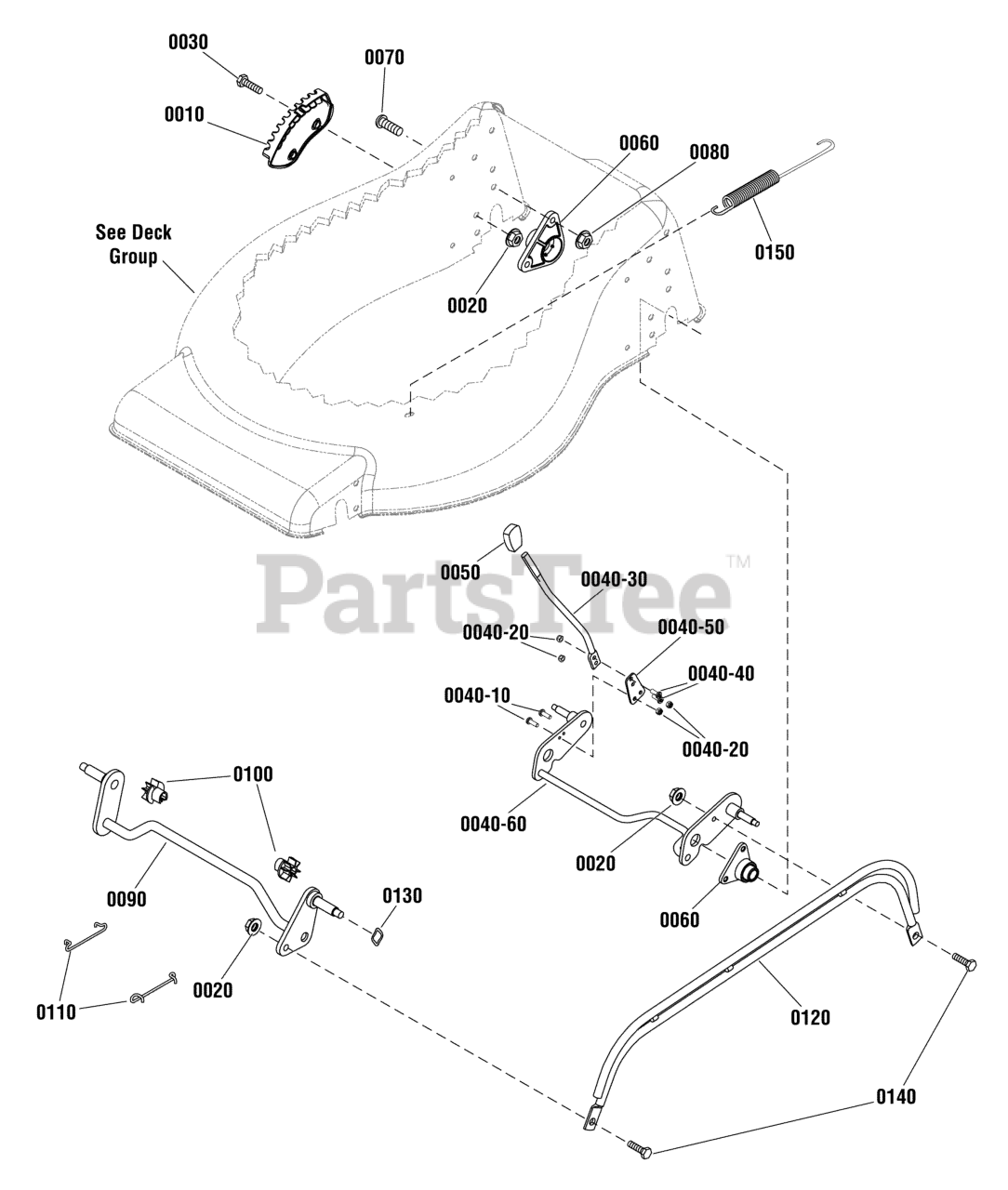

Height of Cut Group (881573) Parts Diagram

  • Title

0010

Murray 880959YP

INDEX BRACKET

$6.49

$

Usually ships in 2-12 days

0

0020

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0030

Murray 22142GS

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0040-10

Murray 880339YP

SCREW, Torx Head

$3.99

$

In Stock, only 4 left!

0

0040-20

Murray 880428YP

NUT, Nylock, M5 X 0.8

$3.99

$

Usually ships in 2-12 days

0

0040-30

Murray 880540YP

LEVER, Height Adjust

$7.99

$

In Stock, only 2 left!

0

0040-40

Murray 880577YP

SCREW, Torx, M5 - 0.8 x 12.5

$3.99

$

In Stock, only 4 left!

0

0040-50

Murray 880642YP

SPRING, Height Adjustment

$5.99

$

In Stock, only 2 left!

0

0040-60

Murray 880861BIYP

CROSSBAR, Rear

$

$

Currently unavailable

0050

Murray 881059YP

KNOB, Adjuster

$5.49

$

In Stock, only 2 left!

0

0060

Murray 880786YP

RETAINER, Ball Bearing

$7.99

$

Usually ships in 2-12 days

0

0070

Murray 880845YP

SCREW, Torx Truss Head, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

0080

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 880550YP

CROSSBAR ASSEMBLY, Front

$38.99

$

Usually ships in 2-12 days

0

0100

Murray 880050YP

BUSHING, Front

$4.99

$

Usually ships in 2-12 days

0

0110

Murray 881163YP

SPRING CLIP, Crossbar

$8.99

$

In Stock, Qty 8

0

0120

Murray 881174AYP

LIFTER LINK

$31.99

$

Usually ships in 2-12 days

0

0130

Murray 7026257MA

WASHER, Wave, 1/2

$4.49

$

In Stock, only 2 left!

0

0140

Murray 880651YP

BOLT, Shoulder, Hex Washer Head, 5/16-18 x 1 (3/4 Thread Length)

$3.99

$

Usually ships in 2-12 days

0

0150

Murray 880052YP

SPRING, Extension

$6.99

$

Usually ships in 2-12 days

0
