MQT15068KNSN - Generac 150kW Home Standby Generator (SN: 4301293 - 4717606) (2007) C5 Cooling System Fan Drive (0H2836) Parts Diagram

150kW Home Standby Generator

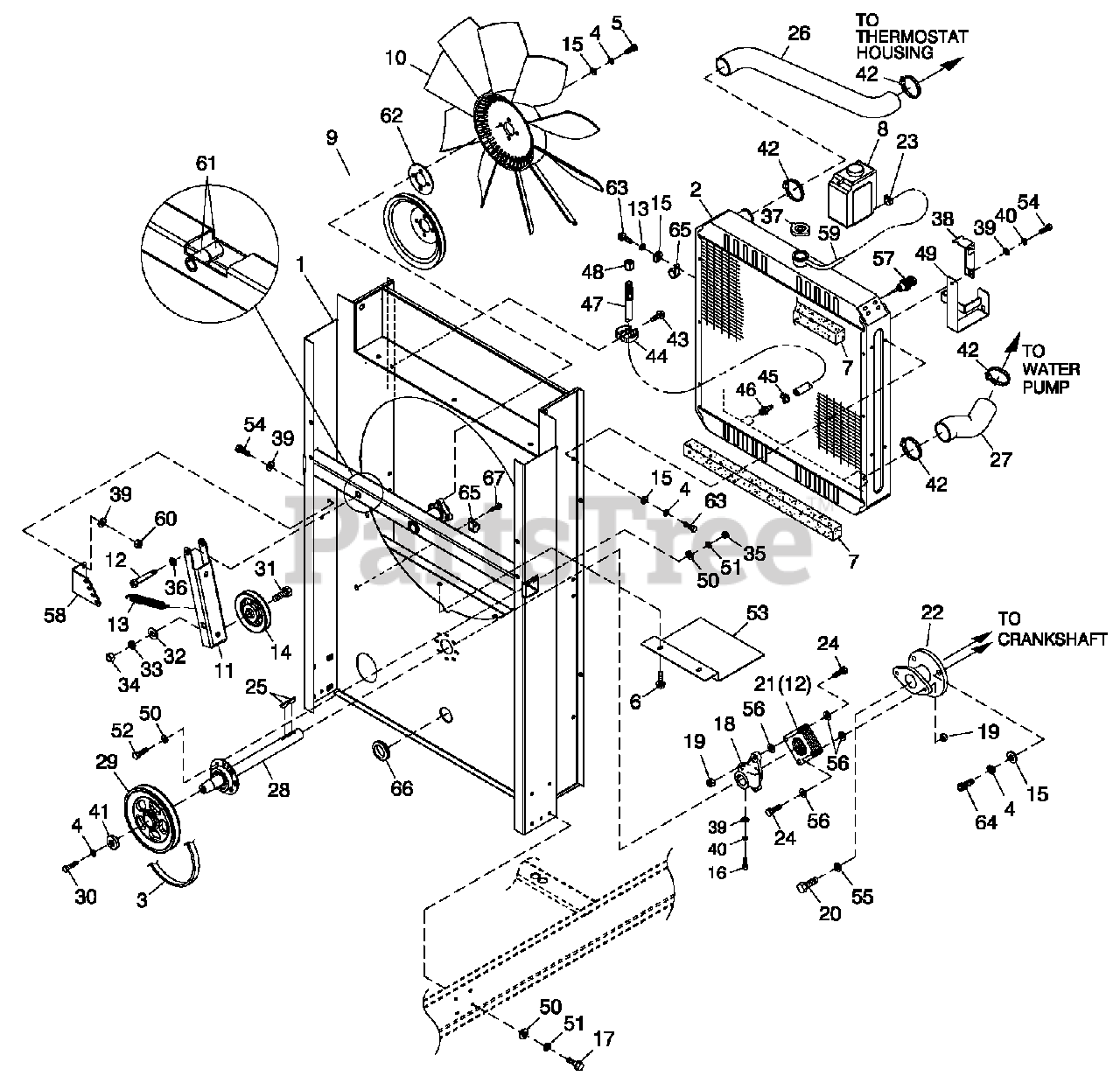

C5 Cooling System Fan Drive (0H2836) Parts Diagram

  • Title

1

Generac 0H20530ST03

WELDMENT RADIATOR SUPPORT C5

$1948.99

$

Usually ships in 2-12 days

0

2

Generac 0F2611

RADIATOR 680 X 680 X 70 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$2741.99

$

Usually ships in 2-12 days

0

3

Generac 0F5254

V-BELT 31/64" X 62-3/8"

$42.99

$

Usually ships in 2-12 days

0

Generac 0F7077

V-BELT 1/2" X 63-3/8" (6.8L, 100KW & 130KW)

$174.99

$

Usually ships in 2-12 days

0

4

Generac 046526

WASHER LOCK M10

$

$

Not available

5

Generac 059981

SCREW HHC M10-1.5 X 30 C10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

6

Generac 0C2454

SCREW THF M6-1 X 16 N W A Z/JS

$3.99

$

Usually ships in 2-12 days

0

7

Generac 052250

TAPE FOAM 1 X 1 (26.75" LG)

$

$

Not available

8

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$46.99

$

Usually ships in 2-12 days

0

9

Generac 0F2573

PULLEY FAN V-GROOVE 9"

$82.99

$

Usually ships in 2-12 days

0

10

Generac 0F2610

FAN 26" LH ROTATION

$256.99

$

Usually ships in 2-12 days

0

11

Generac 0H20620ST03

ARM BELTTENSIONER

$86.99

$

Usually ships in 2-12 days

0

12

Generac 0H2051

SHOULDER BOLT 1/2 X 2-1/4"

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$12.99

$

Usually ships in 2-12 days

0

13

Generac 0F2862

SPRING TENSION CPL

$11.99

$

In Stock, only 2 left!

0

14

Generac 0F2560

PULLEY V-BELT 4" FLANGED

$29.99

$

Usually ships in 2-12 days

0

15

Generac 022131

W ASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$1.49

$

Usually ships in 2-12 days

0

16

Generac 039287

SCREW HHC M 8-1.25X 45C 8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

17

Generac 0C8566

SCREW HHFC M 6-1.0X 20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$12.99

$

Usually ships in 2-12 days

0

18

Generac 0F2561

HUB FLEX PLATE

$62.99

$

Usually ships in 2-12 days

0

19

Generac 0C8165

NUT HEX LOCK 5/16-24 NY INS

$1.49

$

In Stock, only 1 left!

0

20

Generac 0D6795

SCREW HHC M 12-1.5X 60G 8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$19.99

$

Usually ships in 2-12 days

0

21

Generac 0C7043

DISK FLEX

Note: IF YOU NEED KIT ORDER P/N 0E33940SRV.KIT CONTAINS QTY-12 OF 0C7043.

$

$

Not available

22

Generac 0E8909

COUPLING HUB FLEX (MACH)

Note: IF THE HARMONIC BALANCER IS STAMPED WITH PART # 05C3E-A USE 0E8909 IF THE HARMONIC BALANCER IS STAMPED WITH 7C3E-6316-AA USE 0E8909A THE DIFFERENCE IS IN THE PILOT HOLE OF THE PULLY 0E8909 PILOT HOLE IS 57.05 TO 57.2 MM 0E8909A PILOT HOLE IS 59.05 TO 59.20

$285.99

$

Usually ships in 2-12 days

0

Generac 0E8909A

COUPLING HUB FLEX (MACHINING)

Note: IF THE HARMONIC BALANCER IS STAMPED WITH PART # 05C3E-A USE 0E8909 IF THE HARMONIC BALANCER IS STAMPED WITH 7C3E-6316-AA USE 0E8909A THE DIFFERENCE IS IN THE PILOT HOLE OF THE PULLY 0E8909 PILOT HOLE IS 57.05 TO 57.2 MM 0E8909A PILOT HOLE IS 59.05 TO 59.20

$287.99

$

Usually ships in 2-12 days

0

23

Generac 048031C

CLAMP HOSE BAND 1/4

$1.49

$

In Stock, only 2 left!

0

24

Generac 0C8146

SCREW HHC 5/16-24X1.124

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$3.49

$

Usually ships in 2-12 days

0

25

Generac 082774

KEY WOODRUFF 4 X 1 9 D
(Superseded to G082774)

$12.99

$

In Stock, Qty 11

0

26

Generac 0F2686

HOSE RADIATOR UPPER CPL

$101.99

$

Usually ships in 2-12 days

0

27

Generac 0F5463

HOSE LOWER RAD CPL C5 6.8L

$24.99

$

Usually ships in 2-12 days

0

28

Generac 0F8695

ASSY BRG/SHAFT CPL FANDRIVE

Note: ORDER P/N 0F86950SRV

$

$

Not available

29

Generac 0F4028

PULLEY 6.5" DIA MACHINED (6.8L 100KW)

$66.99

$

Usually ships in 2-12 days

0

Generac 0F4030

PULLEY 6" DIA MACHINED (6.8L 130KW)

$60.99

$

Usually ships in 2-12 days

0

Generac 0F4032

PULLEY 5.5" DIA MACHINED (5.4L 80KW & 6.8L 150KW)

$66.99

$

Usually ships in 2-12 days

0

30

Generac 042911

SCREW HHC M 10-1.5X 30G 8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

31

Generac 0F2872

SCREW HHC 1/2-13X 2" G8

$25.99

$

Usually ships in 2-12 days

0

32

Generac 022304

W ASHER FLAT 1/2 ZINC
(Superseded to G022304)

$8.99

$

In Stock, Qty 7

0

33

Generac 022195

W ASHER LOCK 1/2

$

$

Not available

34

Generac 022196

NUT HEX 1/2-13 STEEL

$

$

Not available

35

Generac 049813

NUT HEX M 6X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

Usually ships in 2-12 days

0

36

Generac 052677

W ASHER NYLON .50 X .87 X .06

$

$

Not available

37

Generac 090283

CAP RADIATOR 13 PSI

$

$

Not available

38

Generac 0F2776A

BRACKET, SIGNAL CONDITIONER

$4.49

$

Usually ships in 2-12 days

0

39

Generac 022145

W ASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, only 2 left!

0

40

Generac 022129

W ASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

41

Generac 052644

SPACER .5 X 1.5 X .25 STL/ZINC

$

$

Not available

42

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

43

Generac 045764

SCREW HHTT M4-0.7 X 8 BP
(Superseded to G045764)

$0.99

$

Usually ships in 2-12 days

0

44

Generac 065852

SPRING CLIP HOLDER .37-.62

$

$

Not available

45

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$3.49

$

In Stock, only 2 left!

0

46

Generac 055596

BARBED STR 3/8 NPT X 3/8

$

$

Not available

47

Generac 069860E

HOSE DRAIN ASSY 28"

$63.99

$

Usually ships in 2-12 days

0

48

Generac 069811

CAP HEX 1/4 NPT BRASS

Note: ITEM 48 IS INCLUDED WITH 47.

$

$

Not available

49

Generac 080713

BRACKET COOLANT TANK

$

$

Not available

50

Generac 022473

W ASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

51

Generac 022097

W ASHER LOCK M6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

52

Generac 042568

SCREW HHC M 6-1.0X 20G 8.8

$

$

Not available

53

Generac 0F5050B

SHIELD RADIATOR

$281.99

$

Usually ships in 2-12 days

0

54

Generac 039253

SCREW HHC M 8-1.25X 20G 8.8
(Superseded to G039253)

$3.49

$

In Stock, only 1 left!

0

55

Generac 051769

W ASHER LOCK M12

$

$

Not available

56

Generac 0C8145

W ASHER FLEX (THIN)

$3.49

$

Usually ships in 2-12 days

0

57

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF

$51.99

$

Usually ships in 2-12 days

0

58

Generac 0H23980ST03

BRACKET TENSIONER SPRING

$33.99

$

Usually ships in 2-12 days

0

59

Generac 029032

HOSE 9/32 ID (43"LG)
(Superseded to G029032)

$6.99

$

Usually ships in 2-12 days

0

60

Generac 049820

NUT HEX LOCK M8-1.25 NY INS
(Superseded to G049820)

$0.99

$

In Stock, Qty 6

0

61

Generac 0H2844

BEARING SLEEVE 1/2/ X 3/4 X 1

Note: ITEM 61 IS INCLUDED WITH ITEM 1.

$14.99

$

Usually ships in 2-12 days

0

62

Generac 0G53150AL0R

SPACER CPL COOLING FAN 1/8"

$12.99

$

Usually ships in 2-12 days

0

63

Generac 051756

SCREW HHC M 10-1.5X 20C 8.8

Note: QTY REQ. FOR OPEN SETS. / QTY REQ. FOR ENCLOSED SETS.

$

$

Not available

64

Generac 052625

SCREW SHC M10-1.5X 35 G12.9

$

$

Not available

65

Generac 055934H

CLAMP S T U V N L .62 X . 406 Z

Note: QTY REQ. FOR OPEN SETS. / QTY REQ. FOR ENCLOSED SETS.

$4.49

$

Usually ships in 2-12 days

0

66

Generac 072252

GROMMET 1.37 X .06 X 1.00

$

$

Not available

67

Generac 0D6029

SCREW HHTT M 6-1.0X 16ZYC

$18.99

$

Usually ships in 2-12 days

0
