MQT15068KNSY - Generac 150kW Home Standby Generator (SN: 6996870 - 6996871) (2012) EV Enclosure C5 Emission (0G9784) Parts Diagram

150kW Home Standby Generator

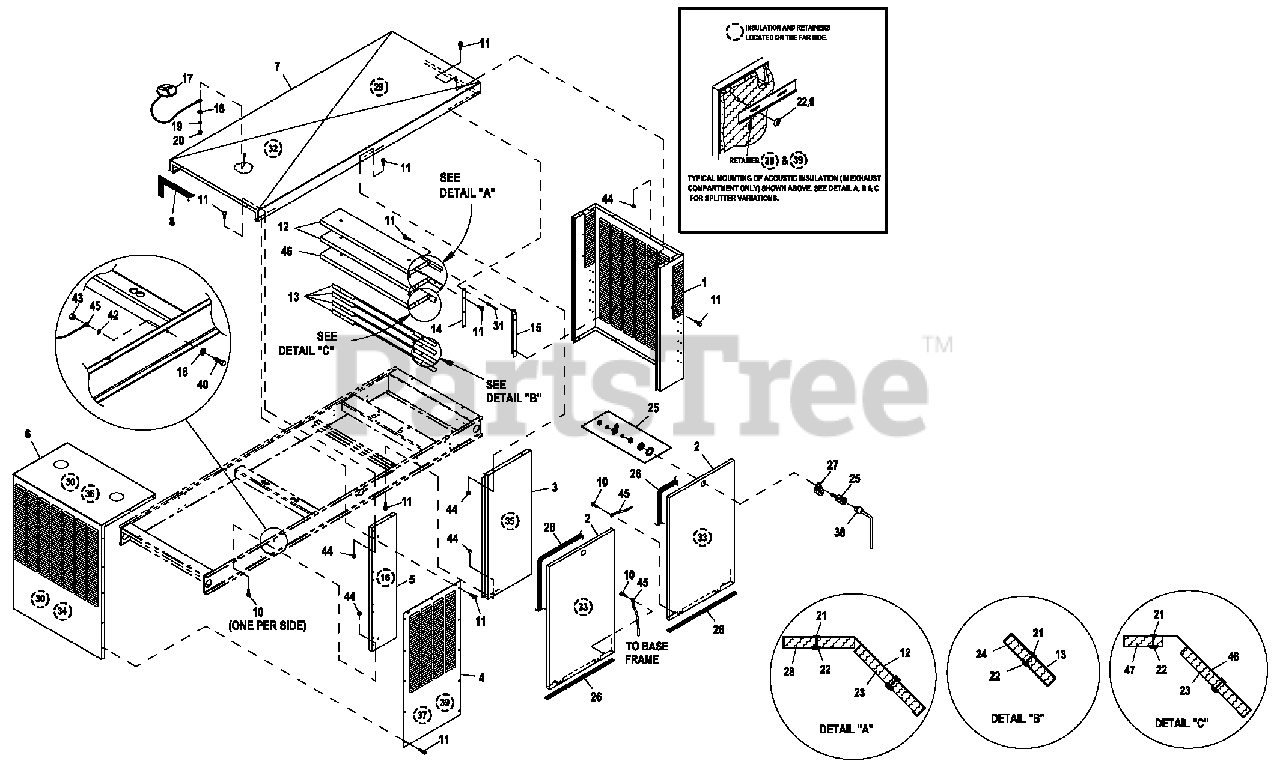

EV Enclosure C5 Emission (0G9784) Parts Diagram

  • Title

1

0F58730AL0R

REAR WRAP C5

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

2

0F5868AAL0R

DOOR C5

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

3

0F5872AAL0R

CENTER SUPPORT C5

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

4

0F58710AL0R

DISCHARGE DUCT LH & RH SIDE C5

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

5

0F5869AAL0R

FRONT CORNERS C5

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

6

0G97790AL0R

DUCT CENTER DISCHARGE

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

0F58700AL0R

DUCT CNTR DISCHRGAL

Note: SHEET M ETAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

$

$

Not available

7

0F58670AL0R

ROOF C5ALUM

$

$

Not available

8

Generac 066760

STRIP SEALANT 1/8X1 (44.5"LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days

0

9

Generac 078115A

WASHER SELF LOCKING DO ME #8-32

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO BASE FRA ME MUST BE SECURED USING ITE M 10 & 11 THREAD FORM ING FASTENER AND ITE M 44 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN EN

$2.99

$

Usually ships in 2-12 days

0

10

Generac 0E3257

SCREW TH-FR M M 6 W/CAP SHKPRF W

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO BASE FRA ME MUST BE SECURED USING ITE M 10 & 11 THREAD FORM ING FASTENER AND ITE M 44 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN EN

$5.49

$

Usually ships in 2-12 days

0

11

Generac 0C2454

SCREW THF M 6-1 X 16 N WA Z/JS

$3.99

$

Usually ships in 2-12 days

0

12

Generac 0F2766

SPLITTER

$212.99

$

Usually ships in 2-12 days

0

13

Generac 0F3181

SPLITTER SHORT

$104.99

$

Usually ships in 2-12 days

0

14

Generac 0F3185

STRINGER SPLITTER C3

$44.99

$

Usually ships in 2-12 days

0

15

Generac 0F3416

SUPPORT SPLITTER C5 130KW

$190.99

$

Usually ships in 2-12 days

0

16

Generac 0J0336

INSUL CORNER POST

$35.99

$

Usually ships in 2-12 days

0

17

Generac 0F4487A

ASSY ACCESS COVER

Note: CUSTOMER ORDER P/N 0F4487ASRV.

$

$

Not available

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M 6-1/4
(Superseded to G022097)

$3.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$5.49

$

Usually ships in 2-12 days

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$1.49

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DO ME #4-40

$

$

Not available

23

Generac 0J0336B

INSUL SPLITTER

$37.99

$

Usually ships in 2-12 days

0

24

Generac 0J0336A

INSULSHORT LOUVER

$10.99

$

Usually ships in 2-12 days

0

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$40.99

$

In Stock, only 1 left!

0

26

Generac 0E5968

GASKET EXTRUDED TRIM (566" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$4.49

$

Usually ships in 2-12 days

0

27

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$12.99

$

Usually ships in 2-12 days

0

28

Generac 0J0336G

INSUL SPLITTERS M L

$19.99

$

Usually ships in 2-12 days

0

29

Generac 0J2624B

INSUL ROOF TOP REAR

$180.99

$

Usually ships in 2-12 days

0

30

Generac 0F3890A

RETAINER INSULATION (740)

$20.99

$

Usually ships in 2-12 days

0

31

Generac 087233

RIVET POP.1875 X .450 SS

$

$

Not available

32

Generac 0J0336C

INSUL ROOF TOP FRT

$185.99

$

Usually ships in 2-12 days

0

33

Generac 0J0336D

INSUL DOOR

$140.99

$

Usually ships in 2-12 days

0

34

Generac 0F3949G

INSUL DISCHARGE DUCT

$87.99

$

Usually ships in 2-12 days

0

35

Generac 0J0336F

INSUL CENTER SUPPORT

$94.99

$

Usually ships in 2-12 days

0

36

Generac 0F3949K

INSUL DISCHARGE DUCT TOP

$163.99

$

Usually ships in 2-12 days

0

37

Generac 0F3949F

INSUL INNER DUCT SIDE

$52.99

$

Usually ships in 2-12 days

0

38

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$14.99

$

Usually ships in 2-12 days

0

39

Generac 0F3890

RETAINER INSULATION (450)

$12.99

$

Usually ships in 2-12 days

0

40

Generac 042568

SCREW HHC M 6-1.0 X 20 G8.8

$

$

Not available

42

Generac 022447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

43

Generac 049813

NUT HEX M 6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

Usually ships in 2-12 days

0

44

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO BASE FRA ME MUST BE SECURED USING ITE M 10 & 11 THREAD FORM ING FASTENER AND ITE M 44 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN EN

$1.99

$

Usually ships in 2-12 days

0

45

Generac 0912970094

ASSY WIRE 14AWG 34.8" GRN/YEL

$

$

Not available

46

Generac 0F2766A

SPLITTER C5

$212.99

$

Usually ships in 2-12 days

0

47

Generac 0J0336H

INSUL SPLITTER SHRT M PS

$14.99

$

Usually ships in 2-12 days

0
