MR 216518B (80458) - Snapper 21" Walk-Behind Mower, 6.5hp CUTTING DECK, BLADE Parts Diagram

21" Walk-Behind Mower, 6.5hp

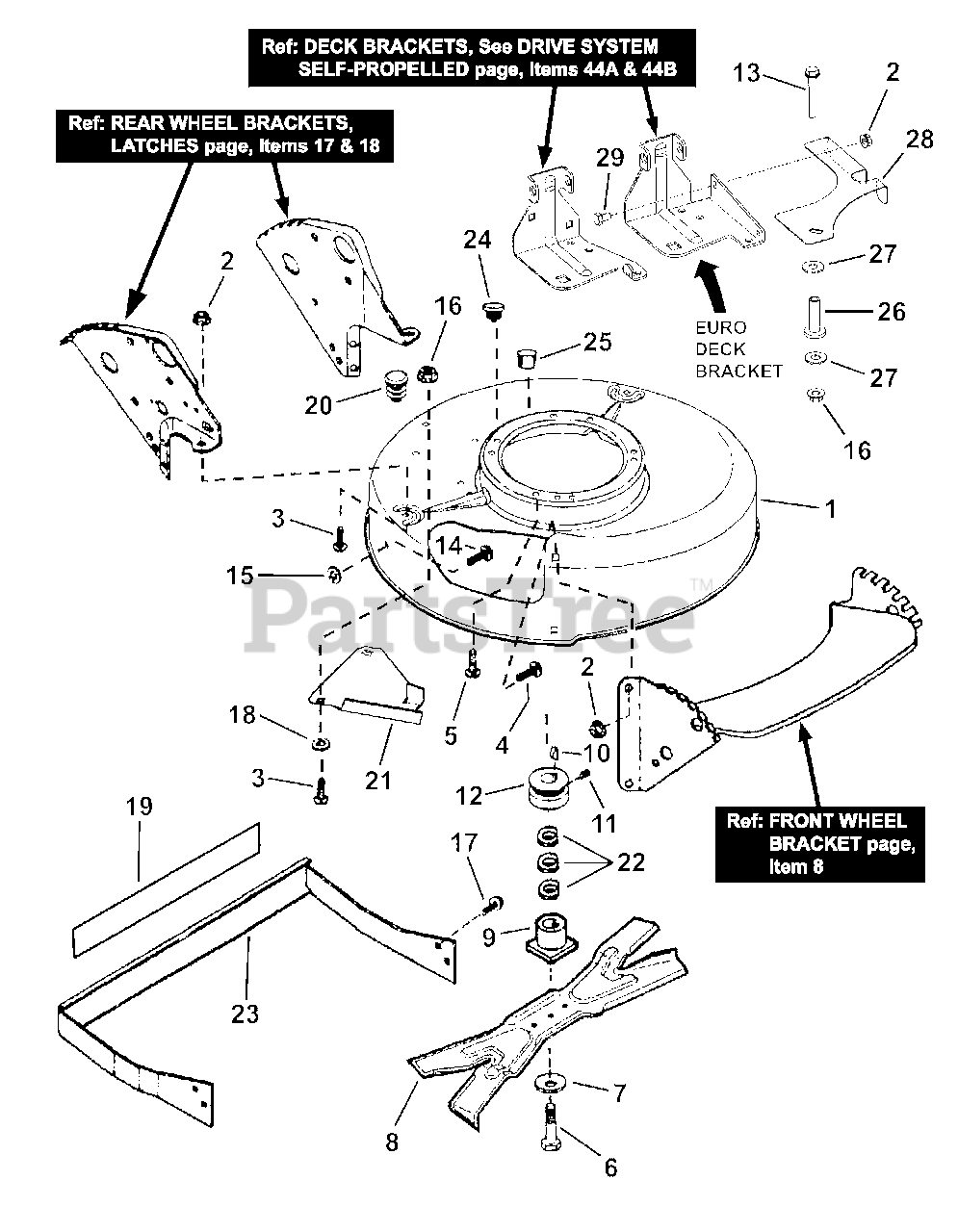

CUTTING DECK, BLADE Parts Diagram

  • Title

1

Snapper 7057884

* ASSEMBLY, M Series Push 21" Deck
(Superseded to 7600034DYP)

Note: Was 57784 (Used on MR216518B)

$359.99

$

Usually ships in 2-12 days

0

1

Snapper 7057884

* ASSEMBLY, M Series Propelled, 21" Deck
(Superseded to 7600034DYP)

Note: Was 57667 (Used on MRP216518B and EMRP216518B)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage GR5
(Superseded to 703798)

Note: Was 92061

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Neck Carriage GR5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

6

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

8

Snapper 7026407

BLADE, 21" Ninja
(Superseded to 7026407AYP)

$54.99

$

In Stock, Qty 7

0

9

Snapper 7015626

HUB, Blade Drive 25mm
(Superseded to 7015626YP)

$15.99

$

In Stock, only 1 left!

0

10

Snapper 7091214

KEY, Hi-Pro #HP506 (Briggs engine)
(Superseded to 7091214YP)

$4.99

$

In Stock, only 3 left!

0

11

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex Socket Head
(Superseded to 7090201SM)

$2.49

$

Usually ships in 2-12 days

0

12

Snapper 7015780

PULLEY, Engine Drive (25mm x 2-1/8" O.D.)
(Superseded to 7015780YP)

$30.99

$

Usually ships in 2-12 days

0

13

Snapper 7090702

BOLT, 5/16-18 x 2-1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage GR5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

17

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7073462

DECAL, Caution, International Symbols
(Superseded to 7073462YP)

Note: used on Euro models

$6.49

$

Usually ships in 2-12 days

0

20

Snapper 7046780

HOLE PLUG, Polyethylene
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7074568

COVER, Belt
(Superseded to 7074568YP)

Note: used on MRP216518B & EMRP216518B

$12.99

$

Usually ships in 2-12 days

0

22

Snapper 7044770

SPACER, .06 Blade Hub
(Superseded to 7044770YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7041400

FENDER WELDMENT
(Superseded to 7041400YP)

Note: used on Euro models

$71.99

$

Usually ships in 2-12 days

0

24

Snapper 7046471

PLUG, 5/16" Square Hole
(Superseded to 7046471YP)

Note: used on Push models; (only one shown)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7045264

PLUG, 5/16" Round Hole
(Superseded to 7045264YP)

Note: qty. 3 on Push, qty. 2 on Self-Propelled (only one shown)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7013320

BUSHING, .388 x .625 x 1.62
(Superseded to 7013320YP)

Note: used on Euro models

$13.99

$

Usually ships in 2-12 days

0

27

Snapper 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

Note: used on Euro models

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7033863

COVER, Belt- IP21S
(Superseded to 7033863YP)

Note: used on Euro models

$20.99

$

Usually ships in 2-12 days

0

29

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap, GR5
(Superseded to 704317)

Note: used on Euro models

$4.49

$

Usually ships in 2-12 days

0

** ENGINE, 6.5 B&S Quantum Mod. 123K02-0119-E1

Note: Not shown

$

$

Not available

** ENGINE, B&S Euro 6.5HP Mod. 123K02-0125-E1

Note: Not shown

$

$

Not available
