MR 216518B (80458) - Snapper 21" Walk-Behind Mower, 6.5hp FRONT WHEEL BRACKET Parts Diagram

21" Walk-Behind Mower, 6.5hp

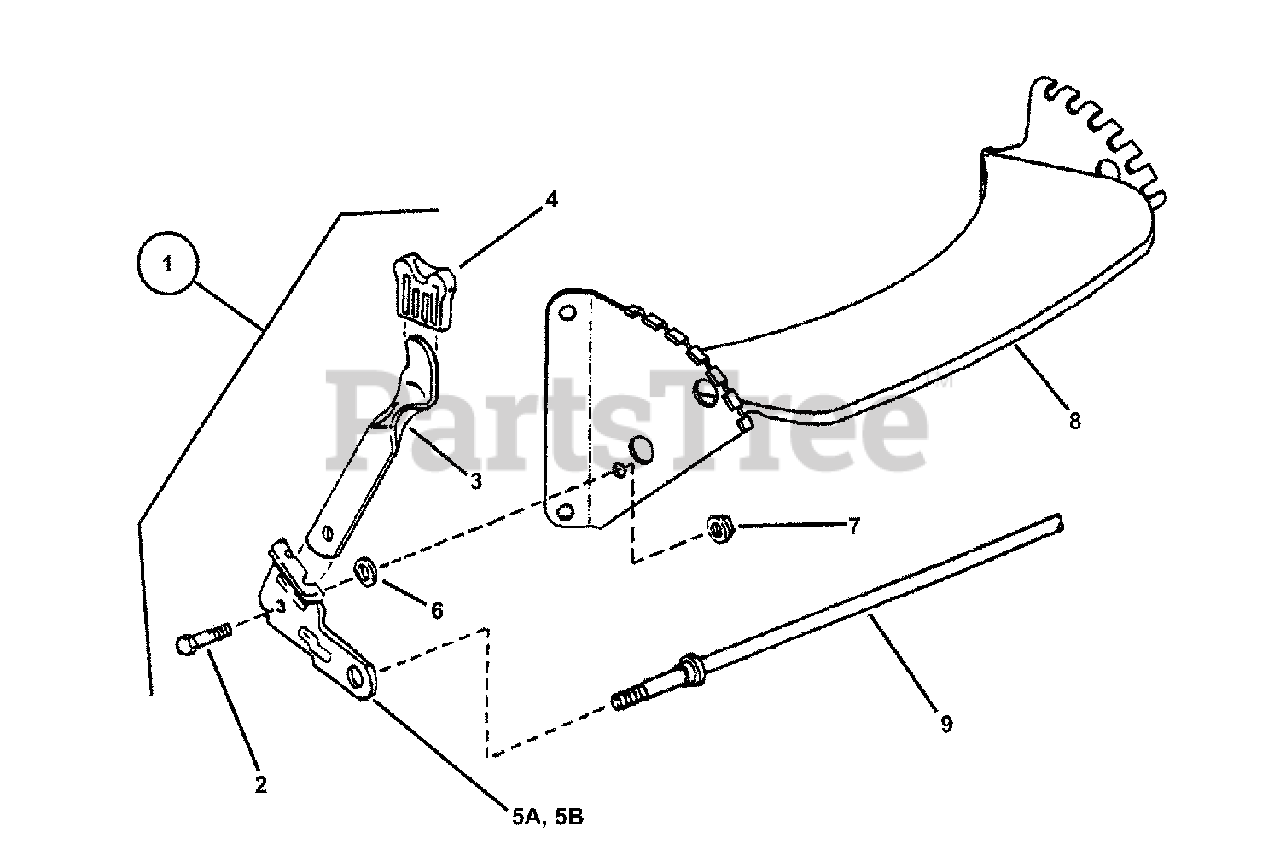

FRONT WHEEL BRACKET Parts Diagram

  • Title

1

Snapper 7051886

ASSEMBLY, Right Wheel Arm
(Superseded to 7600180YP)

Note: (Consists of items 2, 3, 4, 5A & 6)

$15.99

$

Usually ships in 2-12 days

0

1

Snapper 7051885

ASSEMBLY, Left Wheel Arm (Not shown)
(Superseded to 7600179YP)

Note: (Consists of items 2, 3, 4, 5B & 6)

$20.99

$

In Stock, only 2 left!

0

2

Snapper 7015761

BOLT, 5/16-18 Hex Washer Face Shoulder
(Superseded to 703839)

$5.49

$

In Stock, Qty 6

0

3

Snapper 7012325

LATCH, Height
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 6

0

4

Snapper 7027702

GRIP, Height Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

5A

Snapper 7031017

WHEEL ARM, R.H. Front (Round Hole)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

5B

Snapper 7031016

WHEEL ARM, L.H. Front (Square Hole)
(Superseded to 7031016YP)

Note: not shown

$7.99

$

In Stock, only 2 left!

0

6

Snapper 7011791

RETAINER, 5/16" Bolt (Black)
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

8

Snapper 7074702

WELDMENT, Front Wheel Bracket

$

$

Not available

9

Snapper 7021119

AXLE, 21"
(Superseded to 7021119YP)

Note: qty. 2 on Push models

$22.99

$

In Stock, Qty 9

0
