MRP 216014T (82526) - Snapper 21" Walk-Behind Mower, 6hp Transmission (Differential) Parts Diagram

21" Walk-Behind Mower, 6hp

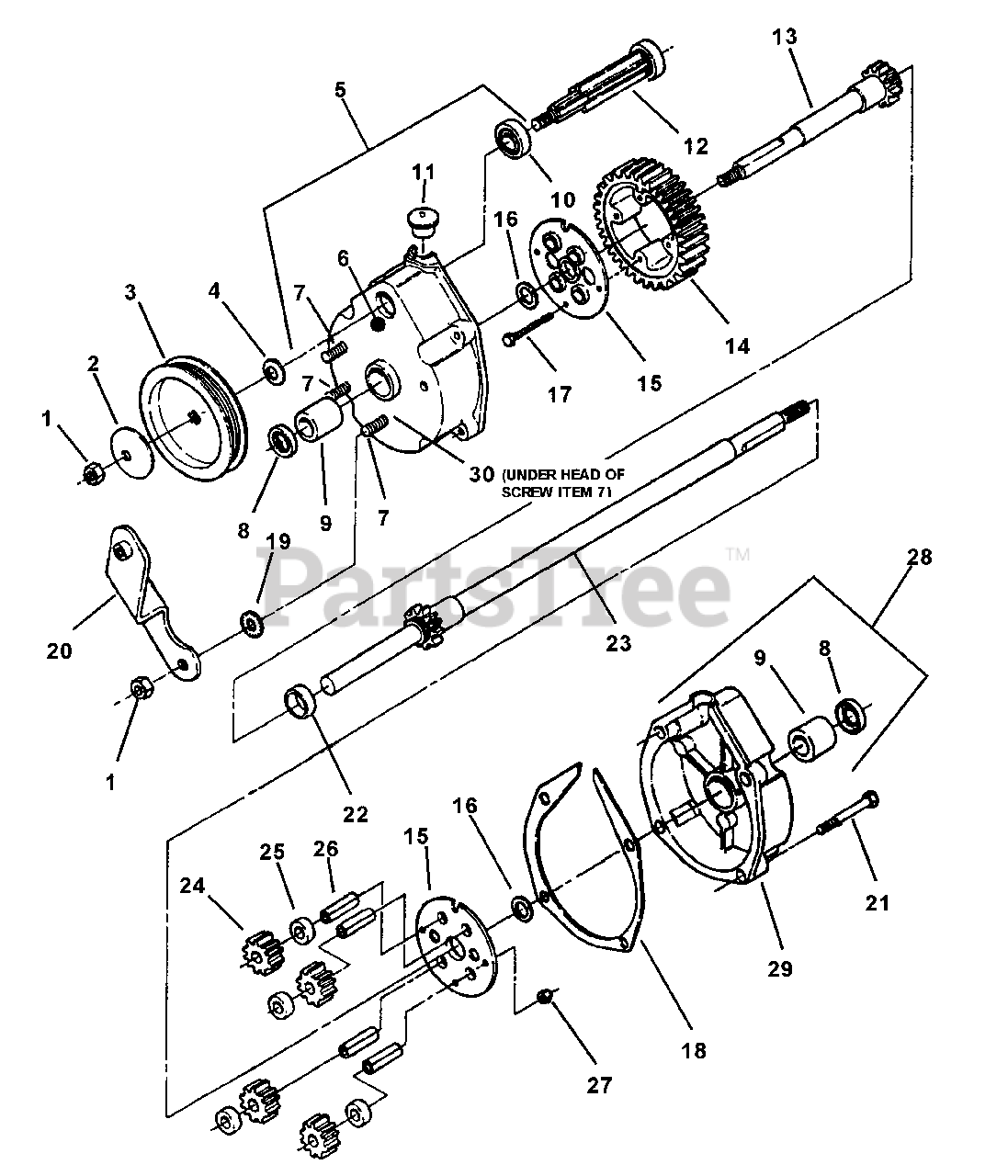

Transmission (Differential) Parts Diagram

  • Title

Snapper 7059070

ASSEMBLY, Transmission
(Superseded to 7053943YP)

Note: Was 53945 (Includes 1 thru 30)

$302.99

$

In Stock, only 1 left!

0

1

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201 (Only 2 Shown)

$3.49

$

In Stock, Qty 20+

0

2

Snapper 7014263

WASHER, Spring
(Superseded to 703939)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7019213

PULLEY, Poly-Vee Belt
(Superseded to 7019213YP)

$35.99

$

In Stock, only 1 left!

0

4

Snapper 7011724

WASHER, Spring
(Superseded to 703940)

Note: (Only 1 Shown)

$4.49

$

In Stock, Qty 6

0

5

Snapper 7053942

ASSEMBLY, Housing Right
(Superseded to 7029034YP)

Note: (Includes items 6, 7, 8, 9, 10 & 30)

$32.99

$

Usually ships in 2-12 days

0

6

Snapper 7029034

HOUSING, Right Side
(Superseded to 7029034YP)

$32.99

$

Usually ships in 2-12 days

0

7

Snapper 7014155

SCREW, 5/16-24 x 1-1/8" Rib Neck, Grade 5
(Superseded to 703935)

$

$

Not available

8

Snapper 7012314

SEAL, 5/8 I.D.
(Superseded to 7012314YP)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7029035

BEARING, Differential
(Superseded to 7029035YP)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7073963

BEARING, Ball
(Superseded to 7073963YP)

Note: Was 11767

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 7016544

PLUG, Housing
(Superseded to 703931)

$3.99

$

In Stock, Qty 11

0

12

Snapper 7050767

GEAR, Input
(Superseded to 7050767YP)

$36.99

$

Usually ships in 2-12 days

0

13

Snapper 7050830

AXLE, Short
(Superseded to 7050830YP)

$57.99

$

Usually ships in 2-12 days

0

14

Snapper 7012495

GEAR, Differential (46 Tooth)
(Superseded to 7012495YP)

$17.99

$

In Stock, only 1 left!

0

15

Snapper 7031970

PLATE
(Superseded to 7031970YP)

$16.99

$

Usually ships in 2-12 days

0

16

Snapper 7031965

WASHER, Thrust
(Superseded to 7031965YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7090557

SCREW, #10-32 x 1-1/2" Hex Head Cap,
(Superseded to 703938)

Note: (Only 1 Shown)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7011774

GASKET, Housing
(Superseded to 7011774YP)

$11.99

$

In Stock, Qty 11

0

19

Snapper 7090189

WASHER, 5/16 Internal/External Tooth Lock
(Superseded to 703936)

Note: (1 Shown)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7051903

BRACKET, Differential
(Superseded to 7051903AYP)

$26.99

$

In Stock, only 2 left!

0

21

Snapper 7091825

SCREW, 1/4-20 x 1-1/4" Self-Tapping
(Superseded to 703466)

Note: (Only 1 Shown)

$3.99

$

In Stock, Qty 12

0

22

Snapper 7012543

SPACER, Axle Gear
(Superseded to 703934)

$4.49

$

In Stock, only 2 left!

0

23

Snapper 7050831

AXLE, Long
(Superseded to 7050831YP)

$95.99

$

In Stock, only 1 left!

0

24

Snapper 7021115

GEAR, Pinion (12 Tooth)
(Superseded to 7021115YP)

$4.49

$

In Stock, Qty 12

0

25

Snapper 7012500

SPACER, Pinion Gear
(Superseded to 703933)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7011110

SHAFT, Pinion
(Superseded to 7011110YP)

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

Note: (Only 1 Shown)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7053939

ASSEMBLY, Housing Left
(Superseded to 7053939YP)

Note: (Includes items 8, 9 & 29)

$50.99

$

Usually ships in 2-12 days

0

29

Snapper 7029033

HOUSING, Left Side
(Superseded to 7029033YP)

$32.99

$

Usually ships in 2-12 days

0

30

Snapper 7024442

GASKET, 5/8 O.D.
(Superseded to 7024442YP)

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 7061017

* "00" GREASE (32 oz.)(not shown)
(Superseded to 7061017YP)

$

$

Not available
