MRT 6 (960910021-00) - Jonsered Rear-Tine Tiller (2010-10) HANDLE ASSEMBLY Parts Diagram

Rear-Tine Tiller

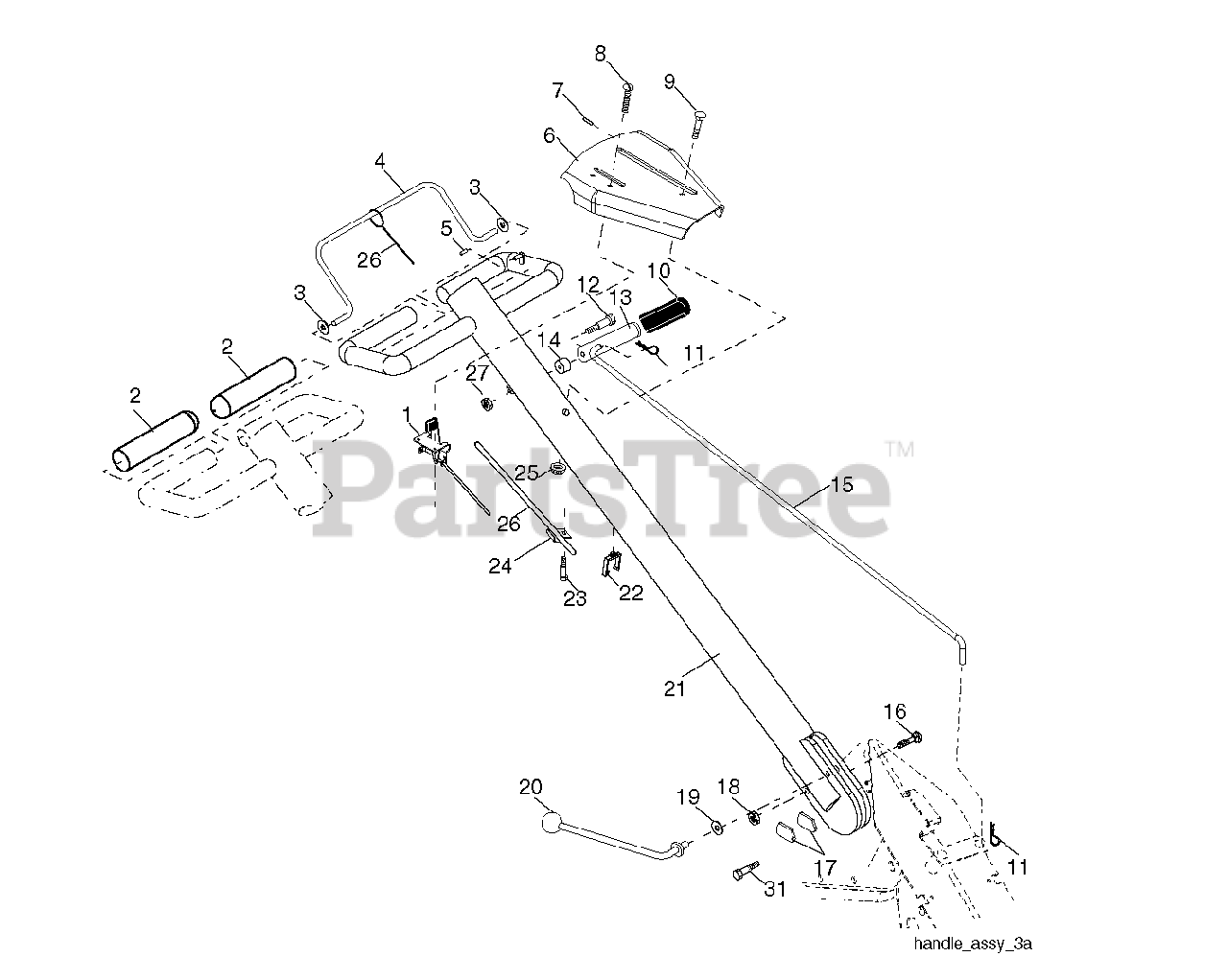

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Jonsered 532189482

THROTTLE.CONTROL.RT

$47.99

$

In Stock, Qty 17

0

2

Jonsered 532141406

No Description Available

$7.49

$

In Stock, only 3 left!

0

3

Jonsered 532110673

No Description Available

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 532127254

No Description Available
(Superseded to 127254X)

$26.99

$

Usually ships in 3-10 days

0

5

Jonsered 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 532188403

PANEL, CONTROL
(Superseded to 584330201)

$

$

Not available

7

Jonsered 532110641

No Description Available
(Superseded to 583660601)

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

9

Jonsered 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532110646

No Description Available
(Superseded to 532124797)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

12

Jonsered 532081328

SHOULDER BOLT ST

$6.49

$

Usually ships in 3-10 days

0

13

Jonsered 532187497

HANDLE.SHIFT.TILLER
(Superseded to 187497)

$

$

Not available

14

Jonsered 532109313

GROMMET.RUBBER.CRT.TILLER

$7.49

$

Usually ships in 3-10 days

0

15

Jonsered 532110702

No Description Available

$17.99

$

Usually ships in 3-10 days

0

16

Jonsered 872110608

BOLT D

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532109229

LOCK CRT

$7.49

$

In Stock, Qty 9

0

18

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

19

Jonsered 819131611

WASHER CRT
(Superseded to 596140201)

$3.99

$

In Stock, Qty 6

0

20

Jonsered 532109228

LEVER.LOCK.CRT

$8.99

$

In Stock, only 3 left!

0

21

Jonsered 532420524

No Description Available

$

$

Not available

22

Jonsered 532165197

No Description Available

$4.99

$

Usually ships in 3-10 days

0

23

Jonsered 532086777

TAPPING SCREW
(Superseded to 532750097)

$4.99

$

In Stock, Qty 20+

0

24

Jonsered 532009484

CONDUIT CLIP T

$6.49

$

In Stock, only 4 left!

0

25

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Jonsered 532110675

No Description Available

$18.99

$

In Stock, Qty 8

0

27

Jonsered 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

31

Jonsered 532150696

BOLT.PIVOT

$7.49

$

In Stock, Qty 5

0
