MRZT 26520 (7800850-01) - Massey Ferguson 52" Zero-Turn Mower, 26hp Briggs & Stratton Frame Assembly Group, 285Z/RZT (7501700D) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

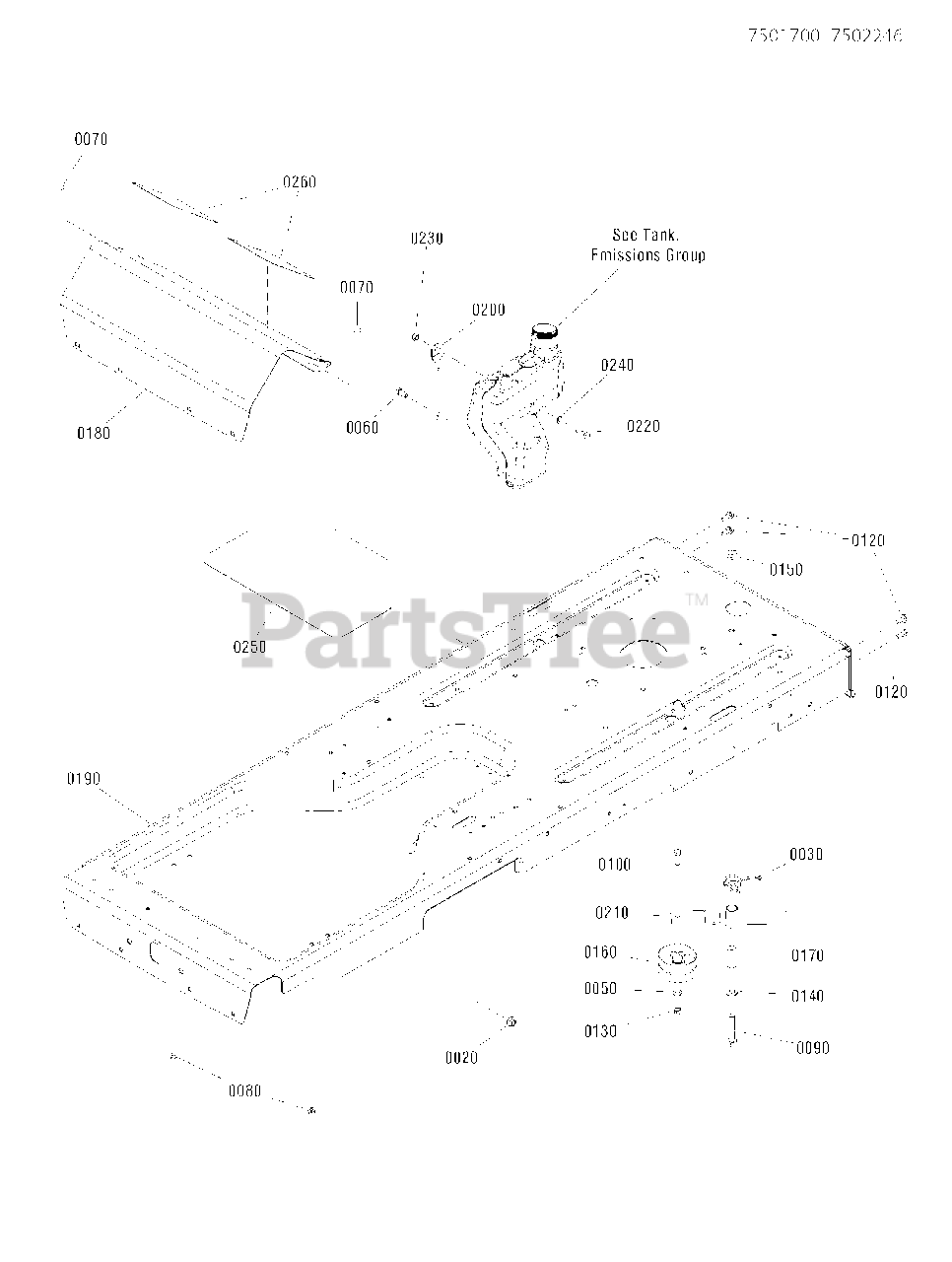

Frame Assembly Group, 285Z/RZT (7501700D) Parts Diagram

  • Title

0020

Simplicity 80002729

NUT, 3/8-16, GR5, Flanged Lock, Zinc/Clear
(Superseded to 703333)

Note: (Was 1931211)

$4.99

$

In Stock, Qty 20+

0

0030

Simplicity 7044760

SPRING, Torsion, RH Wound

$33.99

$

In Stock, only 1 left!

0

0050

Simplicity 7090122

WASHER, 3/8 Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 7091086

SCREW, 3/8-16 x 3/4 Hex Head Cap, GR 5 ZP
(Superseded to 703237)

Note: (Was 7090134)

$4.99

$

Usually ships in 2-12 days

0

0070

Simplicity 80003584

BOLT, 5/16-18 x 5/8 Carriage, Grade 5, Zinc/Clear
(Superseded to 703125)

Note: (Was 7090799)

$3.99

$

In Stock, only 2 left!

0

0080

Simplicity 80002728

NUT, 5/16-18, Hex Flange Lock, GR 5, Zinc/Clear
(Superseded to 703409)

Note: (Was 7091070 or 7091601)

$5.49

$

In Stock, Qty 20+

0

0090

Simplicity 7091218

SCREW, 1/2-13 x 2-1/2 Hex Head Cap, GR 5, BP
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0100

Simplicity 7091305

SCREW, Hex Head Cap 3/8-16 X 2 GR5 YZ
(Superseded to 7091305SM)

$4.49

$

In Stock, Qty 12

0

0120

Simplicity 80002741

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear
(Superseded to 703228)

Note: (Was 7091541)

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 18

0

0140

Simplicity 7091587

WASHER, .531 x 1.062 x .121, Flat, YZ (SAE)
(Superseded to 704123)

$4.49

$

In Stock, Qty 17

0

0150

Simplicity 7091894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

0160

Simplicity 7100103

IDLER, Pulley 3.25OD X.391ID X1.63,BACKSIDE
(Superseded to 7100103SM)

$43.99

$

In Stock, only 1 left!

0

0170

Simplicity 7200034

SPACER, .510" ID, .750" OD, 1.81" Long
(Superseded to 7200034SM)

$13.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7300140D

FOOTREST
(Superseded to 7300140DYP)

$79.99

$

Usually ships in 2-12 days

0

0190

Simplicity 7301073D

FRAME, RZT
(Superseded to 7301073DYP)

$1128.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7301110BM

BRACKET, Fuel Tank Support
(Superseded to 7301110BMYP)

$11.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7400208BM

WELDMENT, Hydro Idler
(Superseded to 7400208BMYP)

$45.99

$

In Stock, only 1 left!

0

0220

Simplicity 80002716

SCREW, 5/16-18 x 1 Hex Head Cap, GR 5, Zinc/Clear
(Superseded to 703585)

Note: (Was 7027168)

$4.99

$

Usually ships in 2-12 days

0

0230

Simplicity 7091298

NUT, 5/16-18 Hex Lock, ESNA, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 9

0

0240

Simplicity 720163

WASHER, .34 X .62 X 16 GA., Flat
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

0250

Simplicity 7103830

MAT, Floor Pan, RZT
(Superseded to 7103830YP)

$33.99

$

Usually ships in 2-12 days

0

0260

Simplicity 7104571

PAD, Wide Foot
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0
