MRZT 26520 (7800850-01) - Massey Ferguson 52" Zero-Turn Mower, 26hp Briggs & Stratton Park Brake Group - ZT26520 (7501572) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

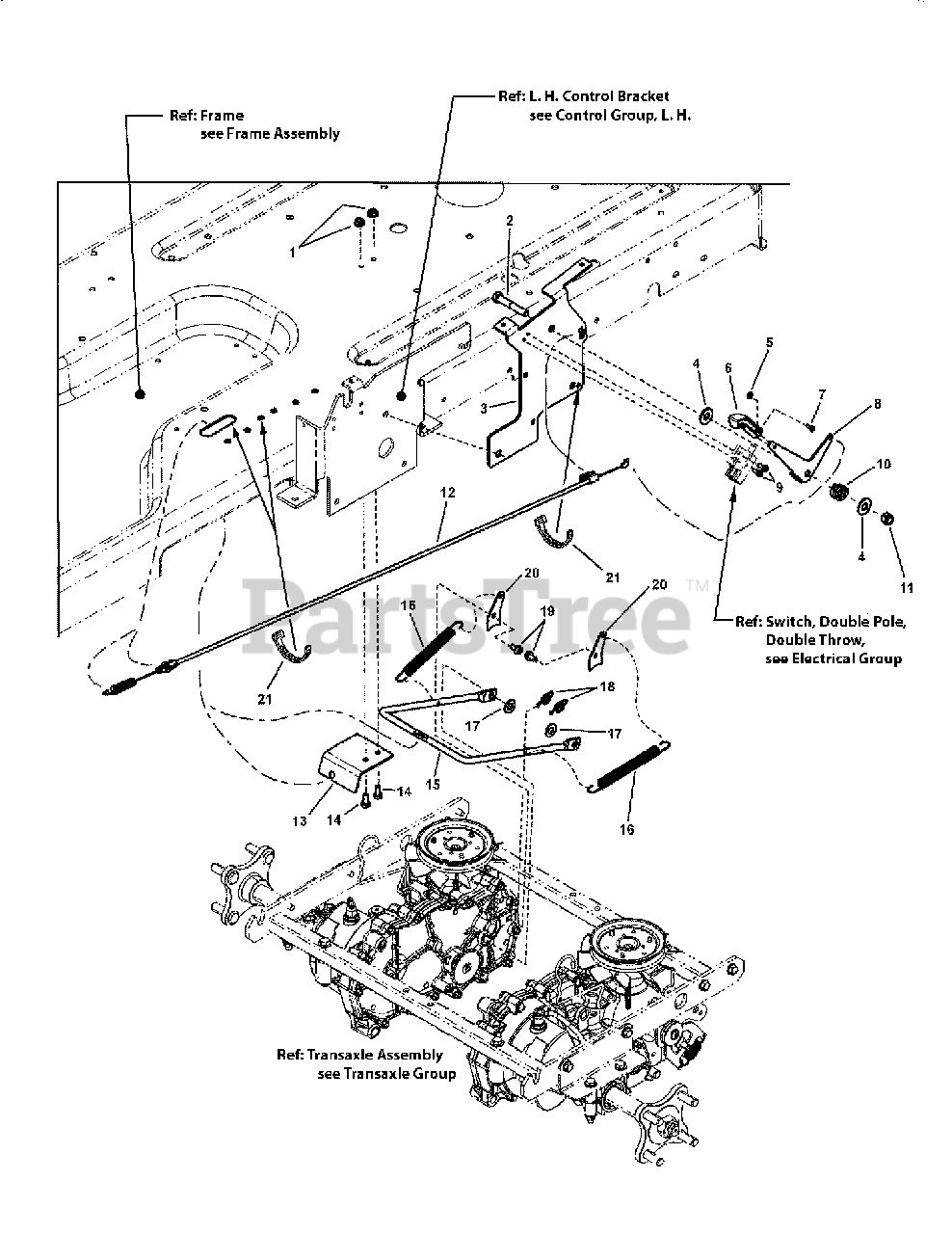

Park Brake Group - ZT26520 (7501572) Parts Diagram

  • Title

1

Simplicity 1960294

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 7091560

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, GR 5, YZ
(Superseded to 703872)

$4.99

$

In Stock, Qty 9

0

3

Simplicity 7301075BM

BRACKET, Lever, Park Brake
(Superseded to 7301075BMYP)

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

5

Simplicity 7091018

NUT, #8-32 Hex, GR 2B
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 7023655

LEVER, Throttle Control
(Superseded to 7023655YP)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 7091017

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR 2
(Superseded to 7091017YP)

$3.99

$

In Stock, Qty 5

0

8

Simplicity 7301074

LEVER, Brake, Park
(Superseded to 7301074YP)

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, Torx
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

10

Simplicity 7028036

SPRING, Friction Pack
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 7091299

NUT, 3/8-16 Hex Nyloc, YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 7103792

CABLE, Park Brake, RZT
(Superseded to 7103792YP)

$33.99

$

In Stock, only 3 left!

0

13

Simplicity 7301086BM

BRACKET, Cable, Park Brake
(Superseded to 7301086BMYP)

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 7103436

ROD, Park Brake, RZT
(Superseded to 7103436YP)

$48.99

$

In Stock, only 1 left!

0

16

Simplicity 2159106

SPRING, Extension, .562 OD x 4.250 Long x .049 Wire
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

17

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 7091594

COTTER PIN, 1/2" Self Locking, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

19

Simplicity 1925003

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 7301092

TAB, Spring, Park Brake
(Superseded to 7301092BMYP)

$14.99

$

In Stock, only 1 left!

0

21

Simplicity 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0
