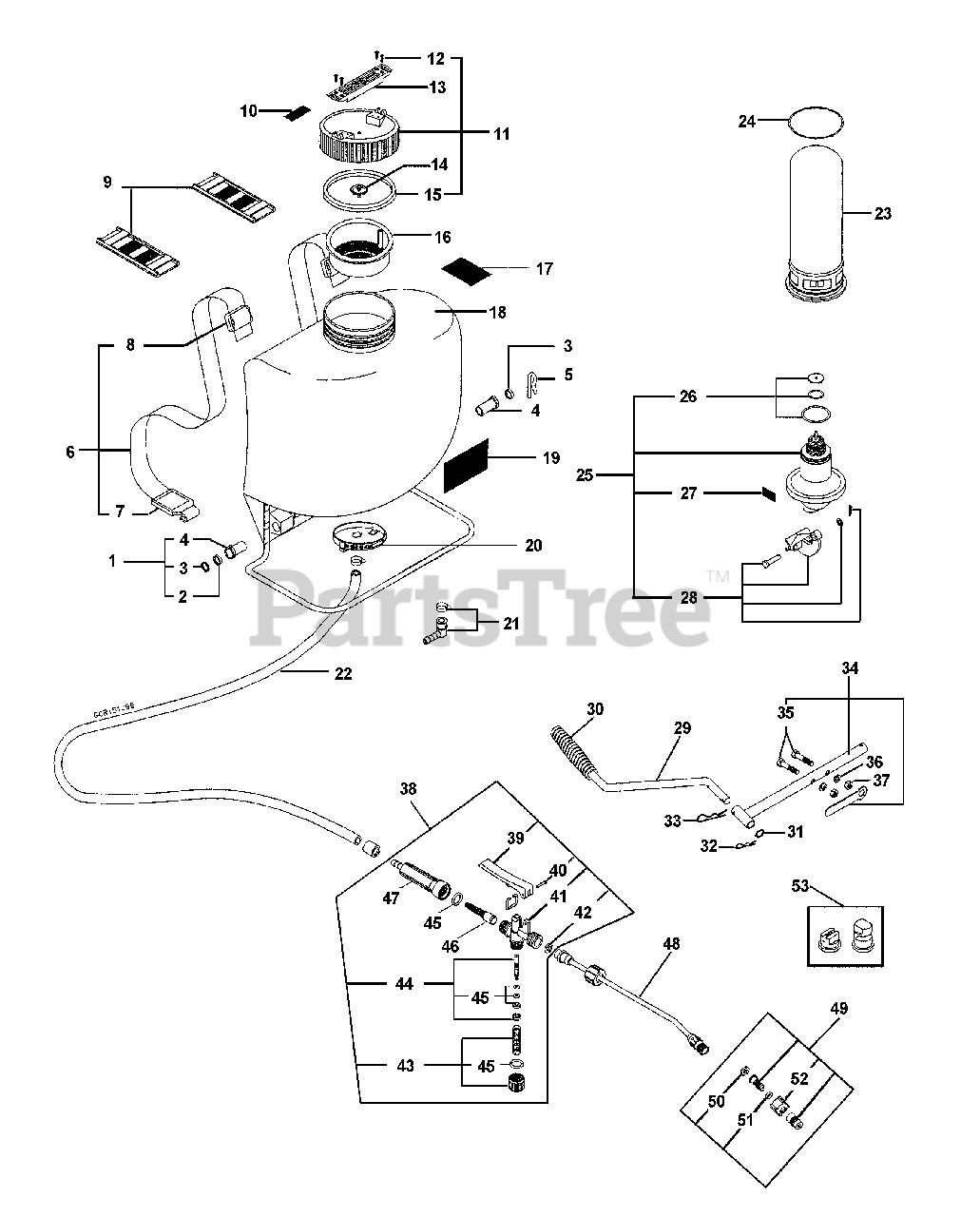

  • Title

1

Echo 4040000

BEARING - NYLON

Note: INCLUDES ITEMS 2-5

$15.99

$

Usually ships in 2-4 days

0

2

------------------

WASHER - NYLON

$

$

Not available

3

------------------

WASHER

$

$

Not available

4

------------------

BUSHING, NYLON

$

$

Not available

5

------------------

PIN, HAIR

$

$

Not available

6

Echo 4150000

STRAP ASSY

Note: Includes ITEM 7 & 8

$25.99

$

In Stock, only 1 left!

0

7

Echo 4310000

HOOK

$9.49

$

In Stock, only 1 left!

0

8

------------------

CLIP

$

$

Not available

9

Echo 4360000

PAD, SHOULDER STRAP
(Superseded to Discontinued)

$

$

Not available

10

Echo 4132153

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

11

Echo 4010001

CAP ASSY

Note: Includes ITEMS 12-15

$32.99

$

Usually ships in 2-4 days

0

12

------------------

SCREW

$

$

Not available

13

------------------

HANDLE

$

$

Not available

14

Echo 4020308

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

15

Echo 4020100

SEAL, CAP

$9.49

$

Usually ships in 2-4 days

0

16

Echo 4010119

STRAINER, DEBRIS

$9.99

$

Usually ships in 2-4 days

0

17

Echo 4132353

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

18

Echo 4185053

TANK
(Superseded to Discontinued)

Note: Includes ITEM 4

$

$

Not available

19

Echo 4132253

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

20

Echo 4110000

CLAMP

$16.99

$

Usually ships in 2-4 days

0

21

Echo 4160000

FITTING - 90°

Note: INCLUDES CLAMP

$26.99

$

Usually ships in 2-4 days

0

22

Echo 4170000

HOSE

Note: INCLUDES CLAMP

$42.99

$

In Stock, only 1 left!

0

23

Echo 4090000

TANK, PRESSURE
(Superseded to Discontinued)

Note: Includes ITEM 24

$

$

Not available

24

Echo 4100000

O-RING

$8.99

$

Usually ships in 2-4 days

0

25

Echo 4130816

MODULE DIAPHRAGM PUMP

Note: INCLUDES ITEMS 26-28

$147.99

$

Usually ships in 2-4 days

0

26

Echo 4121000

O-RING KIT

$52.99

$

Usually ships in 2-4 days

0

27

Echo 4132553

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

28

Echo 4140000

CRANKSHAFT ASSY

$23.99

$

Usually ships in 2-4 days

0

29

Echo 4070000

HANDLE, PUMP

Note: INCLUDES ITEMS 30-33

$43.99

$

Usually ships in 2-4 days

0

30

------------------

GRIP

$

$

Not available

31

------------------

WASHER

$

$

Not available

32

Echo 4018000

PIN KIT

$5.99

$

Usually ships in 2-4 days

0

33

Echo 4181000

HAIR PIN - LARGE

$8.49

$

In Stock, only 1 left!

0

34

Echo 4050000

LEVER, PUMP

Note: INCLUDES ITEMS 35-37

$49.99

$

Usually ships in 2-4 days

0

35

Echo 4060000

SCREW - SET

Note: INCLUDES ITEMS 36 & 37

$8.49

$

Usually ships in 2-4 days

0

36

------------------

WASHER

$

$

Not available

37

------------------

NUT

$

$

Not available

38

Echo 4180006

SPRAY PISTOL ASSY
(Superseded to 99944100330)

Note: INCLUDES ITEMS 39-47

$56.99

$

Usually ships in 2-4 days

0

39

------------------

LEVER, SPRAY PISTOL

$

$

Not available

40

------------------

PIN, LEVER

$

$

Not available

41

------------------

BODY, PISTOL

$

$

Not available

42

Echo 4200001

WASHER

$7.99

$

Usually ships in 2-4 days

0

43

Echo 4210001

PLUG SET
(Superseded to Discontinued)

Note: Includes ITEM 45

$

$

Not available

44

Echo 4190000

SPINDLE SET

Note: Includes ITEM 45

$20.99

$

Usually ships in 2-4 days

0

45

Echo 4200000

O-RING KIT

$19.99

$

Usually ships in 2-4 days

0

46

Echo 4691319

FILTER

$3.49

$

Usually ships in 2-4 days

0

47

Echo 4717910

GRIP

$13.99

$

Usually ships in 2-4 days

0

48

Echo 4220000

WAND - BRASS

$43.99

$

Usually ships in 2-4 days

0

49

Echo 4250000

BRASS NOZZLE ASSY
(Superseded to 99944100340)

Note: INCLUDES ITEMS 50-52

$31.99

$

Usually ships in 2-4 days

0

50

Echo 4200001

WASHER

$7.99

$

Usually ships in 2-4 days

0

51

Echo 4260000

O-RING
(Superseded to Discontinued)

$

$

Not available

52

Echo 4240000

NOZZLE HOLDER KIT

$8.49

$

In Stock, only 1 left!

0

53

Echo 4251020

SPRAY TIP SET
(Superseded to 99944100350)

$33.99

$

In Stock, only 1 left!

0
