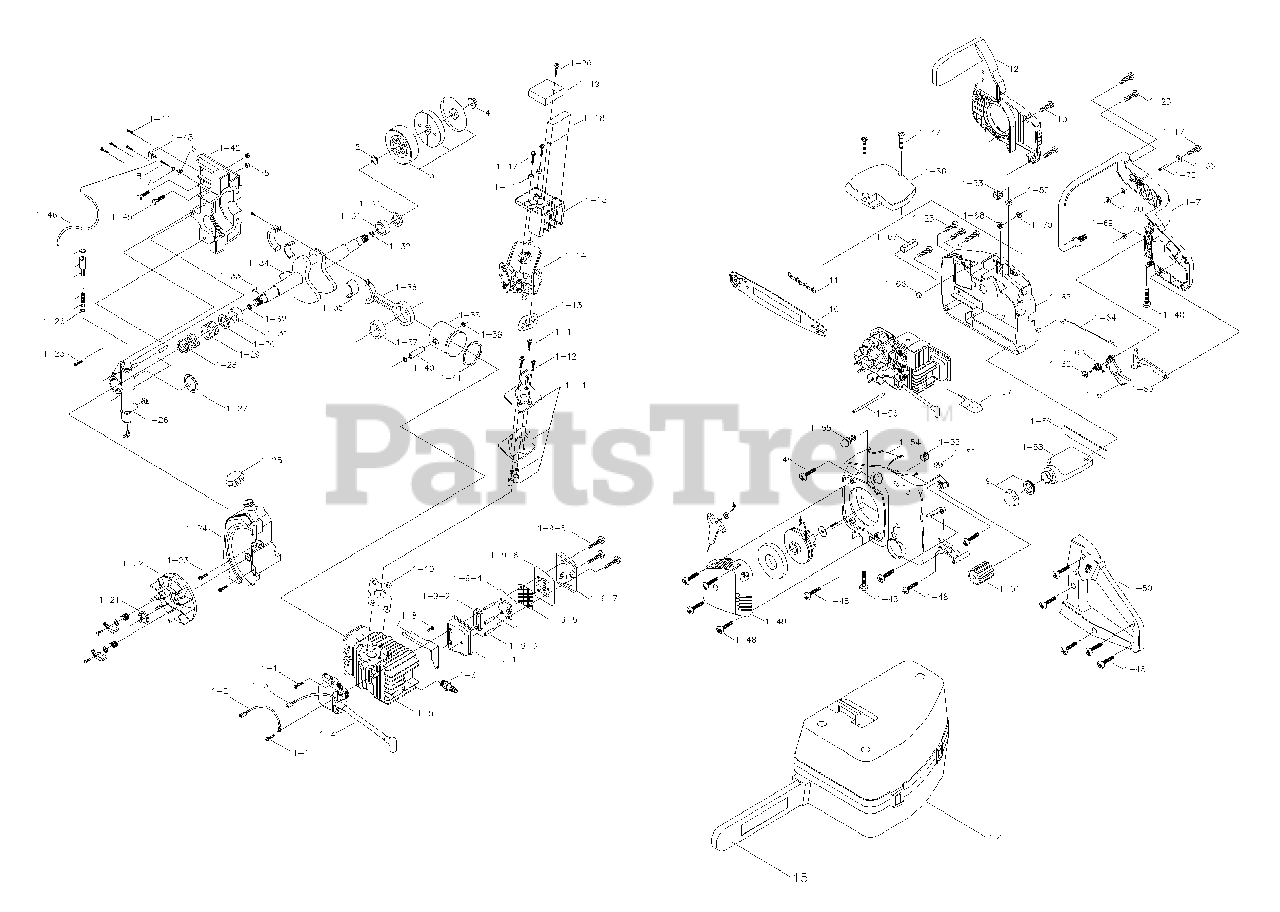

MS 1838 AVCC (41BY88AR077) - McCulloch Chainsaw General Assembly Parts Diagram

Chainsaw

General Assembly Parts Diagram

  • Title

1

MTD MC-9238-310104-B0

POWERHEAD ASS'Y

$

$

Currently unavailable

1-1

MTD MC-9SKKBY10/24-0.75

SCREW

$

$

Currently unavailable

1-2

MTD MC-9010-310101

WIRE ASS'Y, GROUND

$

$

Currently unavailable

1-3

MTD MC-9010-310102

WIRE ASS'Y, STOP SWITCH

$

$

Not available

1-4

MTD MC-9288-310001-CH

IGNITION ASS'Y

$

$

Currently unavailable

1-5

MTD MC-9064-310004F

CYLINDER

$

$

Currently unavailable

1-6

MTD MC-9111-310002-CH

SPARK PLUG

$

$

Currently unavailable

1-7

MTD MC-9082-310101

BAFFLE, AIR

$

$

Not available

1-8

MTD MC-9SGKBY10/24-0.625

SCREW

$

$

Currently unavailable

1-9

MTD MC-9228-310112A

MUFFLER ASS'Y

$

$

Not available

1-9-1

MTD MC-9067-310101F

COVER, MUFFLER

$

$

Currently unavailable

1-9-2

MTD MC-9043-310101F

PLATE, REINFORCING

$

$

Currently unavailable

1-9-3

MTD MC-9PA-7.4-28.5

SPACER, MUFFLER

$

$

Currently unavailable

1-9-4

MTD MC-9207-310101F

BAFFLE, OUTER

$

$

Not available

1-9-5

MTD MC-9104-310101

BAFFLER, INNER MUFFLER

$

$

Not available

1-9-6

MTD MC-9207-310102F

SCREEN, SPARK ARRESTER

$

$

Not available

1-9-7

MTD MC-9067-310102F

COVER, MUFFLER

$

$

Currently unavailable

1-9-8

MTD MC-9SKKBY10/24-1.75

SCREW

$

$

Currently unavailable

1-10

MTD MC-9082-310001

GASKET, INSULATOR

$8.99

$

Usually ships in 3-6 days

0

1-11

MTD MC-9228-310119

INSULATOR ASS'Y

$

$

Currently unavailable

1-12

MTD MC-9SKKBY10/24-1

SCREW

$

$

Currently unavailable

1-13

MTD MC-9014-310006

GASKET

$

$

Not available

1-14

MTD MC-9287-310002

CARBURETOR

$

$

Not available

1-15

MTD MC-9081-310001

BOX,AIR FILTER

$

$

Not available

1-16

MTD MC-9124-310208

SPACER

$

$

Not available

1-17

MC-9SKKBY10/24-2

SCREW

$

$

Not available

1-18

MTD MC-9252-310004

FILTER, AIR

$

$

Not available

1-19

MTD MC-9017-310004

SHIELD,CARBURETOR

$

$

Not available

1-20

MTD MC-9SGKBY10/14-0.625

SCREW

$

$

Currently unavailable

1-21

MTD MC-9NAB-5/16-24

NUT

$

$

Not available

1-22

MTD MC-9228-310110

FLYWHEEL ASS'Y

$

$

Not available

1-23

MTD MC-9SKKBY10/24-0.62

SCREW

$

$

Currently unavailable

1-24

MTD MC-9228-310035

FUEL TANK ASS'Y

$

$

Currently unavailable

1-25

MTD MC-9228-310120

CAP, FUEL ASS'Y

$

$

Not available

1-26

MTD MC-9228-310106

OIL PUMP ASS'Y

$

$

Not available

1-27

MTD MC-9252-310003

SEAL

$

$

Not available

1-28

MTD MC-9024-310004

SPRING

$

$

Not available

1-29

MTD MC-9073-310001

WORM GEAR

$

$

Not available

1-30

MTD MC-9157-310101

SEAL, C'SHAFT OIL

$

$

Not available

1-31

MTD MC-9DB-SCH87

BEARING

$

$

Not available

1-32

MTD MC-9WFB-14.2-25.3

WASHER

$

$

Currently unavailable

1-33

MTD MC-9221-310001

KEY

$

$

Not available

1-34

MTD MC-9200-310001

CRANKSHAFT

$

$

Currently unavailable

1-35

MTD MC-9WFB-5.1-22

WASHER

$

$

Not available

1-36

MTD MC-9067-310001

COVER, AIR FILTER

$

$

Currently unavailable

1-37

MTD MC-9155-310002

BEARING

$

$

Currently unavailable

1-38

MTD MC-9290-310004

PISTON
(Superseded to MC-9290-310004P)

$

$

Not available

1-39

MTD MC-9CB-08-0.6

RING

$

$

Currently unavailable

1-40

MTD MC-9PA-9.51-29.67

PIN

$

$

Currently unavailable

1-41

MTD MC-9291-310001

PISTON RING

$

$

Not available

1-42

MTD MC-9072-310002F

CLY

$

$

Currently unavailable

1-43

MTD MC-9142-310001

FITTING

$

$

Not available

1-44

MC-9SFEB-12/24-1

SCREW

$

$

Not available

1-45

MTD MC-9214-310001

BOLT, BAR

$

$

Not available

1-46

MTD MC-9129-310004

HOSE

$

$

Not available

1-47

MTD MC-9214-310101

SCREW

$

$

Not available

1-48

MTD MC-9SKKBY8/16-0.75

SCREW 17

$

$

Currently unavailable

1-49

MTD MC-9228-310003

STARTER HOUSING ASS'Y

$

$

Not available

1-50

MTD MC-9228-310101

HANDLE ASS'Y, LEFT

$

$

Currently unavailable

1-51

MTD MC-9027-310101

ISOLATOR,RUBBER

$

$

Not available

1-52

MTD MC-9NDC-10/24

NUT

$

$

Not available

1-53

MTD MC-9014-310001

RETAINER,NUT

$

$

Not available

1-54

MTD MC-9038-310102

ENGINE HOUSING, LEFT

$

$

Currently unavailable

1-55

MTD MC-9142-310002

PRIMER

$21.99

$

In Stock, Qty 20+

0

1-56

MTD MC-9129-310002

HOSE

$

$

Not available

1-57

MTD MC-9114-310001

SLIDE, CHOKE

$

$

Not available

1-58

MTD MC-9228-310002

OIL TANK ASS'Y

$

$

Not available

1-59

MTD MC-9014-310004

SPACER, OIL TANK

$

$

Not available

1-60

MTD MC-9028-310001

LATCH, THROTTLE

$

$

Not available

1-61

MTD MC-9022-310001

TRIGGER,THROTTLE

$

$

Not available

1-62

MTD MC-9076-310001

O RING

$

$

Not available

1-63

MTD MC-9024-310003

SPRING

$9.49

$

In Stock, only 2 left!

0

1-64

MTD MC-9114-310002

CABLE,THROTTLE

$

$

Not available

1-65

MTD MC-9038-310101

ENGINE HOUSING, RIGHT
(Superseded to 753-05108)

$

$

Not available

1-66

MTD MC-9252-310002

FILTER, FOAM

$

$

Not available

1-67

MTD MC-9PA06-27

PIN

$

$

Currently unavailable

1-68

MC-9NGB-10/24-50

NUT

$

$

Not available

1-69

MTD MC-9WFB-4.9-17

WASHER

$

$

Not available

1-70

MTD MC-9WFB-5.64-12

WASHER

$

$

Not available

1-71

MTD MC-9228-310102

HANDLE ASS'Y, RIGHT

$

$

Currently unavailable

1-72

MTD MC-9124-310101

SPACER

$

$

Not available

2

MTD MC-6014-633501

WASHER

$

$

Not available

3

MTD MC-9228-310113F

DRUM ASS'Y

$78.99

$

In Stock, only 1 left!

0

4

MTD MC-9NHC-5/16-24

NUT

$

$

Not available

5

MTD MC-9NHC-1/4

NUT

$

$

Not available

6

MTD MC-9035-310101

NUT

$

$

Not available

7

MTD MC-9043-310002

RING, RETAINING

$

$

Not available

8

MTD MC-9191-310001

SCREW

$

$

Not available

9

MTD MC-9228-310116

OIL CAP ASS'Y

$

$

Not available

10

MTD MC-9040-310012

BAR

$

$

Currently unavailable

11

MTD MC-6220-210805

CHAIN

$

$

Not available

12

MTD MC-9228-310004

CHAIN BRAKE ASS'Y

$

$

Not available

13

MTD MC-9SKKBY-8/16-1

SCREW

$

$

Currently unavailable

14

MTD MC-9120-310001

CARRY CASE

$

$

Not available

15

MTD MC-9017-310007

SCABBARD

$

$

Not available
