MS 1842 AVCC (41AY82AR077) - McCulloch Chainsaw General Assembly Parts Diagram

Chainsaw

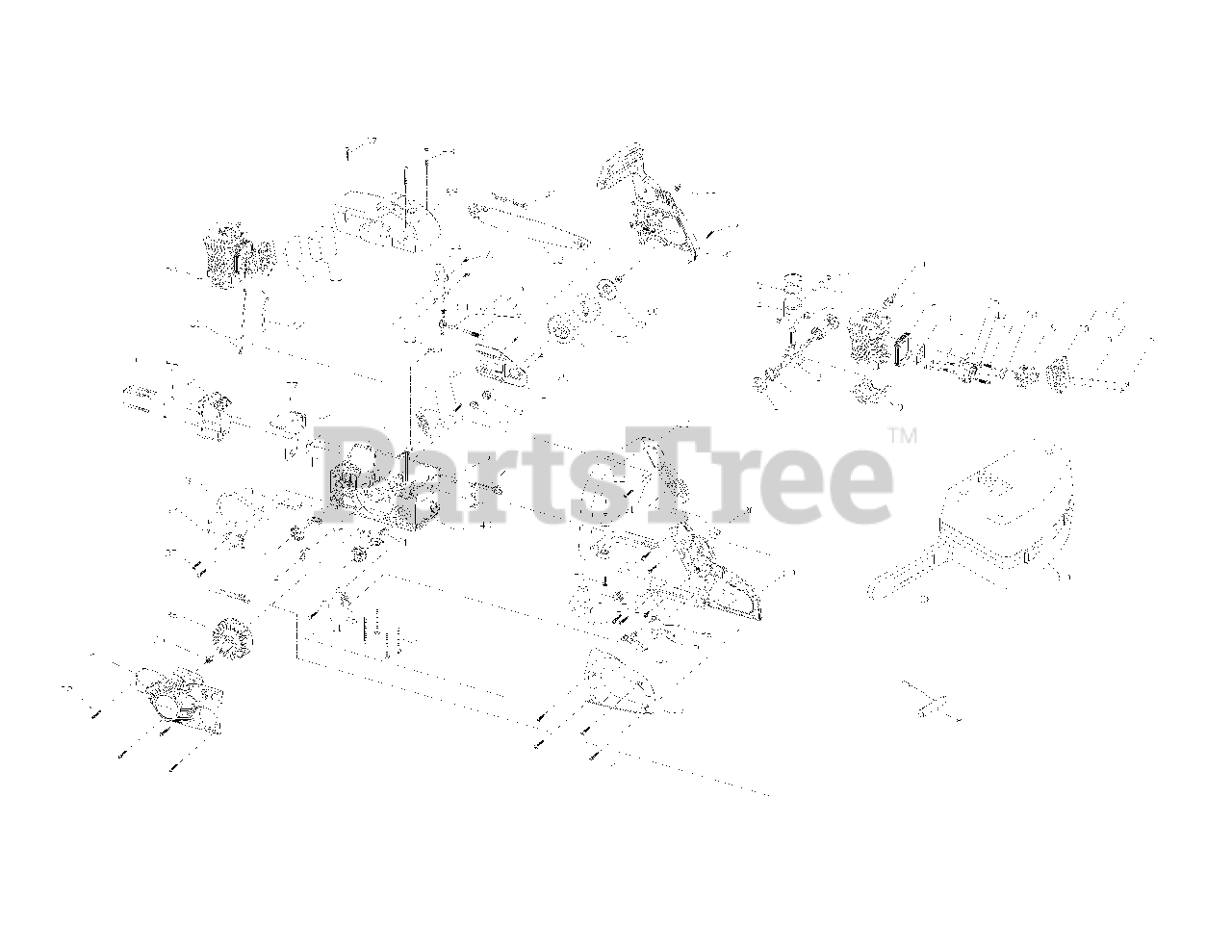

General Assembly Parts Diagram

  • Title

1

MTD MC-9157-310502

CAP, BEARING

$

$

Not available

2

MTD MC-9DB-620101

BEARING

$

$

Not available

3

MTD MC-9228-310505

CRANK/ROD ASS'Y

$

$

Not available

4

MTD MC-9290-310502

PISTON

$

$

Not available

5

MTD MC-9189-310502

RING, PISTON

$

$

Not available

6

MTD MC-9NB-K101410

ROLLER, PISTON

$

$

Not available

7

MTD MC-9PC-10-34.5-CH

PIN, PISTON

$

$

Currently unavailable

8

MTD MC-9CA-10.3

RING

$

$

Not available

9

MTD MC-9072-310501F

CASE, CRANK

$

$

Not available

10

MTD MC-9295-310502

SPARK PLUG
(Superseded to CMR-7H)

$4.99

$

In Stock, Qty 20+

0

11

MTD MC-9292-310501F

CYLINDER

$

$

Not available

12

MTD MC-9012-310502

RUBBER, ISOLATOR

$

$

Not available

13

MTD MC-9082-310505

SPACER

$

$

Not available

14

MTD MC-9STDB-05-60

SCREW

$

$

Not available

15

MTD MC-9082-310504

ISOLATOR, CARBURETOR

$

$

Not available

16

MTD MC-6WSB-06

SPRING WASHER

$

$

Not available

17

MTD MC-9SACB-06-25

SCREW

$

$

Not available

18

MTD MC-9082-310506

SPACER

$

$

Not available

19

MTD MC-9287-310501

CARBURETOR

$

$

Not available

20

MTD MC-9228-310510

AIR FILTER ASS/Y

$

$

Not available

21

MTD MC-9NHZ-05

NUT

$

$

Not available

22

MTD MC-9SGKBY10/14-0.625

SCREW

$

$

Currently unavailable

23

MTD MC-9068-310501

HANDLE, LEFT PART

$

$

Not available

24

MTD MC-9028-310502

TRIGGER, THROTTLE

$

$

Not available

25

MTD MC-9028-310501

TRIGGER, RELEASE

$

$

Not available

26

MTD MC-9024-310504

SPRING

$

$

Not available

27

MTD 9SKKBY10/14-0.68

SCREW

$

$

Currently unavailable

28

MTD MC-9027-310101

RUBBER

$

$

Not available

29

MTD MC-9068-310502

HANDLE, REAR

$

$

Not available

30

MTD MC-9022-310501

SWITCH

$

$

Not available

31

MTD 9WFB-05-21

WASHER
(Superseded to MC-9WFB-05-21)

$

$

Not available

32

MTD 9SKKBY8/16-0.625

SCREW

$

$

Currently unavailable

33

MTD MC-9068-310503

HANDLE, FRONT

$

$

Not available

34

MTD MC-9228-310518

STARTER HOUSING ASS'Y

$

$

Not available

35

MTD MC-9NAB-5/16-24

NUT

$

$

Not available

36

MTD MC-9169-310501

FLYWHEEL

$

$

Not available

37

MTD MC-9SGEB-05-20

SCREW

$

$

Not available

38

MTD MC-9010-310503

WIRE ASS'Y

$

$

Not available

39

MTD MC-9288-310502-CH

IGNITION ASS'Y

$

$

Currently unavailable

40

MTD MC-9051-310501

CONDUCTIVE PLATE

$

$

Not available

41

MTD MC-9228-310207

OIL CAP ASS'Y

$

$

Not available

42

MTD MC-9228-310566

SPRING ASS'Y

$

$

Not available

43

MTD MC-9142-310002

PRIMER

$21.99

$

In Stock, Qty 20+

0

44

MTD MC-9228-310206

FUEL CAP ASS'Y

$

$

Not available

45

MTD MC-9024-310506

SPRING

$

$

Not available

46

MTD MC-9SFAB-06-55

SCREW

$

$

Not available

47

MTD MC-9182-310503

FILTER

$

$

Not available

48

MTD MC-9228-310565

HOUSING ASS'Y

$

$

Not available

49

MTD MC-9012-310503

HOLDER, CABLE

$

$

Not available

50

MTD MC-9114-310510

LEVER, CHOKE

$

$

Not available

51

MTD MC-9012-310504

HOLDER, CHOKE LEVEL

$

$

Not available

52

MTD MC-9024-310507

SPRING

$

$

Not available

53

MTD MC-9124-310102

CONNECTOR

$

$

Not available

54

MTD MC-9013-310501

OIL PIPE

$

$

Not available

55

MTD MC-9228-310526

PUMP ASS'Y

$

$

Not available

56

MTD MC-6WSB-06

WASHER

$

$

Not available

57

MTD MC-9082-310502

BAFFLE

$

$

Not available

58

MTD MC-9082-310501

BAFFLE

$

$

Not available

59

MTD MC-9228-310547

MUFFLER ASS'Y

$

$

Not available

60

MTD 9SXDB-06-70

SCREW

$

$

Currently unavailable

61

MTD MC-9010-310502

CABLE, THROTTLE

$

$

Not available

62

MTD MC-9129-310504

FUEL PIPE

$

$

Not available

63

MTD MC-9221-310001

WOODRUFF KEY

$

$

Not available

64

MTD MC-9183-310502

MESH

$

$

Not available

65

MTD MC-9252-310501

FILTER, AIR

$

$

Not available

66

MTD MC-9227-310501

SPIKED BUMPER

$

$

Currently unavailable

67

MTD 710-04495

SCREW

$

$

Not available

68

MTD 9SKKBY8/16-1.4

SCREW
(Superseded to 710-04499)

$

$

Not available

69

MTD MC-9017-310509

SHROUD

$

$

Not available

70

MTD 9SKKBY05-18

SCREW
(Superseded to MC-9SKKBY05-18)

$

$

Not available

71

MTD MC-9NAB-05

NUT

$

$

Not available

72

MTD MC-9157-310501

FELT

$

$

Not available

73

MTD MC-9073-310503

WORM

$

$

Not available

74

MTD MC-9017-310508

CAP, ANTI-DUST

$

$

Not available

75

MTD MC-6SDABB04-08

SCREW

$

$

Not available

76

MTD 9SKKBY8/16-0.5

SCREW
(Superseded to 710-04493)

$

$

Not available

77

MTD MC-9228-310515

DRUM ASS'Y

$

$

Not available

78

MTD MC-9228-310528

CLUTCH ASS'Y

$

$

Not available

79

MTD MC-9077-310501

CAP, ANTI-DUST

$

$

Not available

80

MTD MC-9NHC-09

NUT

$

$

Not available

81

MTD MC-9228-310552

BRAKE KIT ASS'Y

$

$

Not available

82

MTD MC-9NAZ-5/16-18

NUT

$

$

Not available

83

MTD MC-9040-310533F

BAR, OREGON

$

$

Not available

84

MTD MC-6220-210805

CHAIN

$

$

Not available

85

MTD 9WFB-4.5-13

WASHER

$

$

Currently unavailable

86

MTD 9SKKBB-04-10

SCREW

$

$

Currently unavailable

87

MTD MC-9042-310201

WRENCH

$

$

Not available

88

MTD MC-9017-310214

BAR COVER

$

$

Not available

89

MTD MC-9120-310201

CARRY CASE

$

$

Not available
