MS 18542 (96044000800) - Murray 42" Lawn Tractor (2013) Electrical Group (96044000800electrical) Parts Diagram

42" Lawn Tractor

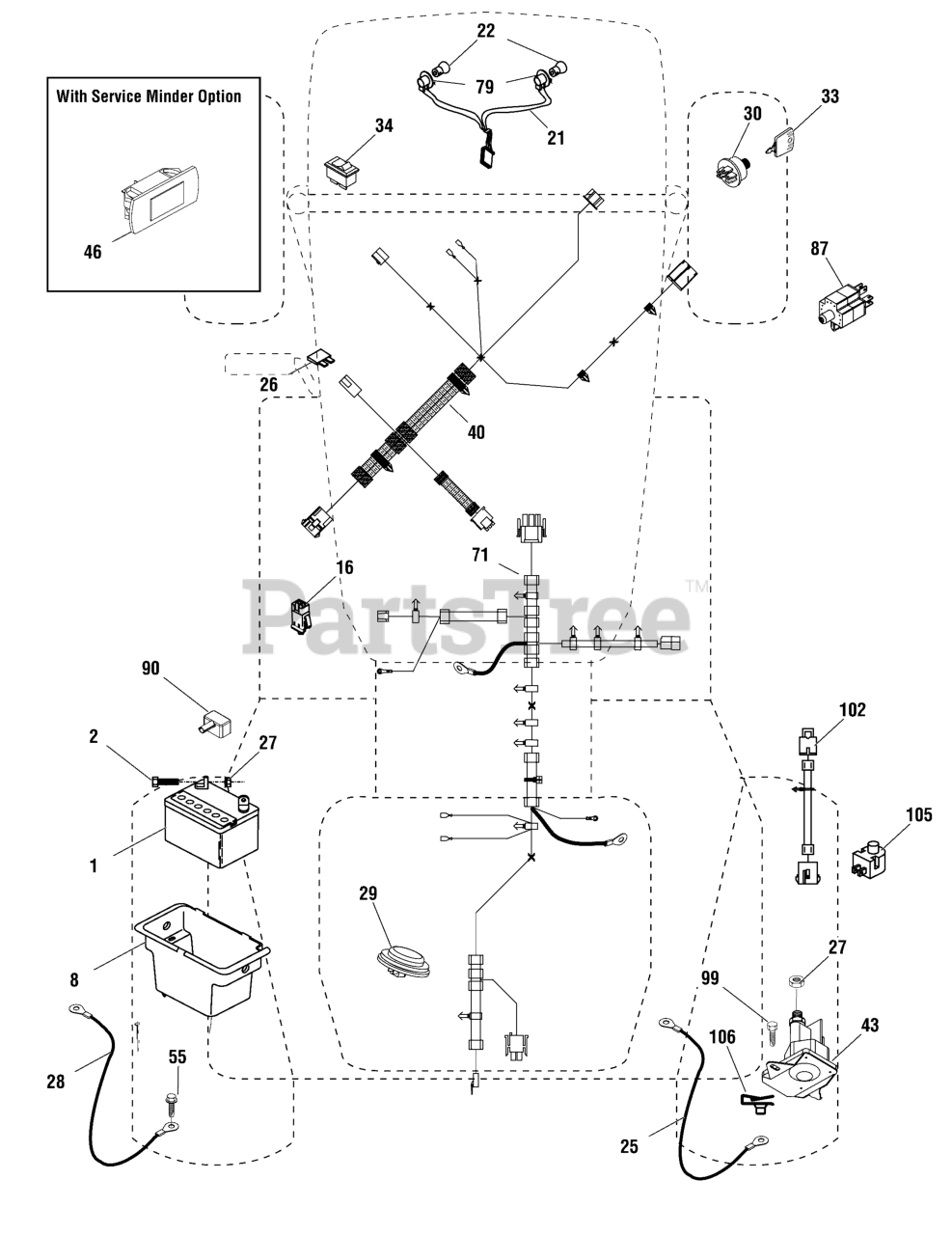

Electrical Group (96044000800electrical) Parts Diagram

  • Title

1

Murray 709116

BATTERY

$216.99

$

In Stock, only 2 left!

0

2

Murray 709438

BOLT, Hex Head, 1/4-20 UNC x 3/4
(Superseded to 705362)

$4.99

$

Usually ships in 2-12 days

0

8

Murray 705062

BOX, Battery

$43.99

$

Usually ships in 2-12 days

0

16

Murray 705042

SWITCH, Interlock Push-In

$21.99

$

In Stock, only 2 left!

0

21

Murray 708202

HARNESS Socket Light w/4152J

$57.99

$

Usually ships in 2-12 days

0

22

Murray 709329

BULB, Light
(Superseded to 704984)

$7.49

$

Usually ships in 2-12 days

0

25

Murray 705273

CABLE, Starter

$6.99

$

Usually ships in 2-12 days

0

26

Murray 705040

FUSE

$7.49

$

Usually ships in 2-12 days

0

27

Murray 709428

NUT, Keps Hex 1/4-20 UNC
(Superseded to 709054)

$4.99

$

Usually ships in 2-12 days

0

28

Murray 705237

CABLE, Ground

$23.99

$

Usually ships in 2-12 days

0

29

Murray 770337

SWITCH, Seat

$55.99

$

Usually ships in 2-12 days

0

30

Murray 705064

SWITCH, Ign

$100.99

$

Usually ships in 2-12 days

0

33

Murray 411935

KEY/CHAIN

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$11.99

$

In Stock, Qty 20+

0

34

Murray 709017

SWITCH, Light / Reset

$6.99

$

In Stock, only 1 left!

0

40

Murray 705271

HARNESS, Ignition Dash

$60.99

$

Usually ships in 2-12 days

0

43

Murray 705055

SOLENOID

$44.99

$

Usually ships in 2-12 days

0

55

Murray 709152

SCREW, Thread Rolling, 5/16-18 x 3/4

$12.99

$

Usually ships in 2-12 days

0

71

Murray 705270

HARNESS, Ignition Chassis

$81.99

$

Usually ships in 2-12 days

0

79

Murray 709171

BULBHOLDER, Assembly Incandescent

$13.99

$

Usually ships in 2-12 days

0

87

Murray 705118

SWITCH, Interlock Clutch Cable

$36.99

$

Usually ships in 2-12 days

0

90

Murray 709377

COVER, Terminal Battery

$4.99

$

Usually ships in 2-12 days

0

99

Murray 709189

SCREW
(Superseded to 705329)

$4.49

$

Usually ships in 2-12 days

0

102

Murray 581901601

HARNESS, Pigtail

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$20.99

$

In Stock, only 1 left!

0

105

Murray 705177

SWITCH, Reverse

$29.99

$

Usually ships in 2-12 days

0

106

Murray 705034

PALNUT

$6.49

$

Usually ships in 2-12 days

0
