MS 18542 (96044000800) - Murray 42" Lawn Tractor (2013) Engine Group (96044000800engine) Parts Diagram

42" Lawn Tractor

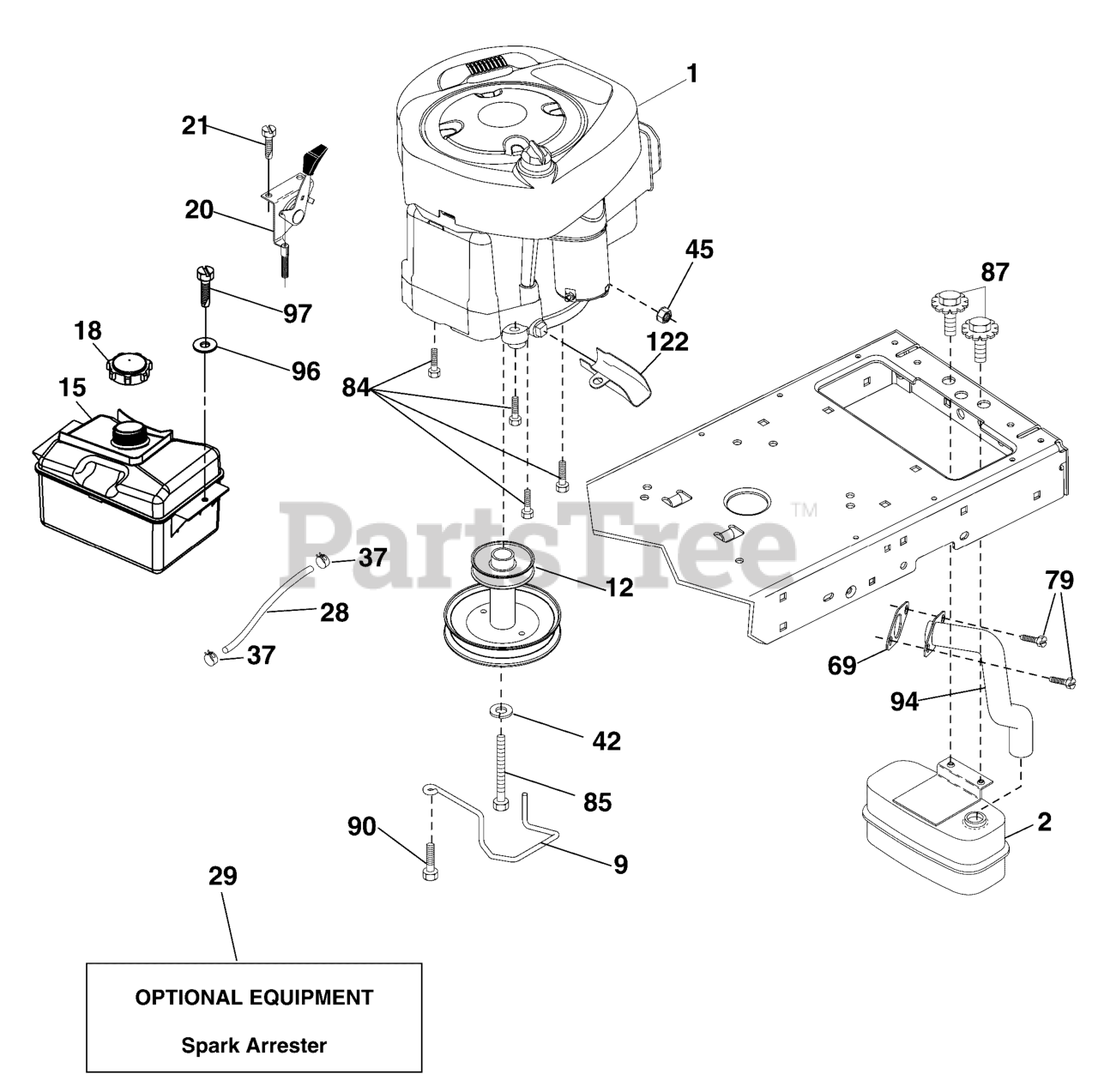

Engine Group (96044000800engine) Parts Diagram

  • Title

1

*ENGINE, B&S Model No.

Note: 33R777-0003-G1 (585564601)

$

$

Not available

2

Murray 705267

MUFFLER
(Superseded to 709843)

$91.99

$

Usually ships in 2-12 days

0

9

Murray 708240

KEEPER, Belt Engine

$24.99

$

Usually ships in 2-12 days

0

12

Murray 708363

PULLEY, Engine

$131.99

$

Usually ships in 2-12 days

0

15

Murray 433003

TANK, Fuel

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

18

Murray 705272

CAP, Assembly Fuel

$101.99

$

In Stock, only 1 left!

0

20

Murray 170545

CONTROL, Throttle/Choke

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

21

Murray 709330

SCREW, BOS Thread, 10 x .750

$3.99

$

Usually ships in 2-12 days

0

28

Murray 709299

LINE, Fuel

$27.99

$

Usually ships in 2-12 days

0

29

Murray 709065

KIT, Spark Arrester

$103.99

$

Usually ships in 2-12 days

0

37

Murray 709034

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

42

Murray 709004

WASHER, Lock, 7/16

$5.49

$

In Stock, only 1 left!

0

45

Murray 709428

NUT, Keps Hex 1/4-20 UNC

$4.49

$

In Stock, only 2 left!

0

69

Murray 709117

GASKET

$23.99

$

Usually ships in 2-12 days

0

79

Murray 709243

SCREW, 5/16-18 x .75

$3.99

$

Usually ships in 2-12 days

0

84

Murray 709153

SCREW, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

85

Murray 709157

BOLT, Hex, 7/16-20 x 4 x Gr. 5-1.5

$5.99

$

Usually ships in 2-12 days

0

87

Murray 705031

BOLT, 5/16-18 UNC x 3/4

$7.49

$

In Stock, only 2 left!

0

90

Murray 709149

SCREW, 3/8-16 x 1.0

$9.99

$

Usually ships in 2-12 days

0

94

Murray 705289

TUBE, Exhaust

$29.99

$

Usually ships in 2-12 days

0

96

Murray 709223

WASHER, 9/32 x 7/8 x 16 Ga.
(Superseded to 705332)

$7.49

$

Usually ships in 2-12 days

0

97

Murray 709189

SCREW, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

122

Murray 709348

EXTENSION, Drain
(Superseded to 705238)

$6.49

$

Usually ships in 2-12 days

0
