MS 18542 (96044000800) - Murray 42" Lawn Tractor (2013) Mower Deck Group (96044000800deck) Parts Diagram

42" Lawn Tractor

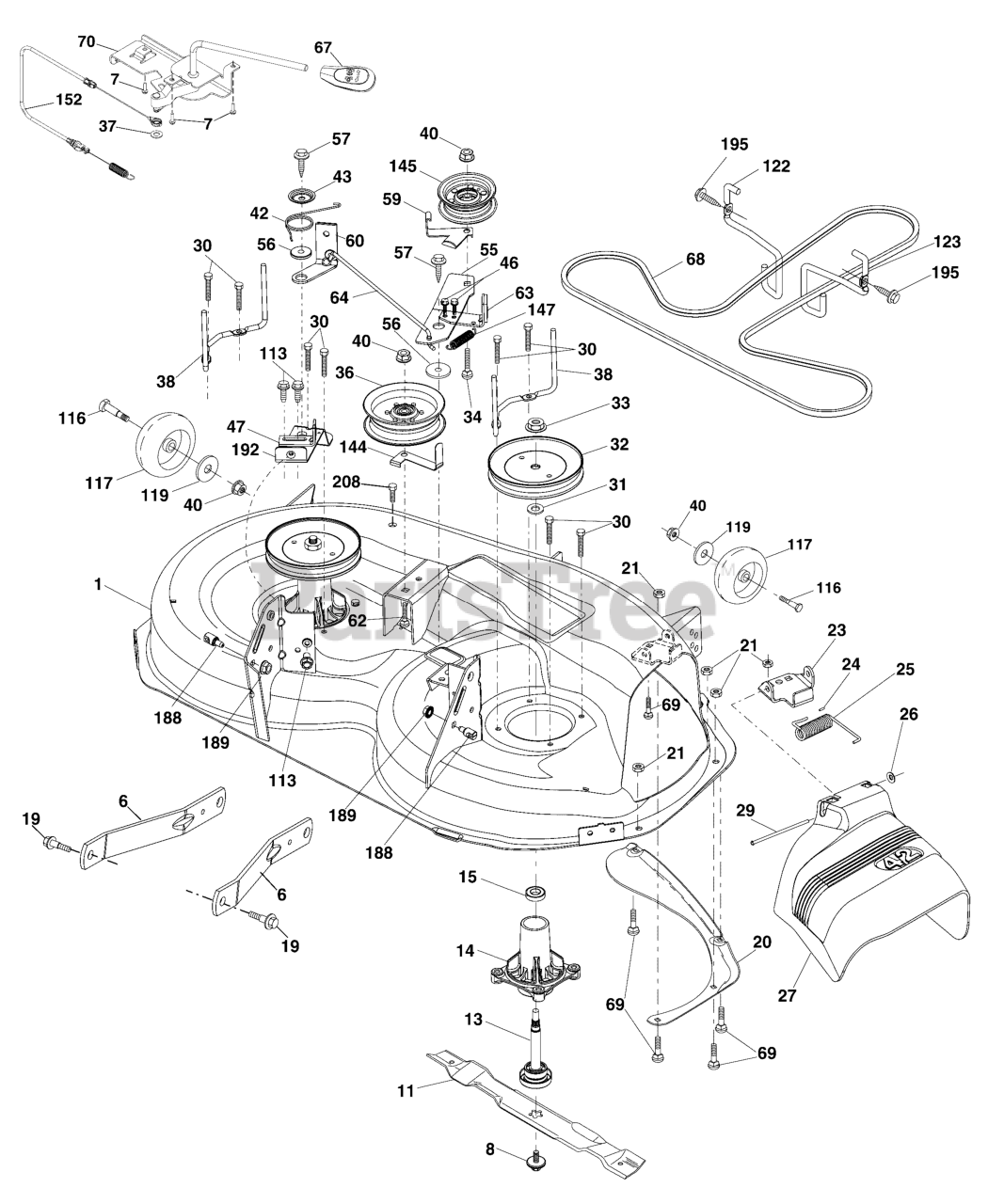

Mower Deck Group (96044000800deck) Parts Diagram

  • Title

1

Murray 196495

HOUSING, Mower

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Currently unavailable

2

Murray 709423

BOLT, Round Head Square Neck, 5/16-18 UNC x 3/4

$4.49

$

Usually ships in 2-12 days

0

6

Murray 705090

ARM, Suspension

$26.99

$

Usually ships in 2-12 days

0

7

Murray 709330

SCREW, BOS Thread, 10 x .750

$3.99

$

Usually ships in 2-12 days

0

8

Murray 709258

BOLT/WASHER, Assembly 7/16-20 UNF
(Superseded to 705059)

$19.99

$

In Stock, only 2 left!

0

11

Murray 704429

BLADE, (For bagging or discharge)

$36.99

$

In Stock, Qty 5

0

13

Murray 705058

SHAFT, Assembly Mandrel
(Superseded to 705057)

$106.99

$

Usually ships in 2-12 days

0

14

Murray 705048

HOUSING, Mandrel
(Superseded to 705057)

$106.99

$

Usually ships in 2-12 days

0

15

Murray 704992

BEARING, Ball, Mandrel

$23.99

$

In Stock, only 1 left!

0

19

Murray 705100

BOLT, Shoulder

$15.99

$

Usually ships in 2-12 days

0

20

Murray 709112

BAFFLE, Vortex
(Superseded to 705026)

$54.99

$

In Stock, only 2 left!

0

21

Murray 709430

NUT, Crownlock, 5/16-18 UNC
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

23

Murray 709247

BRACKET, Deflector

$5.99

$

Usually ships in 2-12 days

0

24

Murray 709007

CAP, Sleeve

$3.99

$

Usually ships in 2-12 days

0

25

Murray 709286

SPRING, Torsion, Deflector
(Superseded to 705103)

$18.99

$

Usually ships in 2-12 days

0

26

Murray 709016

NUT, Push
(Superseded to 704991)

$7.99

$

In Stock, only 2 left!

0

27

Murray 708604

SHIELD, Deflector
(Superseded to 705149)

$120.99

$

Usually ships in 2-12 days

0

29

Murray 709051

ROD, Hinge
(Superseded to 705009)

$7.99

$

In Stock, only 1 left!

0

30

Murray 709158

SCREW, Thread Rolling Washer Head
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

31

Murray 709215

WASHER, Spacer
(Superseded to 705050)

$7.99

$

In Stock, only 3 left!

0

32

Murray 705115

PULLEY, Mandrel
(Superseded to 709731)

$34.99

$

In Stock, only 1 left!

0

33

Murray 709296

NUT, Toplock, Flanged
(Superseded to 705134)

$11.99

$

In Stock, only 1 left!

0

34

Murray 709417

BOLT, Carraige, 3/8-16 x 1-1/2, Gr 5

$4.99

$

Usually ships in 2-12 days

0

36

Murray 705114

PULLEY, Idler
(Superseded to 709729)

$70.99

$

In Stock, only 4 left!

0

37

Murray 709228

WASHER, 13/32 x 13/16 x 16 Ga.

$4.49

$

Usually ships in 2-12 days

0

38

Murray 705248

KEEPER, Belt LH Mandrel

$17.99

$

Usually ships in 2-12 days

0

40

Murray 709088

NUT, Lock Flange, 3/8-16 UNC

$8.99

$

In Stock, only 3 left!

0

42

Murray 705123

SPRING, Torsion Brake

$9.99

$

Usually ships in 2-12 days

0

43

Murray 705108

SPRING, Torsion Retainer

$8.49

$

Usually ships in 2-12 days

0

46

Murray 709067

SCREW, Thread Rolling, 1/4-20 x 5/8
(Superseded to 705013)

$8.99

$

In Stock, only 1 left!

0

47

Murray 705105

BRACKET, Clutch Cable

$8.99

$

Usually ships in 2-12 days

0

55

Murray 705254

ARM, Idler

$16.99

$

Usually ships in 2-12 days

0

56

Murray 705124

SPACER, Retainer

$12.99

$

In Stock, Qty 5

0

57

Murray 709149

SCREW, Hex Washer, 3/8-16 x 1

$9.99

$

Usually ships in 2-12 days

0

59

Murray 709079

GUARD, Tuv Idler (94)
(Superseded to 705018)

$9.99

$

Usually ships in 2-12 days

0

60

Murray 705112

ARM, Brake Mower

$37.99

$

Usually ships in 2-12 days

0

62

Murray 705342

BOLT, Round Head Square Neck, 3/8-16 UNC x 2

$6.99

$

Usually ships in 2-12 days

0

63

Murray 705128

ARM, Brake Mower

$41.99

$

Usually ships in 2-12 days

0

64

Murray 708340

LINKAGE, Brake

$33.99

$

Usually ships in 2-12 days

0

67

Murray 770320

HANDLE, Clutch Cable

$14.99

$

Usually ships in 2-12 days

0

68

Murray 704430

V-BELT

$131.99

$

In Stock, only 1 left!

0

69

Murray 709422

BOLT, Round Head Square Neck, 5/16-18 x 5/8
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

70

Murray 708326

CLUTCH, Assembly Manual

$102.99

$

Usually ships in 2-12 days

0

113

Murray 709147

SCREW, 5/16-18
(Superseded to 705320)

$10.99

$

Usually ships in 2-12 days

0

116

Murray 4898H

BOLT, Shoulder

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

117

Murray 188606

WHEEL, Gauge

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

119

Murray 19121414

WASHER, 13/32 x 7/8 x 14 Ga.

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

122

Murray 705109

KEEPER, Belt Engine LH

$

$

Not available

123

Murray 705110

KEEPER, Belt Engine RH

$32.99

$

In Stock, only 1 left!

0

144

Murray 705126

KEEPER, Belt

$13.99

$

Usually ships in 2-12 days

0

145

Murray 705061

PULLEY, Idler Flat
(Superseded to 708000)

$60.99

$

Usually ships in 2-12 days

0

147

Murray 705148

SPRING, Return

$12.99

$

Usually ships in 2-12 days

0

152

Murray 705292

CABLE, Clutch Manual w/Spr.

$70.99

$

In Stock, Qty 5

0

188

Murray 705088

STUD, Fastener

$12.99

$

In Stock, only 2 left!

0

189

Murray 708491

NUT, Lock Hex Flange

$7.99

$

Usually ships in 2-12 days

0

192

Murray 705111

BRACKET, Brake Stand LH

$29.99

$

Usually ships in 2-12 days

0

195

Murray 709148

SCREW, Hex Washer, 3/8-16 x 3/4

$7.49

$

In Stock, only 1 left!

0

208

Murray 709191

SCREW, 3/8-16 x 1/2

$4.49

$

Usually ships in 2-12 days

0

--

Murray 199608

MOWER, Replacement Complete

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$787.99

$

Usually ships in 3-10 days

0

--

Murray 705057

MANDREL, Assembly

Note: (Includes Ref Nos: 13, 14, & 15)

$106.99

$

Usually ships in 2-12 days

0
