MS 18542 (96044000800) - Murray 42" Lawn Tractor (2013) Mower Lift Group (96044000800lift) Parts Diagram

42" Lawn Tractor

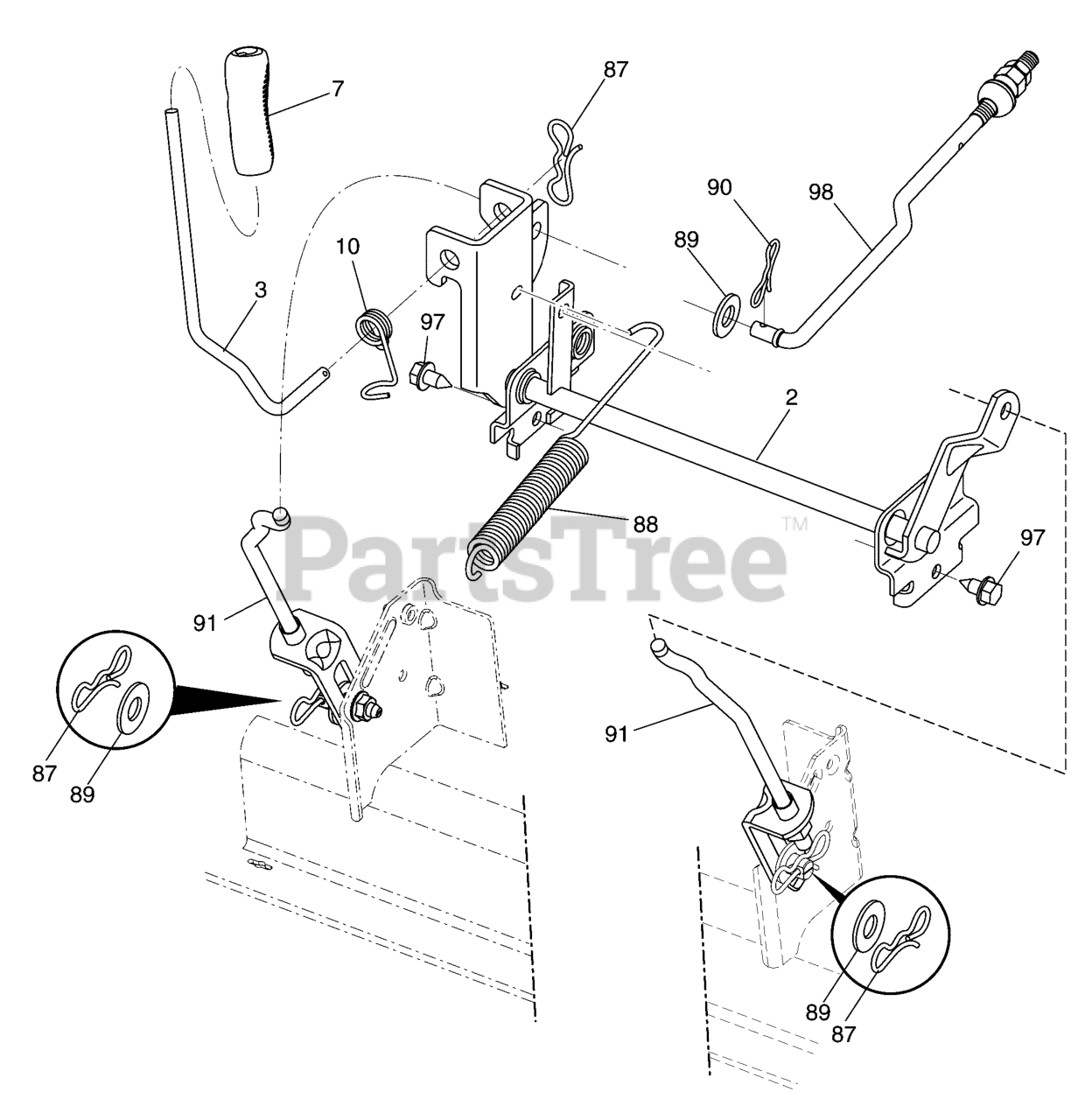

Mower Lift Group (96044000800lift) Parts Diagram

  • Title

2

Murray 705239

SHAFT, Assembly Lift

$110.99

$

Usually ships in 2-12 days

0

3

Murray 705092

LEVER, Assembly Lift RH

$83.99

$

Usually ships in 2-12 days

0

7

Murray 708684

GRIP, Lever
(Superseded to 709728)

$10.99

$

Usually ships in 2-12 days

0

10

Murray 705098

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

87

Murray 709277

PIN, Cotter, Bow Tie Lock, 7/16
(Superseded to 705066)

$7.99

$

In Stock, only 1 left!

0

88

Murray 705183

SPRING, Lift Assist

$17.99

$

Usually ships in 2-12 days

0

89

Murray 770313

WASHER, Clear Zinc

$7.99

$

Usually ships in 2-12 days

0

90

Murray 709276

PIN, Cotter Bow Tie Lock, 5/16

$6.99

$

Usually ships in 2-12 days

0

91

Murray 708322

LINK, Lift Suspension Mower Rear

$66.99

$

Usually ships in 2-12 days

0

97

Murray 709148

SCREW, 3/8-16 x .75
(Superseded to 705322)

$6.49

$

In Stock, only 1 left!

0

98

Murray 420525

LINK, Lift Suspension Mower Front

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Currently unavailable
