MS 18542 (96044000800) - Murray 42" Lawn Tractor (2013) Seat Group (96044000800seat) Parts Diagram

42" Lawn Tractor

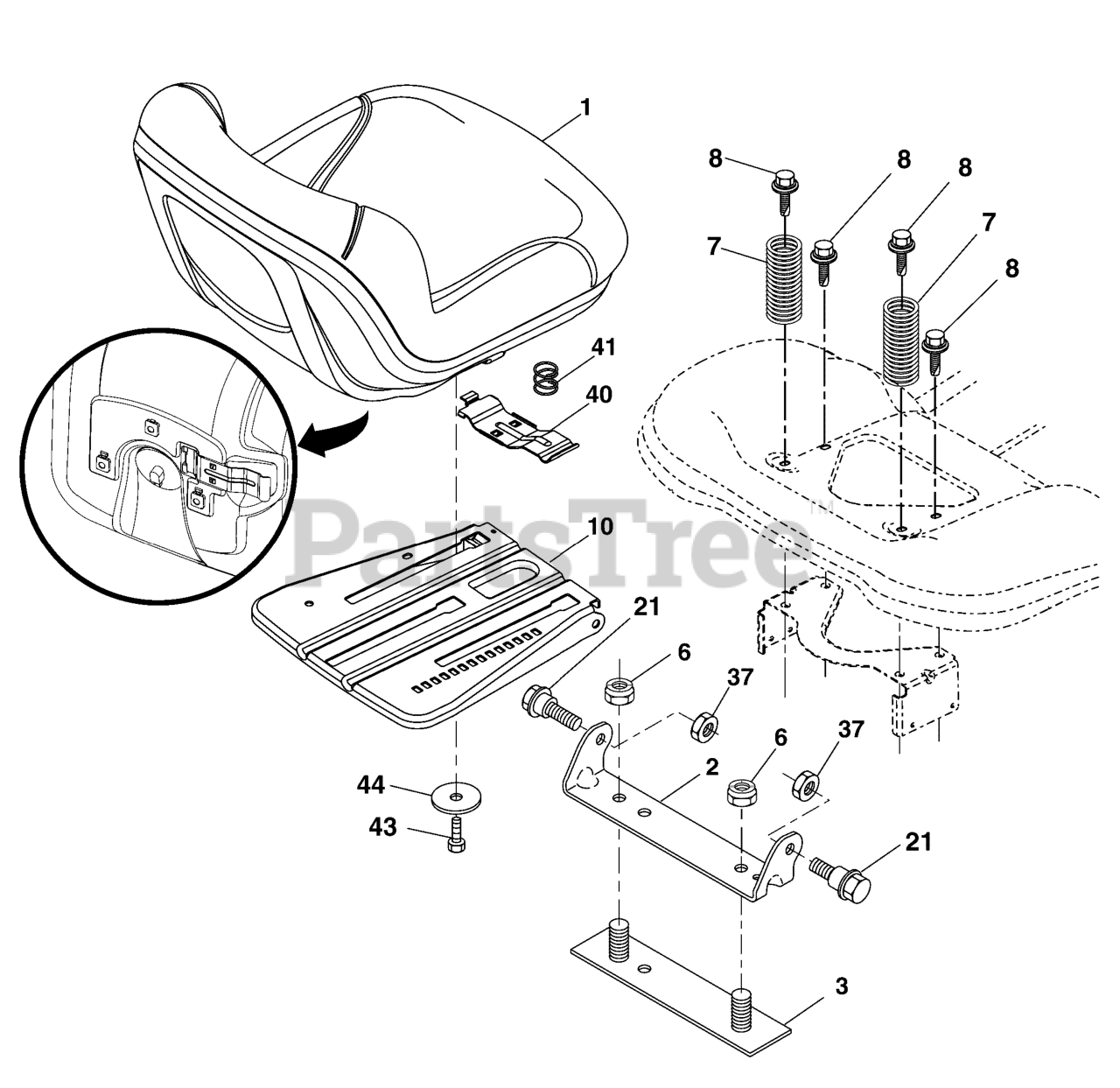

Seat Group (96044000800seat) Parts Diagram

  • Title

1

Murray 411405

SEAT

Note: (This product is not serviced by Briggs & Stratton. For Parts and service, please contact Husqvarna Outdoor Products (HOP) via www.husqvarna.com. Or use our dealer locator at www.murray.com to find your nearest dealer.)

$

$

Not available

2

Murray 705043

BRACKET, Pivot Fender

$12.99

$

Usually ships in 2-12 days

0

3

Murray 708024

STRAP, Assembly Fender

$9.49

$

Usually ships in 2-12 days

0

6

Murray 709433

NUT, Lock w/Insert, 3/8-16 UNC

$4.49

$

Usually ships in 2-12 days

0

7

Murray 709040

SPRING, Seat

$7.99

$

Usually ships in 2-12 days

0

8

Murray 705031

BOLT, SEMS, 5/16-18 UNC x 3/4

$7.49

$

Usually ships in 2-12 days

0

10

Murray 705102

PAN, Seat

$83.99

$

Usually ships in 2-12 days

0

21

Murray 709154

BOLT, Shoulder, 5/16-18
(Superseded to 705030)

$7.99

$

Usually ships in 2-12 days

0

37

Murray 705350

NUT, Lock, 5/16-18 UNC

$5.99

$

Usually ships in 2-12 days

0

40

Murray 708319

HANDLE, Slide

$9.99

$

Usually ships in 2-12 days

0

41

Murray 705122

SPRING, Latch

$9.49

$

Usually ships in 2-12 days

0

43

Murray 705365

BOLT, 3/8-16 UNC x 3/4

$5.99

$

In Stock, only 1 left!

0

44

Murray 705337

WASHER, 13/32 x 2 3/8 x 12 Ga.

$10.99

$

Usually ships in 2-12 days

0
