MS 2550 (41BDZ20C768) - Murray Pro String Trimmer General Assembly Parts Diagram

Pro String Trimmer

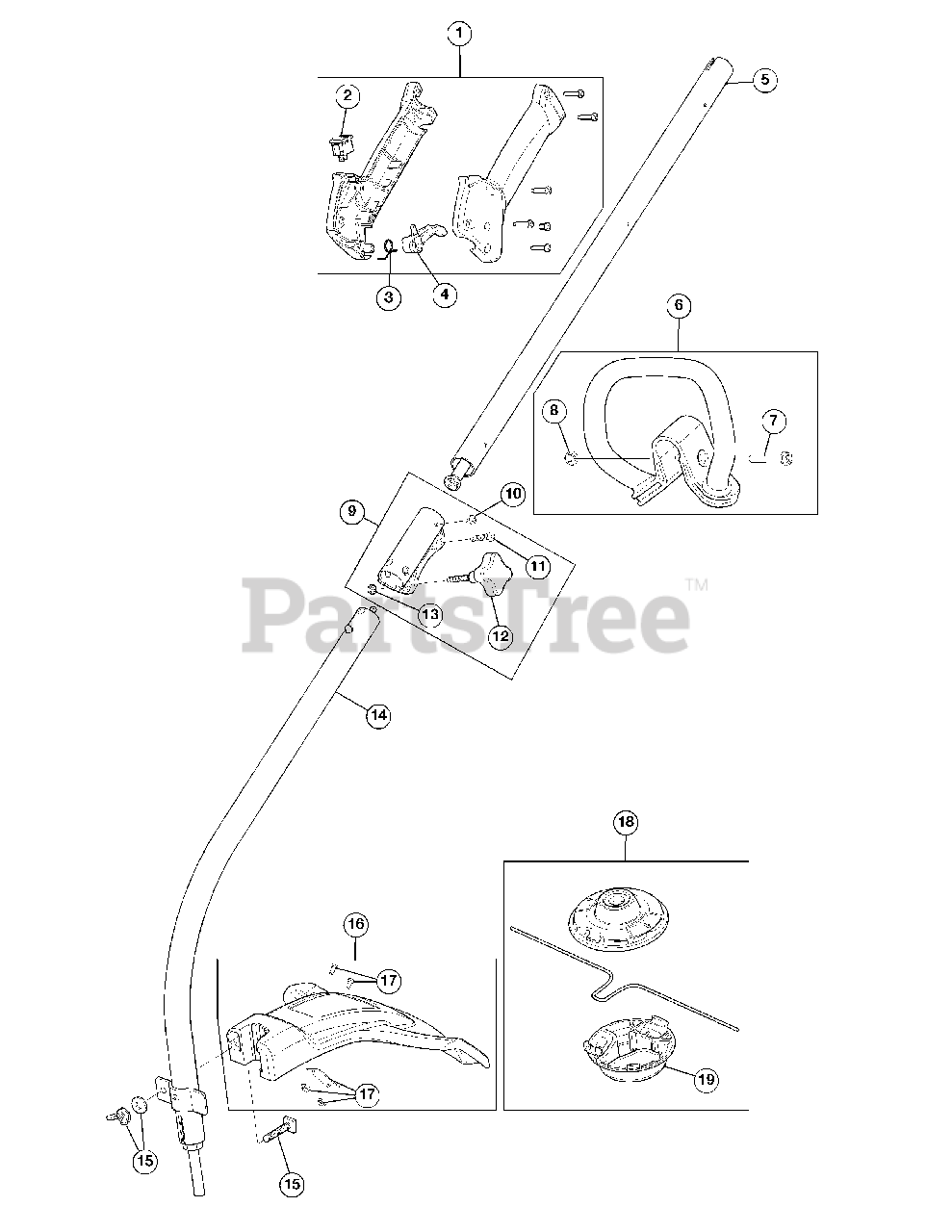

General Assembly Parts Diagram

  • Title

1

MTD 753-06790

Throttle Housing Assembly (Incl. 2 - 4)

$12.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, Qty 14

0

4

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 20+

0

5

MTD 753-04344

Upper Shaft Housing Assembly

$85.99

$

In Stock, Qty 8

0

6

MTD 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 5

0

7

MTD 753-06040

D-Handle Bolt

$6.99

$

In Stock, Qty 7

0

8

MTD 712-0324

D-Handle Nut

$3.99

$

In Stock, Qty 20+

0

9

MTD 753-1190

Split Boom Coupler Assembly (Incl. 10 - 13)

$23.99

$

In Stock, only 4 left!

0

10

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, Qty 11

0

11

MTD 791-181617

Screw

$5.49

$

In Stock, Qty 13

0

12

MTD 791-181981

Adjustment Knob
(Superseded to 697-00661-9)

$7.49

$

In Stock, only 1 left!

0

13

MTD 712-04018A

Knob Retainer Nut

$4.49

$

In Stock, Qty 6

0

14

MTD 753-06865

Lower Shaft Housing Assembly

$23.99

$

In Stock, Qty 5

0

15

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 3 left!

0

16

MTD 753-04283

Shield Assembly (Incl. 17)

$50.99

$

In Stock, only 3 left!

0

17

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

18

MTD 753-08169

Cutting Head Assembly (Incl. 19)

$13.99

$

In Stock, Qty 18

0

19

MTD 753-08170

Glide Cap

$4.99

$

In Stock, Qty 20+

0
