MS 355 G - Husqvarna Masonry Saw (2010-06) SAW HEAD Parts Diagram

Masonry Saw

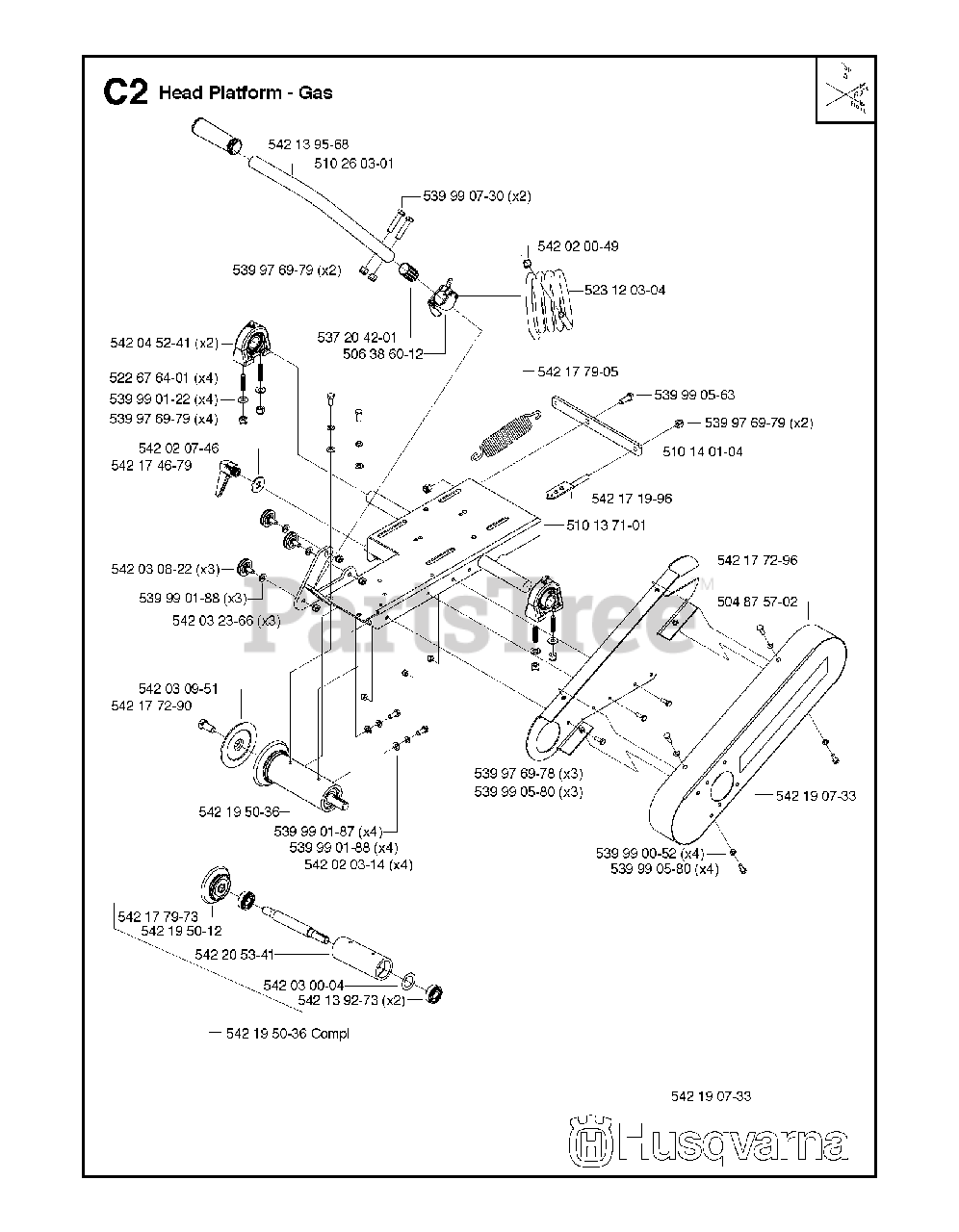

SAW HEAD Parts Diagram

  • Title

542 20 53-41

$

$

Not available

539 99 07-30

Husqvarna 539 99 07-30

SCREW

$3.99

$

Usually ships in 3-10 days

0

510 26 03-01

Husqvarna Construction 510 26 03-01

HANDLE

$11.43

$

Usually ships in 3-10 days

0

542 13 95-68

Husqvarna Construction 542 13 95-68

GRIP

$6.99

$

In Stock, Qty 10

0

542 02 00-49

Husqvarna Construction 542 02 00-49

HOSE CLAMP

$8.99

$

Usually ships in 3-10 days

0

523 12 03-04

Husqvarna Construction 523 12 03-04

HOSE

$38.50

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539 97 69-79

NUT
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

537 20 42-01

Husqvarna Construction 537 20 42-01

CONDUIT

$

$

Not available

506 38 60-12

Husqvarna 506 38 60-12

VALVE ASSY

$32.99

$

In Stock, Qty 10

0

522 67 64-01

Husqvarna Construction 522 67 64-01

SCREW

$1.99

$

Usually ships in 3-10 days

0

542 04 52-41

Husqvarna Construction 542 04 52-41

BEARING

$53.99

$

In Stock, Qty 6

0

539 97 69-79

Husqvarna 539 97 69-79

NUT
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 99 01-22

Husqvarna 539 99 01-22

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

542 17 46-79

Husqvarna Construction 542 17 46-79

LEVER

$83.99

$

In Stock, only 2 left!

0

542 02 07-46

Husqvarna Construction 542 02 07-46

RINGS/

$

$

Not available

542 17 79-05

Husqvarna Construction 542 17 79-05

SPRING

$16.99

$

In Stock, only 1 left!

0

539 99 05-63

Husqvarna 539 99 05-63

SCREW

$1.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539 97 69-79

NUT
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

510 14 01-04

Husqvarna Construction 510 14 01-04

BRACKET

$26.99

$

Usually ships in 3-10 days

0

542 17 19-96

Husqvarna Construction 542171996

TBD

$

$

Not available

510 13 71-01

Husqvarna Construction 510 13 71-01

WELDMENT

$265.99

$

Usually ships in 3-10 days

0

542 03 23-66

Husqvarna Construction 542 03 23-66

NUT

$3.49

$

In Stock, only 4 left!

0

539 99 01-88

Husqvarna 539 99 01-88

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

542 03 08-22

Husqvarna Construction 542 03 08-22

FS700/2/900/2 WHEEL SUR/BEARIN

$48.99

$

In Stock, only 3 left!

0

542 17 72-96

Husqvarna Construction 542 17 72-96

SUPPORT

$49.00

$

Usually ships in 3-10 days

0

504 87 57-02

Husqvarna Construction 504 87 57-02

BELT

$458.99

$

In Stock, only 1 left!

0

542 03 09-51

Husqvarna Construction 542 03 09-51

FLANGE

$108.99

$

Usually ships in 3-10 days

0

542 17 72-90

Husqvarna Construction 542 17 72-90

SCREW

$77.99

$

Usually ships in 3-10 days

0

539 99 05-80

Husqvarna 539 99 05-80

SCREW

$3.99

$

Usually ships in 3-10 days

0

539 97 69-78

Husqvarna 539 97 69-78

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

542 19 07-33

Husqvarna Construction 542 19 07-33

DECAL

$14.99

$

Usually ships in 3-10 days

0

542 19 50-36

Husqvarna Construction 542195036

TBD
(Superseded to 542195037)

$575.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539 99 01-87

WASHER
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

539 99 01-88

Husqvarna 539 99 01-88

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

542 02 03-14

Husqvarna Construction 542 02 03-14

SCREW

$1.99

$

Usually ships in 3-10 days

0

539 99 00-52

Husqvarna 539 99 00-52

WASHER

$3.99

$

Usually ships in 3-10 days

0

539 99 05-80

Husqvarna 539 99 05-80

SCREW

$3.99

$

Usually ships in 3-10 days

0

542 17 79-73

Husqvarna Construction 542 17 79-73

COLLAR

$220.99

$

Usually ships in 3-10 days

0

542 19 50-12

Husqvarna Construction 542 19 50-12

BLADE SHAFT

$350.99

$

In Stock, only 1 left!

0

542 03 00-04

Husqvarna Construction 542 03 00-04

SPRING WASHER

$5.49

$

Usually ships in 3-10 days

0

542 13 92-73

Husqvarna Construction 542 13 92-73

BALL BEARING

$15.99

$

In Stock, only 4 left!

0

542 19 50-36

Husqvarna Construction 542195036

TBDCompl.
(Superseded to 542195037)

$575.99

$

Usually ships in 3-10 days

0

542 19 07-33

Husqvarna Construction 542 19 07-33

DECAL

$14.99

$

Usually ships in 3-10 days

0
