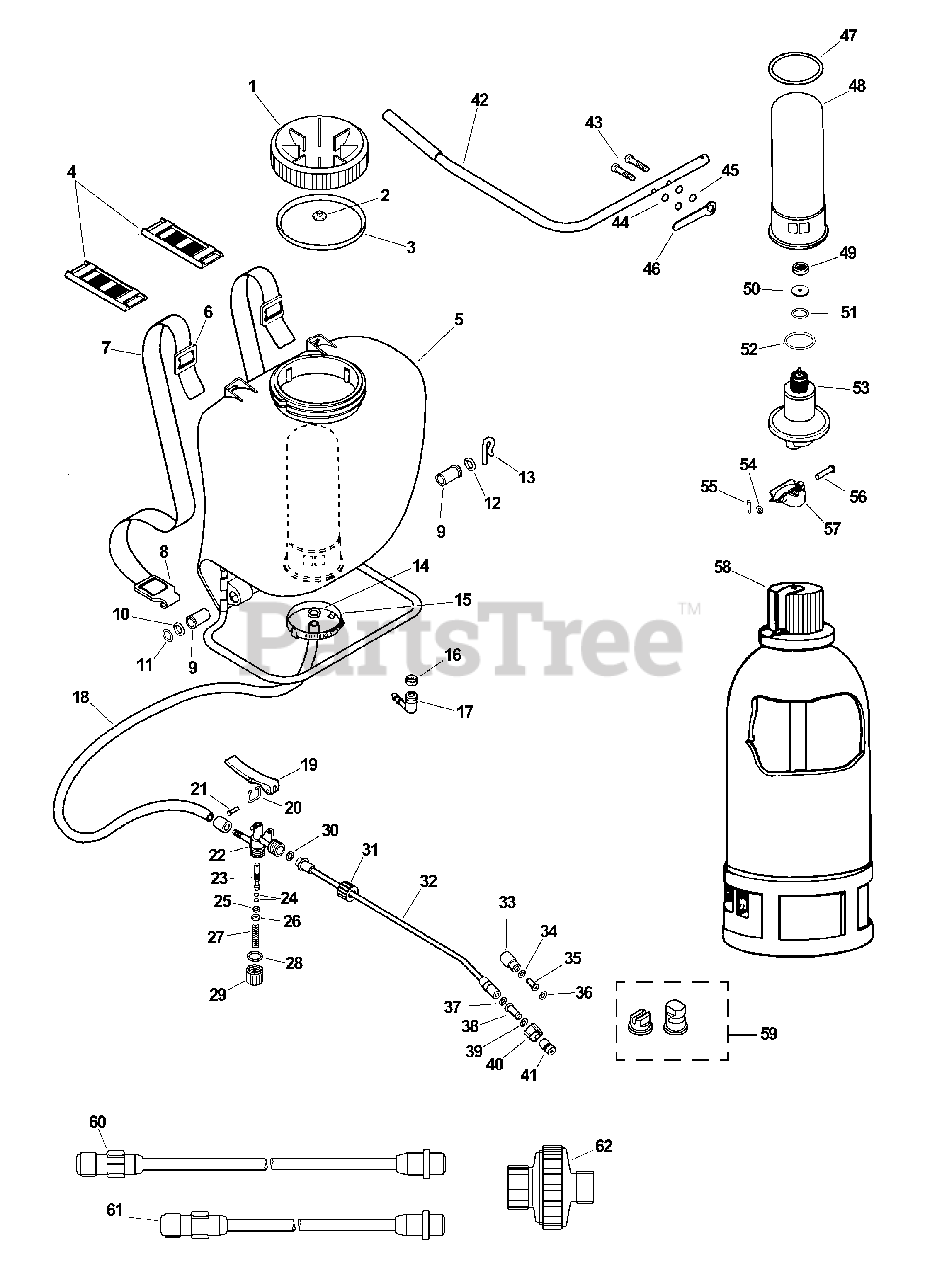

MS-4 - Echo Manual Sprayer, Backpack Unit Complete Parts Diagram

Manual Sprayer, Backpack

Unit Complete Parts Diagram

  • Title

1

Echo 4010503

CAP ASSY

Note: INCLUDES ITEMS 2 & 3

$21.99

$

Usually ships in 2-4 days

0

2

Echo 4020308

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

3

Echo 4020100

SEAL, CAP

$9.49

$

Usually ships in 2-4 days

0

4

Echo 4360000

PAD, SHOULDER STRAP
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

5

Echo 4030503

TANK

$122.99

$

Usually ships in 2-4 days

0

6

Echo 4310000

HOOK

Note: Includes ITEM 8

$9.49

$

In Stock, only 1 left!

0

7

Echo 4150000

STRAP ASSY

Note: (STD); INCLUDES ITEM 4, 7 & 8

$25.99

$

In Stock, only 1 left!

0

8

------------------

HOOK, STRAP

Note: USE ITEM 6

$

$

Not available

9

Echo 4040000

BEARING - NYLON

Note: Includes ITEMS 12-13

$15.99

$

Usually ships in 2-4 days

0

10

------------------

WASHER - NYLON

Note: USE ITEM 9

$

$

Not available

11

------------------

WASHER

Note: USE ITEM 42

$

$

Not available

12

------------------

WASHER - NYLON

Note: USE ITEM 9

$

$

Not available

13

------------------

PIN, SPLIT

Note: USE ITEM 9

$

$

Not available

14

------------------

CLAMP, HOSE

Note: USE ITEM 18

$

$

Not available

15

Echo 4031600

CLAMP

$12.99

$

Usually ships in 2-4 days

0

16

------------------

HOLDER

Note: USE ITEM 17

$

$

Not available

17

Echo 4160000

FITTING - 90°

Note: Includes ITEM 16

$26.99

$

Usually ships in 2-4 days

0

18

Echo 4170000

HOSE

Note: (STD); INCLUDES ITEM 14

$42.99

$

In Stock, only 1 left!

0

18

Echo 4171800

HOSE, RUBBER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

19

------------------

HANDLE, PISTON

Note: USE ITEM 22

$

$

Not available

20

------------------

HOLDER

Note: USE ITEM 31

$

$

Not available

21

------------------

PIN, PISTON

Note: USE ITEM 22

$

$

Not available

22

Echo 4180000

SPRAY PISTOL ASSY

Note: INCLUDES ITEMS 19-21, 23-29

$57.99

$

In Stock, only 2 left!

0

23

Echo 4190000

SPINDLE SET

Note: INCLUDES ITEMS 24-26

$20.99

$

Usually ships in 2-4 days

0

24

Echo 4200000

O-RING KIT

Note: Includes ITEM 28

$19.99

$

Usually ships in 2-4 days

0

25

------------------

STOPPER

Note: USE ITEM 23

$

$

Not available

26

------------------

WASHER - RUBBER

Note: USE ITEM 23

$

$

Not available

27

------------------

SPRING

Note: USE ITEM 29

$

$

Not available

28

------------------

O-RING

Note: USE ITEM 24

$

$

Not available

29

Echo 4210001

PLUG SET
(Superseded to Discontinued)

Note: INCLUDES ITEMS 27 & 28

$

$

Not available

30

------------------

O-RING

Note: USE ITEM 22

$

$

Not available

31

------------------

COUPLER

Note: USE ITEM 32

$

$

Not available

32

Echo 4330000

WAND - ALUMINUM
(Superseded to 4220000)

Note: (STD); INCLUDES ITEMS 30 & 31

$43.99

$

Usually ships in 2-4 days

0

32

Echo 4220000

WAND - BRASS

Note: Includes ITEMS 30-31

$43.99

$

Usually ships in 2-4 days

0

32

Echo 4330000

WAND - PLASTIC
(Superseded to 4220000)

Note: Includes ITEMS 30-31

$43.99

$

Usually ships in 2-4 days

0

33

Echo 4270000

STRAINER, DEBRIS

Note: Includes ITEMS 34-26

$44.99

$

Usually ships in 2-4 days

0

34

------------------

WASHER

Note: USE ITEM 33

$

$

Not available

35

------------------

CORE

Note: USE ITEM 33

$

$

Not available

36

------------------

SCREEN, SPARK ARRESTOR

Note: USE ITEM 33

$

$

Not available

37

------------------

O-RING

Note: USE ITEM 40

$

$

Not available

38

------------------

JET

Note: USE ITEM 41

$

$

Not available

39

Echo 4260000

O-RING
(Superseded to Discontinued)

$

$

Not available

40

Echo 4240000

NOZZLE HOLDER KIT

Note: Includes ITEM 37

$8.49

$

In Stock, only 1 left!

0

41

Echo 4250000

BRASS NOZZLE ASSY
(Superseded to 99944100340)

Note: INCLUDES ITEMS 37-40

$31.99

$

Usually ships in 2-4 days

0

42

Echo 4050500

HANDLE ASSY

Note: INCLUDES ITEMS 10, 43-46

$36.99

$

Usually ships in 2-4 days

0

43

Echo 4060000

SCREW - SET

Note: INCLUDES ITEMS 44 & 45

$8.49

$

Usually ships in 2-4 days

0

44

------------------

WASHER

Note: USE ITEM 43

$

$

Not available

45

------------------

NUT

Note: USE ITEM 43

$

$

Not available

46

------------------

WRENCH

Note: USE ITEM 42

$

$

Not available

47

Echo 4100000

O-RING

$8.99

$

Usually ships in 2-4 days

0

48

Echo 4090000

TANK, PRESSURE
(Superseded to Discontinued)

Note: INCLUDES ITEMS 50

$

$

Not available

49

Echo 4120000

SEAL KIT

Note: INCLUDES ITEMS 50-52

$47.99

$

Usually ships in 2-4 days

0

50

------------------

DISK

Note: USE ITEM 53

$

$

Not available

51

------------------

O-RING

Note: USE ITEM 53

$

$

Not available

52

------------------

O-RING

Note: USE ITEM 53

$

$

Not available

53

Echo 4130000

PUMP MODULE

Note: INCLUDES ITEMS 55-57

$130.99

$

Usually ships in 2-4 days

0

54

------------------

WASHER

Note: USE ITEM 57

$

$

Not available

55

------------------

PIN, SPLIT

Note: USE ITEM 57

$

$

Not available

56

------------------

PIN

Note: USE ITEM 57

$

$

Not available

57

Echo 4140000

CRANKSHAFT ASSY

Note: INCLUDES ITEMS 55-57

$23.99

$

Usually ships in 2-4 days

0

58

Echo 4340000

AGITATOR, REGULATOR

$82.99

$

Usually ships in 2-4 days

0

59

Echo 4251020

SPRAY TIP SET
(Superseded to 99944100350)

$33.99

$

In Stock, only 1 left!

0

60

Echo 99944100220

SPRAY WAND, BRASS 66-1/2 INCH

Note: ACCESSORY

$68.73

$

In Stock, only 1 left!

0

61

Echo 99944100240

SPRAY WAND, BRASS 26-1/2 INCH

Note: ACCESSORY

$51.99

$

Usually ships in 2-4 days

0

62

Echo 99944100230

STRAINER, DEBRIS

Note: ACCESSORY

$10.99

$

Usually ships in 2-4 days

0
