MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 600000 - 669999) (2006) Gear Case Assembly Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

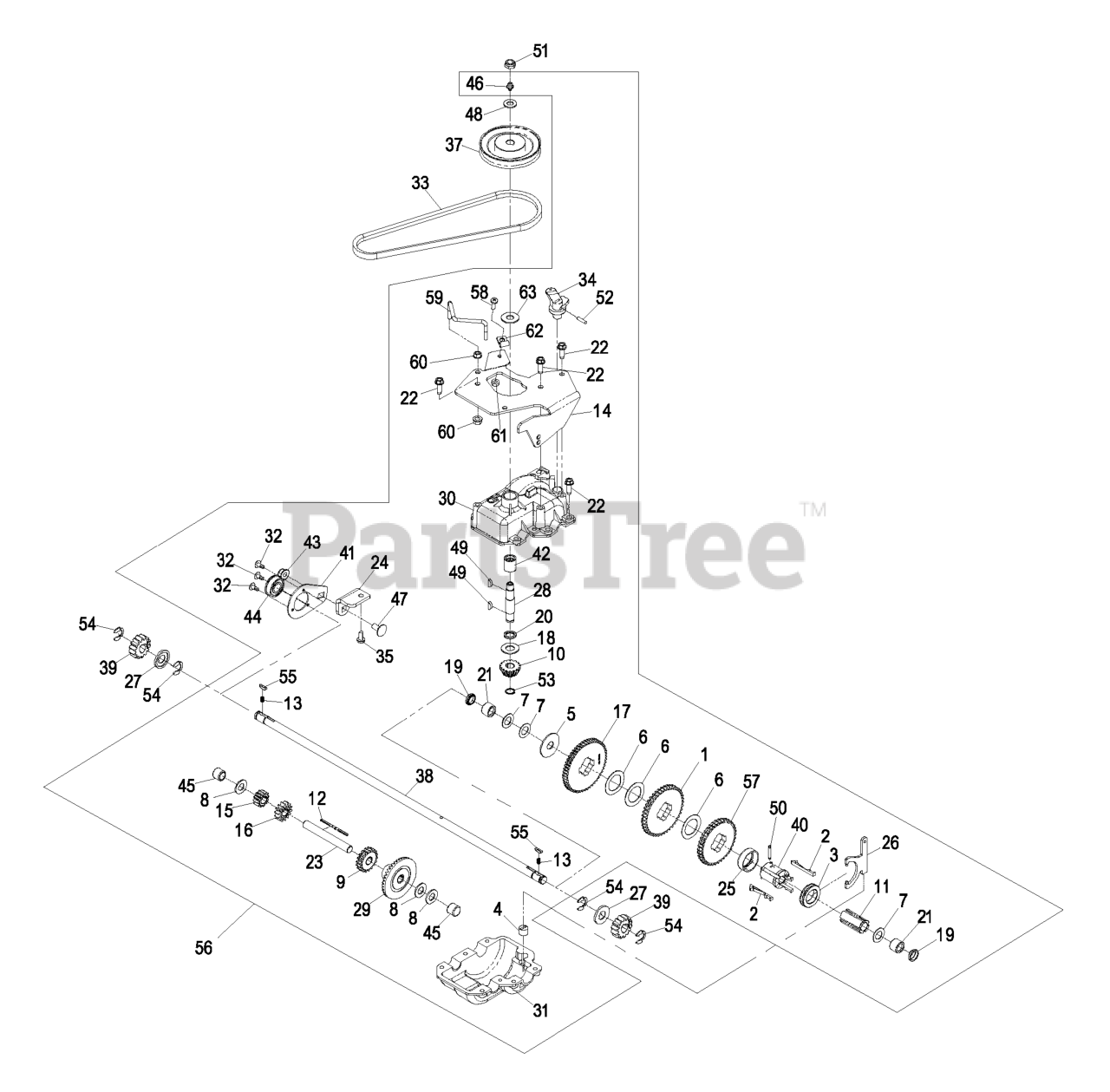

Gear Case Assembly Parts Diagram

  • Title

1

Exmark 29-9271

GEAR-42T

$100.99

$

Usually ships in 3-6 days

0

2

Exmark 29-9330

KEY-SHIFT

$29.99

$

In Stock, Qty 6

0

3

Exmark 29-9340

COLLAR-SHIFT

$47.99

$

Usually ships in 3-6 days

0

4

Exmark 29-9570

BUSHING-YOKE

$12.99

$

In Stock, only 3 left!

0

5

Exmark 29-9690

WASHER

$

$

Not available

6

Exmark 36-4770

WASHER

$6.99

$

Usually ships in 3-6 days

0

7

Exmark 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 11

0

8

Exmark 36-4792

WASHER-THRUST

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 39-6650

GEAR-18T

$15.99

$

In Stock, only 2 left!

0

10

Exmark 39-6660

PINION-BEVEL

$44.99

$

In Stock, only 1 left!

0

11

Exmark 39-6720

SLEEVE

$18.99

$

Usually ships in 3-6 days

0

12

Exmark 39-7842

KEY

$2.99

$

In Stock, Qty 13

0

13

Exmark 39-9650

SPRING-COMPRESSION

$3.99

$

In Stock, Qty 20+

0

14

Exmark 103-8221-03

116-0339-03
(Superseded to 116-0339-03)

$

$

Not available

15

Exmark 46-3540

GEAR-12T

$15.99

$

In Stock, Qty 5

0

16

Exmark 46-3550

GEAR-14T

$24.99

$

Usually ships in 3-6 days

0

17

Exmark 46-3560

GEAR

$84.99

$

In Stock, only 1 left!

0

18

Exmark 47-2910

WASHER-THRUST

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 47-6730

SEAL-OIL

$15.99

$

In Stock, Qty 14

0

20

Exmark 47-7260

SEAL

$10.99

$

In Stock, only 2 left!

0

21

Exmark 48-2060

117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 7

0

22

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

23

Exmark 53-7950

SHAFT-INTERMEDIATE

$61.99

$

In Stock, only 1 left!

0

24

Exmark 103-8237-03

BRACKET-BEARING

$

$

Not available

25

Exmark 55-8020

RETAINER-KEY

$11.99

$

Usually ships in 3-6 days

0

26

Exmark 60-8870

YOKE-SHIFT

$26.99

$

In Stock, only 2 left!

0

27

Exmark 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 9

0

28

Exmark 13-5149

INPUT SHAFT ASM

$109.99

$

Usually ships in 3-6 days

0

29

Exmark 74-1760

GEAR-BEVEL

$44.99

$

Usually ships in 3-6 days

0

30

Exmark 109-0170

ASM,GEAR CASE W/BRG

$99.99

$

Usually ships in 3-6 days

0

31

Exmark 74-1920

119-7863
(Superseded to 119-7863)

$52.99

$

Usually ships in 3-6 days

0

32

Exmark 92-9665

SCREW-TAP

$7.49

$

In Stock, Qty 19

0

33

Exmark 103-6114

BELT-V, TRACTION
(Superseded to 103-6114-SL)

$45.99

$

In Stock, only 4 left!

0

34

Exmark 103-6138

LEVER-SHIFT

$

$

Not available

35

Exmark 103-6159

SCREW-TP

$6.99

$

Usually ships in 3-6 days

0

37

Exmark 103-6429

SHEAVE

$67.99

$

Usually ships in 3-6 days

0

38

Exmark 103-6435

SHAFT-AXLE

$142.99

$

In Stock, only 1 left!

0

39

Exmark 103-6436

GEAR-PINION

$19.99

$

In Stock, only 3 left!

0

40

Exmark 109-2642

SLEEVE-4 DOG

$65.99

$

Usually ships in 3-6 days

0

41

Exmark 103-6458

109-6612
(Superseded to 109-6612)

$

$

Not available

42

Exmark 103-9773

BEARING-ROLLER, CAGED

$27.99

$

Usually ships in 3-6 days

0

43

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

44

Exmark 251-180

116-7257
(Superseded to 116-7257)

$19.99

$

In Stock, only 1 left!

0

45

Exmark 252-103

BEARING-NEEDLE, CLOSED

$27.99

$

In Stock, only 2 left!

0

46

Exmark 302-63

FITTING-GREASE, ZERK

$3.49

$

In Stock, Qty 19

0

47

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

48

Exmark 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

49

Exmark 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

50

Exmark 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 20+

0

51

Exmark 3296-5

NUT-HEX

$3.99

$

In Stock, only 4 left!

0

52

Exmark 32121-99

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

53

Exmark 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

54

Exmark 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

55

Exmark 612066

KEY

$2.99

$

In Stock, Qty 20+

0

56

Exmark 109-3552

116-0785
(Superseded to 116-0785)

$

$

Not available

57

Exmark 109-3130

GEAR-38T

$

$

Not available

58

Exmark 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 2 left!

0

59

Exmark 103-8224

GUIDE-BELT

$20.99

$

Usually ships in 3-6 days

0

60

Exmark 33128-33

Nut, Whizlock 1/4-20

$

$

Currently unavailable

61

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

62

Exmark 2412-32

R-CLAMP

$9.49

$

Usually ships in 3-6 days

0

63

Exmark 109-3614

WASHER

$7.49

$

In Stock, only 1 left!

0
