MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6HP Kawasaki (SN: 720000 - 789999) (2008)

26" Metro Walk-Behind Mower, 6HP Kawasaki

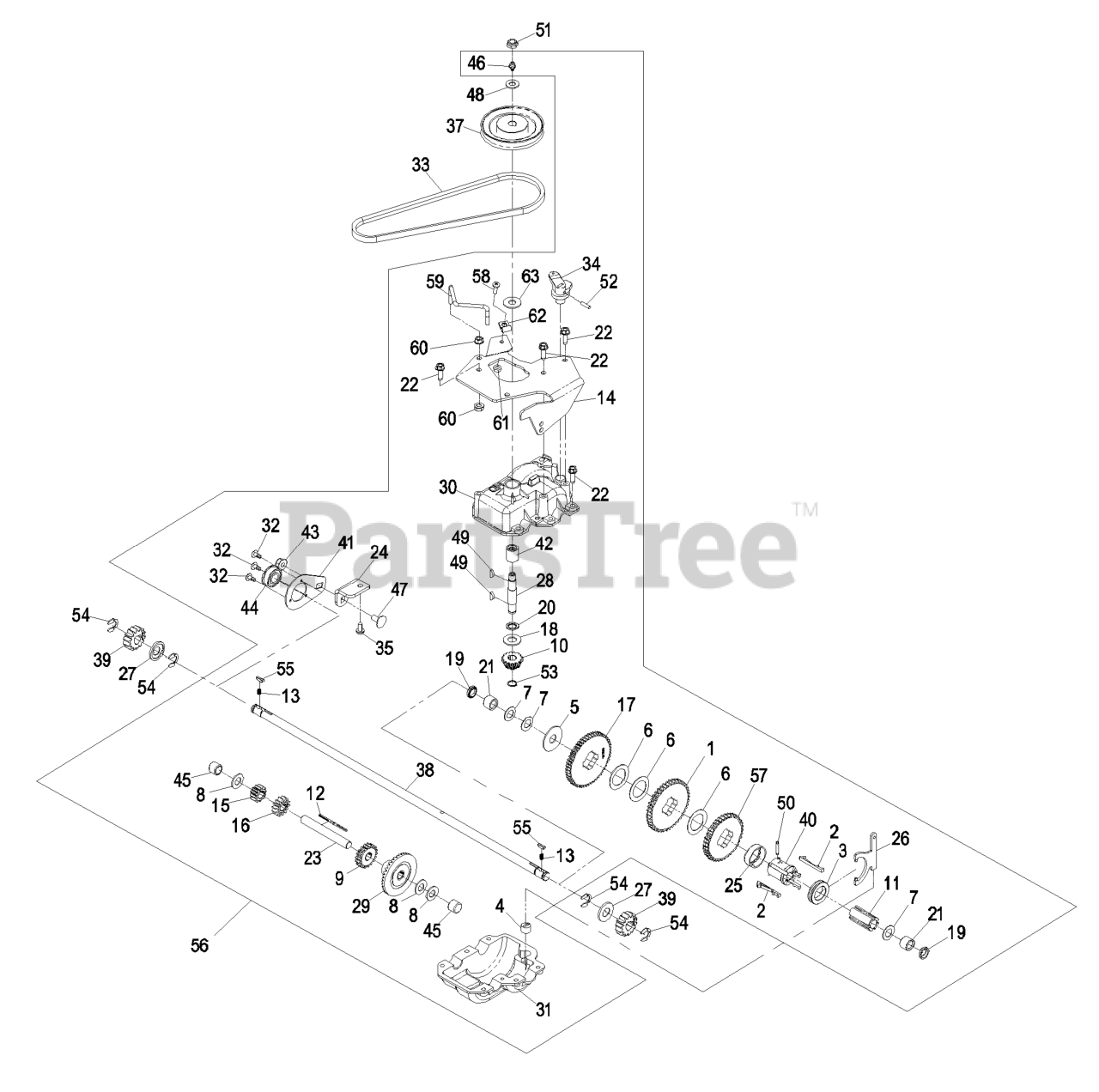

MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6HP Kawasaki (SN: 720000 - 789999) (2008) > Parts Diagrams (9) > Gear Case Assembly

  • Title
29-9271

1

Gear, 42t

Part# 29-9271

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.61

29-9330

2

Key, Shift

Part# 29-9330

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $20.62

29-9340

3

Collar, Shift

Part# 29-9340

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.19

29-9570

4

Bushing, Yoke

Part# 29-9570

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.50

29-9690

5

Washer

Part# 29-9690

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.06

36-4770

6

Washer

Part# 36-4770

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.91

36-4780

7

Washer

Part# 36-4780

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.28

36-4792

8

Washer, Thrust

Part# 36-4792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.91

39-6650

9

Gear, 18t

Part# 39-6650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.77

39-6660

10

Pinion, Bevel 16t

Part# 39-6660

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.95

39-6720

11

Sleeve

Part# 39-6720

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.73

39-7842

12

Key, Machine 3/32 Sq X 2 1/8

Part# 39-7842

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.85

39-9650

13

Spring

Part# 39-9650

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.25

103-8221-03

14

Bracket, Belt Guide

Part# 103-8221-03 (Superseded to 116-0339-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.65

46-3540

15

Gear, 12t

Part# 46-3540

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.67

46-3550

16

Gear, 14t

Part# 46-3550

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.89

46-3560

17

Gear, 52t

Part# 46-3560

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $56.27

47-2910

18

Washer, Thrust

Part# 47-2910

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.77

47-6730

19

Seal, Oil

Part# 47-6730

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

47-7260

20

Seal

Part# 47-7260

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.99

48-2060

21

Bearing, Roller

Part# 48-2060 (Superseded to 117-3500)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.15

49-2040

22

Screw, Hwh 1/4-20 X 3/4 Tf

Part# 49-2040

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.61

53-7950

23

Shaft, Intermediate

Part# 53-7950

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $38.94

103-8237-03

24

Bracket, Bearing

Part# 103-8237-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.00

55-8020

25

Retainer, Key

Part# 55-8020

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.36

60-8870

26

Yoke, Shift

Part# 60-8870

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.22

62-3830

27

Washer

Part# 62-3830

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

13-5149

28

Shaft, Input

Part# 13-5149

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.60

74-1760

29

Gear, Bevel 40t

Part# 74-1760

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.92

109-0170

30

Gear Case, Upper

Part# 109-0170

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.55

74-1920

31

Gear Case, Lower

Part# 74-1920 (Superseded to 119-7863)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.47

92-9665

32

Screw, Truss Hd #10-12 X 1/2 Tf

Part# 92-9665

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.21

103-6114

33

Belt, Traction V

Part# 103-6114

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.48

103-6138

34

Lever, Shift

Part# 103-6138

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.28

103-6159

35

Screw, Tph 1/4-20 X 1/2

Part# 103-6159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.98

103-6429

37

Sheave, Gearbox Drive

Part# 103-6429

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.94

103-6435

38

Shaft, Axle

Part# 103-6435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.87

103-6436

39

Pinion, 14 Tooth

Part# 103-6436

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.03

109-2642

40

Sleeve, Gear

Part# 109-2642

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $45.26

109-6612

41

Plate, Bearing

Part# 109-6612

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.87

103-9773

42

Bearing, Roller

Part# 103-9773

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.00

104-8300

43

Nut, Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

251-180

44

Bearing

Part# 251-180 (Superseded to 116-7257)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

252-103

45

Bearing, Needle

Part# 252-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.22

302-63

46

Zerk

Part# 302-63

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.26

3230-23

47

Bolt, Carriage 5/16-18 X 3/4, Short Neck

Part# 3230-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

3256-45

48

Washer, Flat

Part# 3256-45

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

3257-1

49

Key, Woodruff 1/8 X 1/2

Part# 3257-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3285-19

50

Pin, Groove

Part# 3285-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.43

3296-5

51

Nut, Nyloc 3/8-24 Thin

Part# 3296-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.87

32121-99

52

Pin, Coil

Part# 32121-99

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

32151-57

53

Ring, Retaining

Part# 32151-57

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.65

32151-68

54

E-Ring

Part# 32151-68

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.16

612066

55

Key

Part# 612066

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.95

109-7034

56

Asm, Gear Case

Part# 109-7034 (Superseded to 116-0785)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $377.55

109-3130

57

Gear, 38t High Strength

Part# 109-3130

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.24

3274-31

58

Screw, Button Head 1/4-20 X 5/8

Part# 3274-31

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.92

103-8224

59

Guide, Belt

Part# 103-8224

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45

33128-33

60

Nut, Whizlock 1/4-20

Part# 33128-33

OEM Warranty Repair Part for Exmark

Currently unavailable

3296-56

61

Nut, Nyloc 1/4-20

Part# 3296-56

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.61

2412-32

62

Clip, Loom Half

Part# 2412-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.06

109-3614

63

Washer

Part# 109-3614

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.80
