MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 790000 - 849999) (2009) Deck and Wheel Assembly (Cont.) ( Part 1) Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

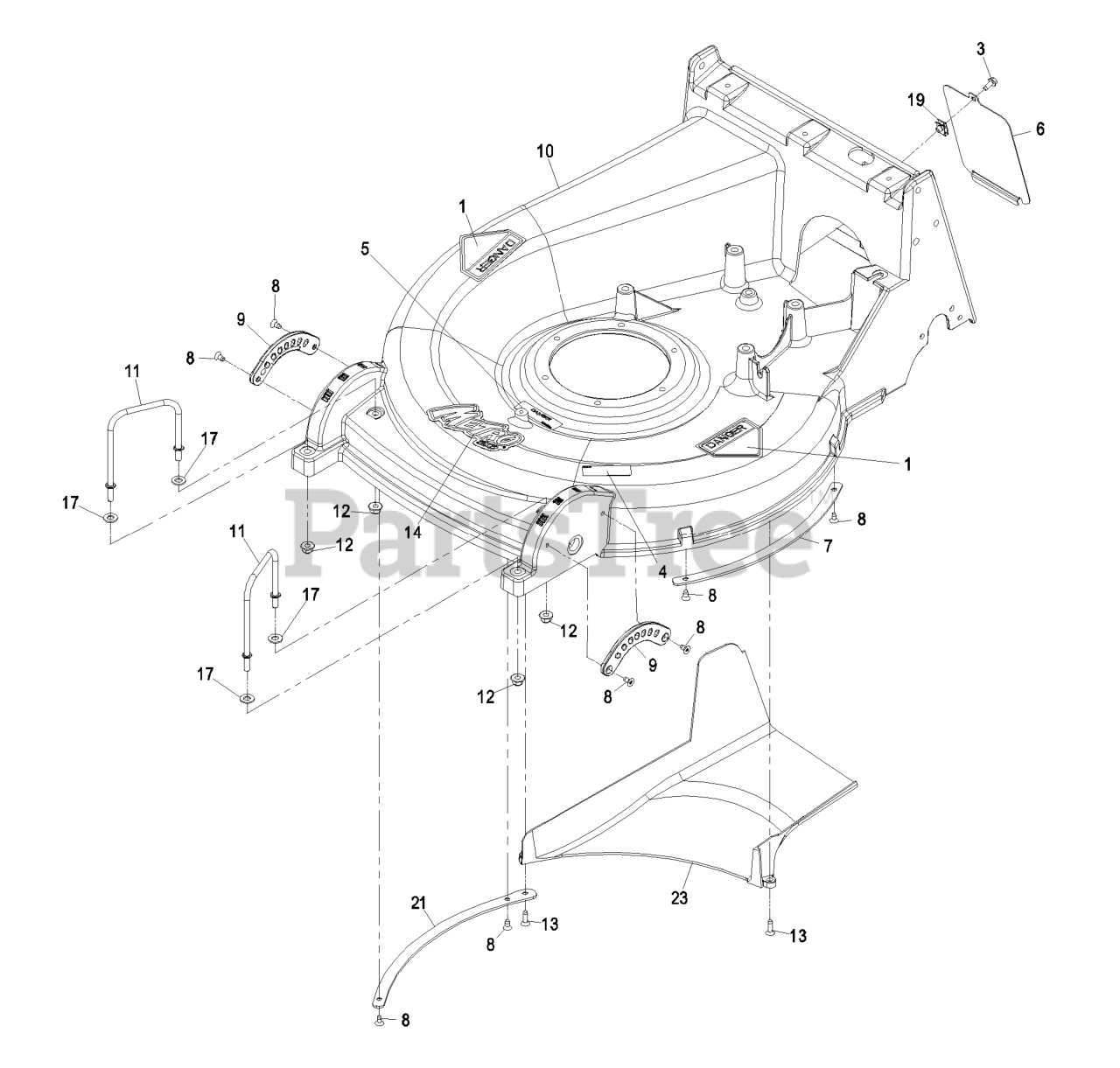

Deck and Wheel Assembly (Cont.) ( Part 1) Parts Diagram

  • Title

1

Exmark 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

3

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

4

Exmark 68-7410

DECAL-BLADE

$11.99

$

Usually ships in 3-6 days

0

5

Exmark 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 10

0

6

Exmark 116-0336

COVER-ACCESS, AXLE

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 116-0059-03

PLATE-SKID, 10 GAGE

$29.99

$

Usually ships in 3-6 days

0

8

Exmark 103-6145

SCREW

$5.49

$

In Stock, Qty 10

0

9

Exmark 103-6460

QUADRANT-FRONT

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 109-5476

ASM,DECK M26 W/DECALS

$908.99

$

Usually ships in 3-6 days

0

11

Exmark 103-8875

116-6944
(Superseded to 116-6944)

$28.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-0606

SCREW-TORX

$1.49

$

In Stock, Qty 6

0

14

Exmark 109-0046

DECAL,METRO 26

$

$

Not available

15

Exmark 116-1366

116-1405
(Superseded to 116-1405)

$72.99

$

In Stock, only 2 left!

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 10706-9

Nut, Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

21

Exmark 116-1273-03

PLATE-SKID

$45.99

$

Usually ships in 3-6 days

0

22

Exmark 116-1258

BUSHING,SHOULDER

$

$

Not available

23

Exmark 116-1405

PLASTIC CHUTE KIT (W/SCRE

Note: Kit includes item 13.

$72.99

$

In Stock, only 2 left!

0
