MS6KA26B - Exmark 26" Metro Walk-Behind Mower, 6hp Kawasaki (SN: 850000 - 919999) (2010) Deck And Wheel Assembly Parts Diagram

26" Metro Walk-Behind Mower, 6hp Kawasaki

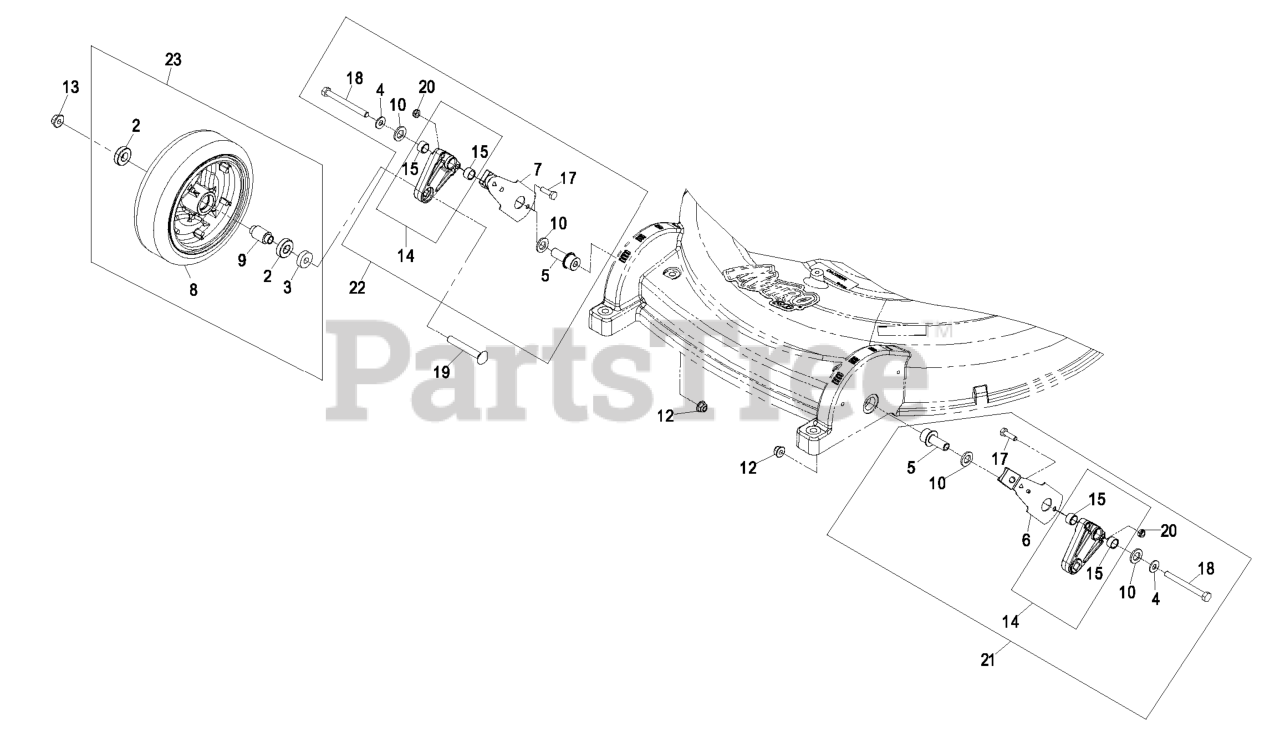

Deck And Wheel Assembly Parts Diagram

  • Title

2

Exmark 52-2450

BEARING-WHEEL

$20.99

$

In Stock, Qty 20+

0

3

Exmark 62-6660

SPACER

$0.99

$

In Stock, Qty 8

0

4

Exmark 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

5

Exmark 109-6041

BUSHING-PIVOT, WHEEL

$21.99

$

In Stock, only 2 left!

0

6

Exmark 103-6245

KIT,SPRING ARM FRONT LH

$43.99

$

In Stock, Qty 5

0

Exmark 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

7

Exmark 103-6246

KIT,SPRING ARM FRONT RH

$43.99

$

In Stock, only 2 left!

0

Exmark 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

8

Exmark 103-9976

ASM,8" WHEEL AND TIRE

$84.99

$

In Stock, Qty 8

0

9

Exmark 103-7649

SPACER-WHEEL, FRONT

$19.99

$

In Stock, only 2 left!

0

10

Exmark 77-0350

WASHER-THRUST, NYLON

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 109-2843

116-4353
(Superseded to 116-4353)

$36.99

$

Usually ships in 3-6 days

0

15

Exmark 109-2844

BEARING,SLEEVE

$3.49

$

In Stock, only 1 left!

0

17

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

19

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, only 3 left!

0

20

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 109-6882

116-4306
(Superseded to 116-4306)

Note: Complete assembly includes item 12 (1)

$158.99

$

Usually ships in 3-6 days

0

22

Exmark 109-6883

116-4307
(Superseded to 116-4307)

Note: Complete assembly includes item 12 (1)

$158.99

$

Usually ships in 3-6 days

0

23

Exmark 112-8706

8 INCH WHEEL ASM

$154.99

$

Usually ships in 3-6 days

0
