MSC 13960 - Toro Plow for Grandstand Multi Force Snow Machine or Mower (SN: 316000001 - 316999999) (2016) PLOW ASSEMBLY NO. MSC13960 Parts Diagram

Plow for Grandstand Multi Force Snow Machine or Mower

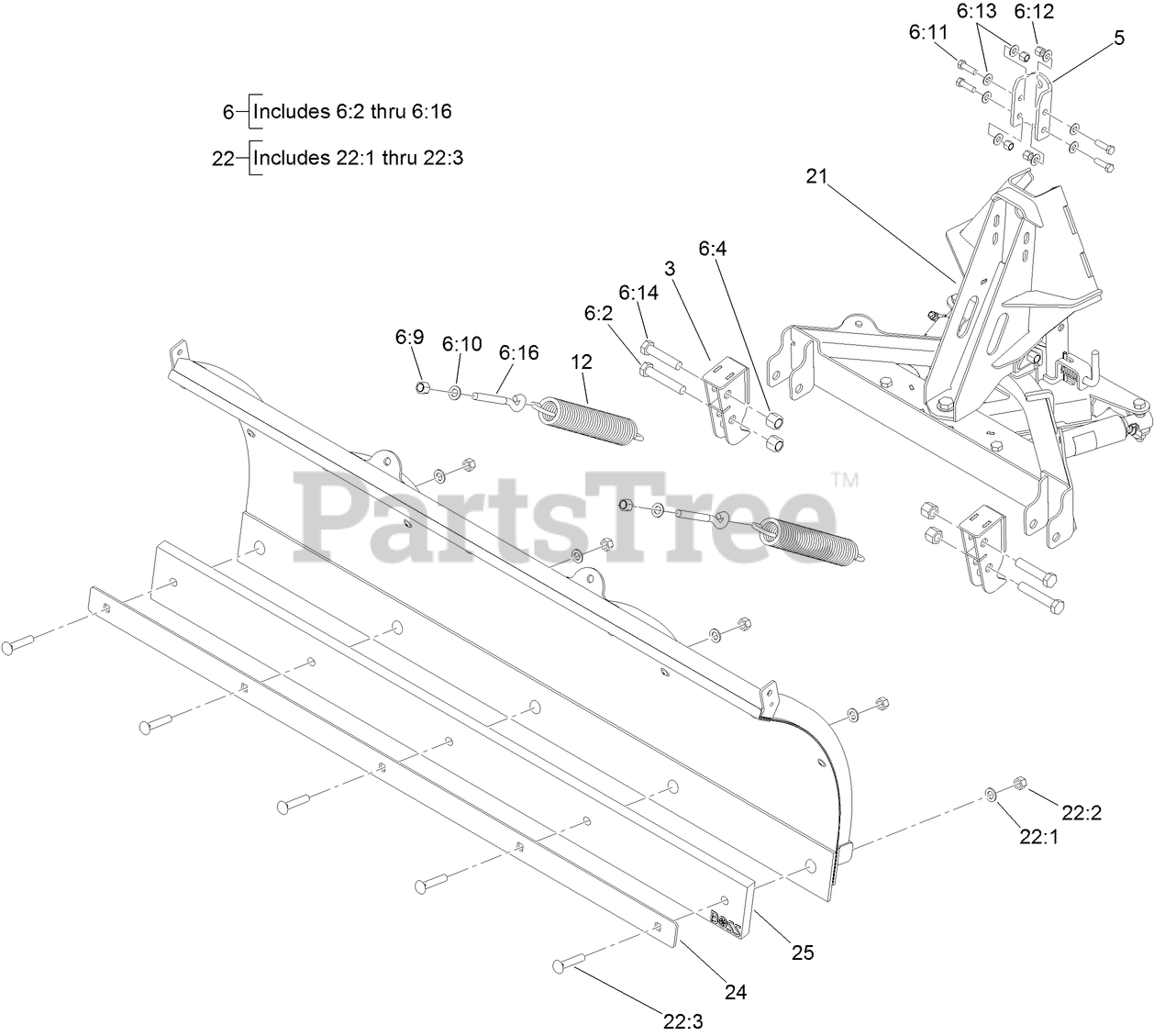

PLOW ASSEMBLY NO. MSC13960 Parts Diagram

  • Title

3

Toro STB13917-03

MOUNT ASM,LIM-ADJUST,STB,GRANDSTAND

$52.99

$

Usually ships in 3-6 days

0

5

Toro STB13951-03

COUPLER,PIN C-CHANNEL,GRANDSTAND

$27.99

$

Usually ships in 3-6 days

0

6

Toro STB13922

KIT-HDW,GRANDSTAND,PLOW SIDE

$53.99

$

Usually ships in 3-6 days

0

6:2

Toro HDW01707

HHCS,5/8-11X3-1/2,GR5,YZN

$4.49

$

Usually ships in 3-6 days

0

6:4

Toro HDW05619

NUT,5/8-11,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

6:9

Toro HDW01748

NUT,1/2-13,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

6:10

Toro HDW01729

WASHER,1/2,F436 HARD,F/W,YZN

$1.49

$

Usually ships in 3-6 days

0

6:11

Toro HDW01771

HHCS,3/8-16X1-1/4,NC,GR5,YZN

$1.49

$

Usually ships in 3-6 days

0

6:12

Toro HDW01720

NUT,3/8-16,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

6:13

Toro HDW05859

WASHER,FLAT,3/8ST/ST 18-8

$1.49

$

Usually ships in 3-6 days

0

6:14

Toro HDW05608

HHCS,5/8-11X3,GR5,YZN

$3.49

$

Usually ships in 3-6 days

0

6:16

Toro HDW02004

EYE BOLT,1/2-13X5-1/4(TO CEN),YZN

$6.49

$

Usually ships in 3-6 days

0

12

Toro MSC13678

SPRING,TRIP,STB,ATV/UTV

$63.99

$

Usually ships in 3-6 days

0

21

Toro MSC13954

PUSHFRAME,COUPLER ASM,GRANDSTAND

$2000.99

$

Usually ships in 3-6 days

0

22

Toro HDW13808

FASTENER KIT,URETHANE EDGE 3/4' THK,ST

$25.99

$

Usually ships in 3-6 days

0

22:1

Toro HDW01729

WASHER,1/2,F436 HARD,F/W,YZN

$1.49

$

Usually ships in 3-6 days

0

22:2

Toro HDW05597

NUT,1/2-13,TOP L/N,GRB,CADWAX,YZN

$1.49

$

In Stock, Qty 10

0

22:3

Toro HDW13807

BOLT,CARRIAGE,1/2'-13X2-1/2',GR5 BLKZ

$3.49

$

Usually ships in 3-6 days

0

24

Toro STB13804-03

STRAP,CUT EDGE,POLY,5,ATV/UTV,STB

$64.99

$

Usually ships in 3-6 days

0

25

Toro STB13803

CUTTING EDGE,URETHANE,5'X4'X3/4',STB

$233.99

$

Usually ships in 3-6 days

0
