MSC 13960 - Toro Plow for Grandstand Multi Force Snow Machine or Mower (SN: 316000001 - 316999999) (2016) PUSH FRAME COUPLER ASSEMBLY NO. MSC13954 Parts Diagram

Plow for Grandstand Multi Force Snow Machine or Mower

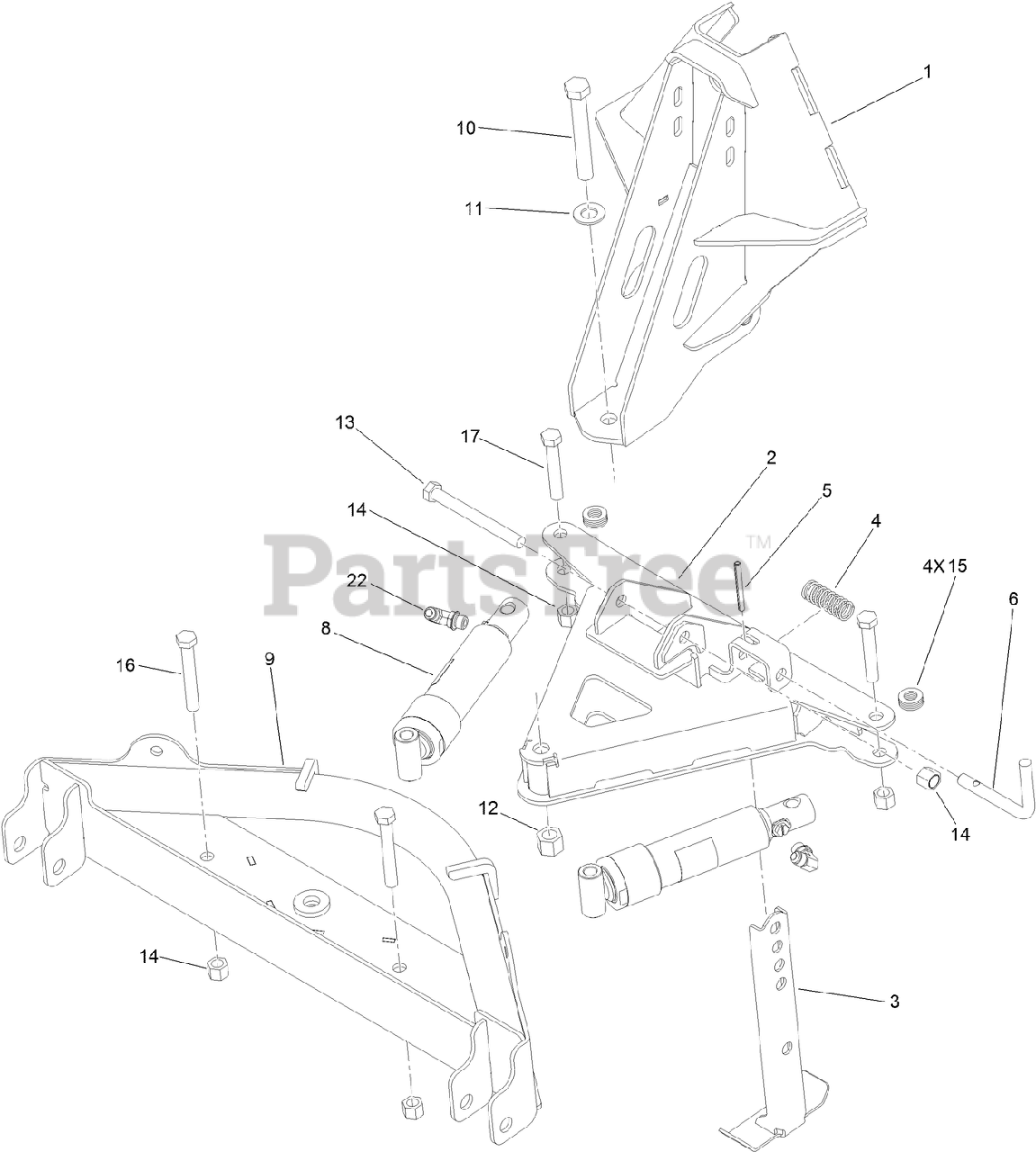

PUSH FRAME COUPLER ASSEMBLY NO. MSC13954 Parts Diagram

  • Title

1

Toro STB13961-03

COUPLER,FEMALE TRIANGLE,GRANDSTAND

$261.99

$

Usually ships in 3-6 days

0

2

Toro STB13962-03

PUSHFRAME ASM,STB,GRANDSTAND

$289.99

$

Usually ships in 3-6 days

0

3

Toro STB13921-03

KICKSTAND,GRANDSTAND

$36.99

$

Usually ships in 3-6 days

0

4

Toro TFR04410

SPRING,.85OD X 2.25SS

$8.49

$

Usually ships in 3-6 days

0

5

Toro HDW05538

PIN-ROLL, 1/4X2-1/2,YZN, KIT MSC03808

$2.99

$

Usually ships in 3-6 days

0

6

Toro STB09595

HANDLE,KKSTD,LD

$7.49

$

Usually ships in 3-6 days

0

8

Toro HYD13956

CYLINDER-RAM

$349.99

$

Usually ships in 3-6 days

0

9

Toro STB13530-03

PUSHFRAME ATT BAR,STB,ATV/UTV

$306.99

$

Usually ships in 3-6 days

0

10

Toro HDW01705

HHCS,5/8-11X4-1/2NC,GR5,YZN

$4.49

$

Usually ships in 3-6 days

0

11

Toro HDW01726

WASHER,5/8 FLAT HARDEN YZN

$1.49

$

Usually ships in 3-6 days

0

12

Toro HDW05619

NUT,5/8-11,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

13

Toro HDW05499

HHCS,1/2-13X5,NC,GR5,YZN

$3.49

$

Usually ships in 3-6 days

0

14

Toro HDW01748

NUT,1/2-13,NYL INS,YZN

$1.49

$

Usually ships in 3-6 days

0

15

Toro HDW01729

WASHER,1/2,F436 HARD,F/W,YZN

$1.49

$

Usually ships in 3-6 days

0

16

Toro HDW01779

HHCS,1/2-13X3-1/2,NC,GR5,YZN

$1.49

$

Usually ships in 3-6 days

0

17

Toro HDW06330

HHCS,1/2-13X3,GR5,YZN

$2.49

$

Usually ships in 3-6 days

0

20

Toro HYD13160

FITTING,QUICK CONNECT,FEMALE,1/4FNPT

Note: Not illustrated

$48.99

$

Usually ships in 3-6 days

0

21

Toro HYD13161

FITTING,QUICK CONNECT,MALE,1/4FNPT

Note: Not illustrated

$22.99

$

Usually ships in 3-6 days

0

22

Toro HYD13925

FITTING,90,6-MORB X 6-M37JIC

$12.99

$

Usually ships in 3-6 days

0

24

Toro HYD13927

HOSE,1/4MNPT X 3/8FJIC X 42

Note: Not illustrated

$67.99

$

Usually ships in 3-6 days

0
