MT 135380 (7800560) - Murray 38" Lawn Tractor, Gear Drive, 13.5hp (2009) Engine Group - 13.5HP Briggs & Stratton (7501630) Parts Diagram

38" Lawn Tractor, Gear Drive, 13.5hp

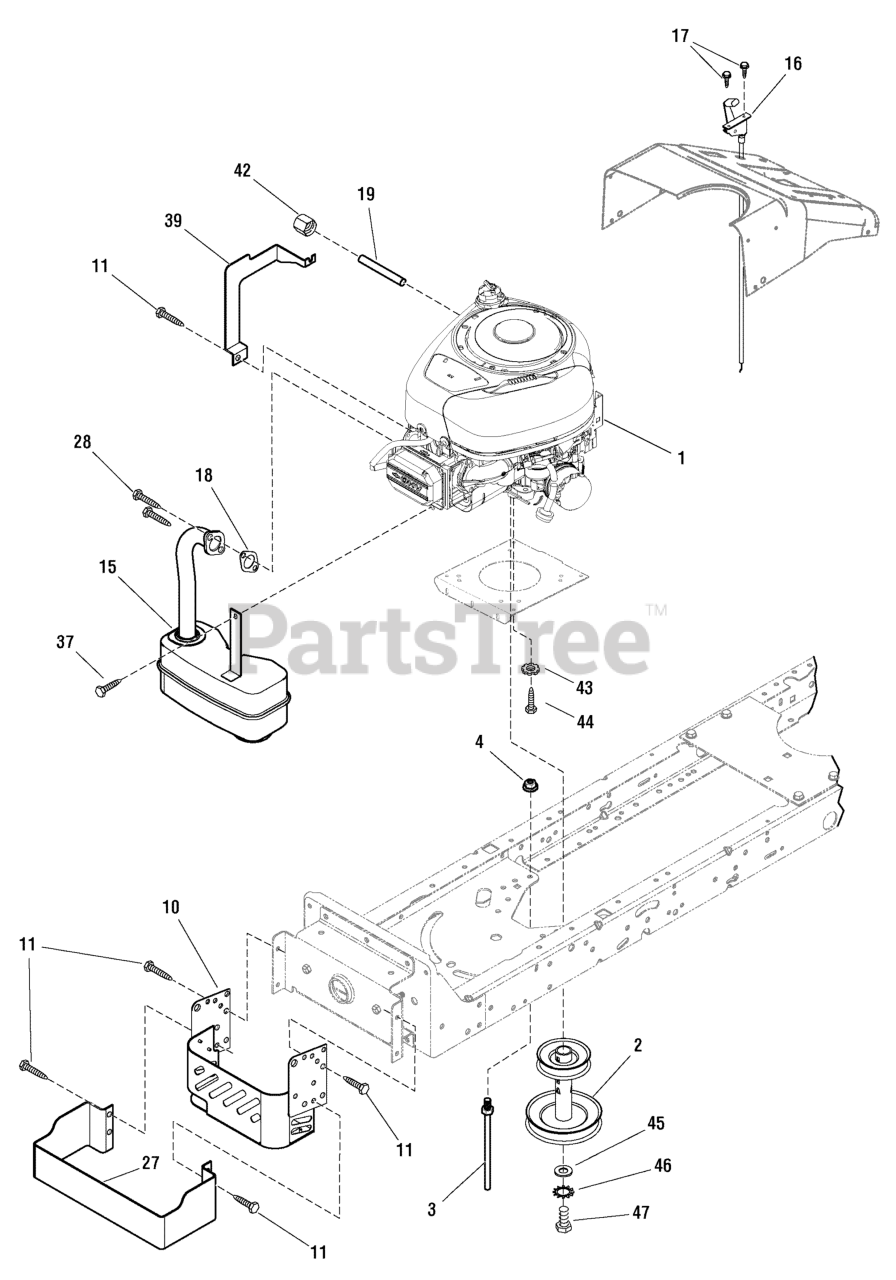

Engine Group - 13.5HP Briggs & Stratton (7501630) Parts Diagram

  • Title

1

Murray 21B807-0168-B1

* ENGINE, 13.5HP Briggs & Stratton

Note: (Engine Model: 21B807-0168-B1)

$

$

Currently unavailable

2

Murray 690439MA

PULLEY, Stack

$68.99

$

In Stock, Qty 5

0

3

Murray 094066MA

GUIDE, Belt

$14.99

$

In Stock, only 4 left!

0

4

Murray 015X79MA

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

10

Murray 1740501BMYP

HEAT SHIELD

$132.99

$

Usually ships in 2-12 days

0

11

Murray 26X277MA

SCREW, 5/16-18 x 1/2

$4.99

$

Usually ships in 2-12 days

0

15

Murray 7102601YP

MUFFLER ASSEMBLY, Single

$134.99

$

Usually ships in 2-12 days

0

16

Murray 092371MA

THROTTLE CONTROL

$40.99

$

Usually ships in 2-12 days

0

17

Murray 26X201MA

SCREW, Self Tap #8 x 3/8

$4.49

$

In Stock, only 2 left!

0

18

Murray 1731214SM

GASKET, Exhaust
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

19

Murray 7102821YP

NIPPLE, Pipe, 3/8 x 3 in

$15.99

$

Usually ships in 2-12 days

0

27

Murray 7300783BMYP

GUARD, Heat Shield, Front

$88.99

$

Usually ships in 2-12 days

0

28

Murray 06X103MA

SCREW, Torx Head 5/16-18 x 5/8

$6.99

$

Usually ships in 2-12 days

0

37

Murray 7091819SM

SCREW, Thread Forming 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 20+

0

39

Murray 1740504BMYP

GUARD, Exhaust Pipe

$38.99

$

Usually ships in 2-12 days

0

42

Murray 021651ZMA

CAP, Pipe 3/8

$7.49

$

Usually ships in 2-12 days

0

43

Murray 0019X8MA

WASHER, Star, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

44

Murray 0025X7MA

BOLT, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

Usually ships in 2-12 days

0

45

Murray 17X170MA

WASHER, .470- 1.00.25 FLT

$

$

Not available

46

Murray 019X35MA

WASHER, Star, 1/2

$4.99

$

In Stock, Qty 10

0

47

Murray 01X140MA

BOLT, Hex, 7/16-20 x 1-1/2

$5.49

$

In Stock, Qty 8

0
