MT 155380 (2691198-00) - Yard King 38" Lawn Tractor, 15.5hp (2013) Motion Drive Group - Hydro Drive - Hydro Gear T2 (7501094a) Parts Diagram

38" Lawn Tractor, 15.5hp

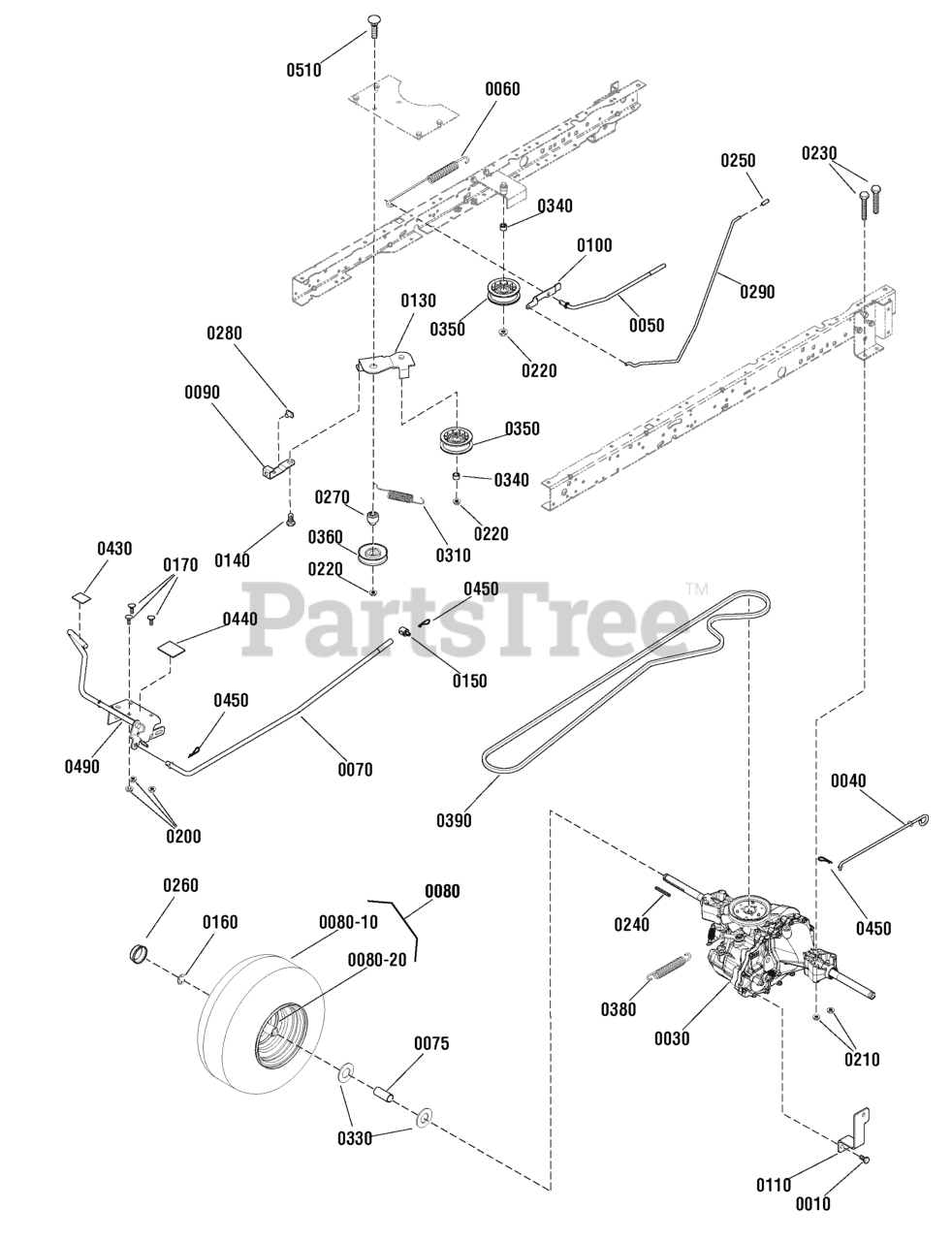

Motion Drive Group - Hydro Drive - Hydro Gear T2 (7501094a) Parts Diagram

  • Title

0010

Murray 7027174SM

BOLT, Hex Head, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

0030

Murray 7102572YP

TRANSAXLE, Hydro T2

$1054.99

$

Usually ships in 2-12 days

0

0040

Murray 7102589YP

ROD, Roll Release

$16.99

$

Usually ships in 2-12 days

0

0050

Murray 7102590YP

ROD, Clutch Drive

$15.99

$

Usually ships in 2-12 days

0

0060

Murray 7102591YP

SPRING, Hydro Brake T2

$11.99

$

Usually ships in 2-12 days

0

0070

Murray 7102592YP

ROD, Drive

$42.99

$

Usually ships in 2-12 days

0

0075

Murray 7102636YP

SPACER, Axle

$13.99

$

Usually ships in 2-12 days

0

0080

Murray 7102668YP

WHEEL AND TIRE ASSEMBLY, 18 x 8.5-8

Note: (Includes Ref. Nos. 0080-10 & 0080-20)

$205.99

$

Usually ships in 2-12 days

0

0080-10

Murray 7102670YP

TIRE, 18 x 8.5-8 2 Ply K358

$125.99

$

Usually ships in 2-12 days

0

0080-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0090

Murray 7300934YP

LINK, Clutch, Yellow

$6.99

$

Usually ships in 2-12 days

0

0100

Murray 7300940YP

LATCH, Parking Brake, Yellow

$7.99

$

Usually ships in 2-12 days

0

0110

Murray 7301018YP

BRACKET, Torque T2

$23.99

$

Usually ships in 2-12 days

0

0130

Murray 7500602ZYP

ARM ASSEMBLY, Idler

$36.99

$

Usually ships in 2-12 days

0

0140

Murray 7900058YP

BOLT, Shoulder, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

0150

Murray 7900069YP

NUT, Adjusting

$10.99

$

Usually ships in 2-12 days

0

0160

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 12

0

0170

Murray 002X53MA

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 015X79MA

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Murray 015X88MA

NUT, Hex Flange Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0220

Murray 015X98MA

NUT, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0230

Murray 01X155MA

BOLT, Hex, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

0240

Murray 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, Qty 6

0

0250

Murray 091079MA

GRIP

$3.49

$

Usually ships in 2-12 days

0

0260

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

0270

Murray 1001012MA

BUSHING, Pivot

$9.49

$

Usually ships in 2-12 days

0

0280

Murray 1001014MA

NUT, Tee

$4.99

$

Usually ships in 2-12 days

0

0290

Murray 1001245ZMA

ROD, Parking Brake

$33.99

$

Usually ships in 2-12 days

0

0310

Murray 165X155MA

SPRING, Extension

$6.49

$

In Stock, only 2 left!

0

0330

Murray 17X195MA

WASHER, Flat

$4.99

$

In Stock, Qty 15

0

0340

Murray 690369MA

SPACER, 1/2" to 17mm

$5.99

$

In Stock, only 3 left!

0

0350

Murray 690409MA

PULLEY, Idler, 2-3/4"

$19.99

$

In Stock, only 3 left!

0

0360

Murray 690410MA

PULLEY, Idler, 3"

$19.99

$

In Stock, only 1 left!

0

0370

Murray 017X48MA

WASHER, Flat, 3/8

$8.49

$

Usually ships in 2-12 days

0

0380

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 3 left!

0

0390

Murray 7101794YP

V-BELT, Drive, 4L, 88.96"
(Superseded to 37X106MA)

$43.99

$

In Stock, only 1 left!

0

0430

Murray 093249MA

MAT, Toe

$3.49

$

Usually ships in 2-12 days

0

0440

Murray 094953MA

PAD, Hydro Pedal

$

$

Not available

0450

Murray 1722460SM

HAIR PIN, .56D-.092T
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0460

Murray 017X57MA

WASHER, Flat, 3/4

$4.49

$

Usually ships in 2-12 days

0

0480

Murray 165X168MA

SPRING, Extension

$5.99

$

Usually ships in 2-12 days

0

0490

Murray 7400303BMYP

PEDAL, Hydro

$102.99

$

Usually ships in 2-12 days

0

0510

Murray 002X92MA

BOLT, Carriage, 3/8-16 x 2

$4.99

$

In Stock, only 4 left!

0

0520

Murray 17X160MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 11

0
