MT 175420 (7800562) - Murray 42" Lawn Tractor, Hydro Drive, 17.5hp (2009) Hood & Seat Group Parts Diagram

42" Lawn Tractor, Hydro Drive, 17.5hp

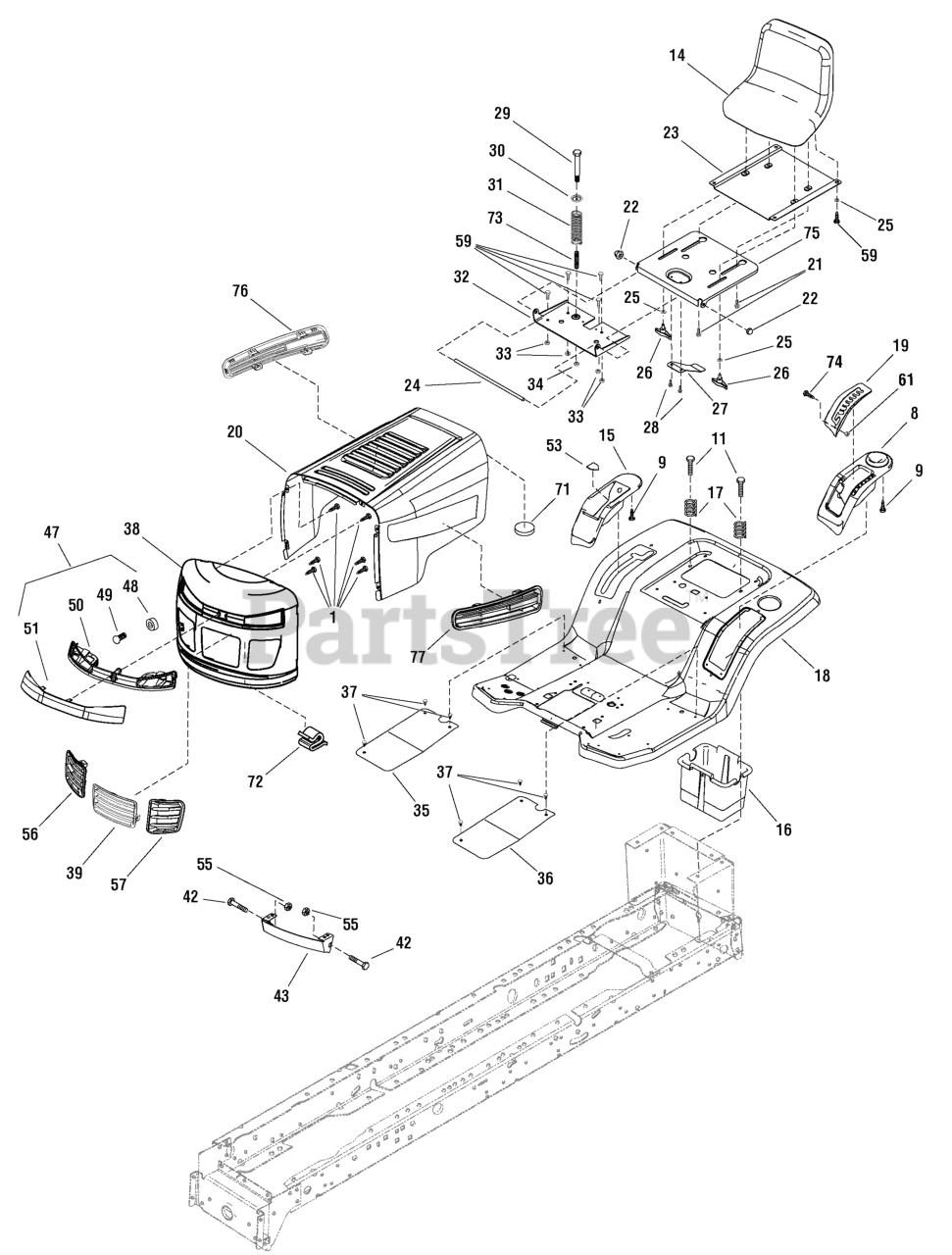

Hood & Seat Group Parts Diagram

  • Title

1

Murray 26X270MA

SCREW, Thread Forming

$4.49

$

In Stock, only 3 left!

0

8

Murray 7101770YP

POD, With Cup Holder

$45.99

$

Usually ships in 2-12 days

0

9

Murray 7102073YP

SCREW, Thread Cutting 1/4-20

$3.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

14

Murray 1001854MA

SEAT, Low Back

$478.99

$

Usually ships in 2-12 days

0

15

Murray 7101771YP

POD, With Compartment

$45.99

$

Usually ships in 2-12 days

0

16

Murray 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

17

Murray 164X30MA

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

18

Murray 7300677ZYP

DECK, Seat

$444.99

$

Usually ships in 2-12 days

0

19

Murray 7300865BMYP

PLATE, Index

$22.99

$

Usually ships in 2-12 days

0

20

Murray 7300964DYP

HOOD

$296.99

$

Usually ships in 2-12 days

0

21

Murray 009X56MA

BOLT, Shoulder 5/16-18 x 5/8

$3.49

$

Usually ships in 2-12 days

0

22

Murray 028X23MA

CAP, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

23

Murray 7400286YP

SEAT PLATE

$62.99

$

Usually ships in 2-12 days

0

24

Murray 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

25

Murray 017X47MA

WASHER, Flat, 5/16
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 1001054MA

BOLT, Wing 5/16-18 x 1/2

$6.99

$

Usually ships in 2-12 days

0

27

Murray 094057MA

LEAF SPRING

$5.99

$

Usually ships in 2-12 days

0

28

Murray 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

29

Murray 009X55MA

BOLT, Shoulder 1/4-20 x 5/16

$3.49

$

Usually ships in 2-12 days

0

30

Murray 094155ZMA

WASHER, Cup

$3.99

$

Usually ships in 2-12 days

0

31

Murray 164X31MA

SPRING, Compression

$7.99

$

In Stock, only 2 left!

0

32

Murray 7300794BMYP

BRACKET, Seat Pivot

$33.99

$

Usually ships in 2-12 days

0

33

Murray 15X123MA

NUT, Nylock 5/16-18

$3.99

$

Usually ships in 2-12 days

0

34

Murray 015X82MA

NUT, Hex Flange, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

35

Murray 095409MA

MAT, Molded Right

$32.99

$

Usually ships in 2-12 days

0

36

Murray 095408MA

MAT, Molded Left

$30.99

$

Usually ships in 2-12 days

0

37

Murray 0193X1MA

FASTENER, Panel

$3.99

$

In Stock, only 1 left!

0

38

Murray 7400282DYP

GRILLE

$110.99

$

Usually ships in 2-12 days

0

39

Murray 1741767YP

INSERT, Center Grille

$16.99

$

Usually ships in 2-12 days

0

42

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

43

Murray 7300758BMYP

BRACKET, Lower Pivot

$37.99

$

Usually ships in 2-12 days

0

47

Murray 7500571YP

HEADLIGHT ASSEMBLY
(Superseded to 7600160YP)

Note: (Includes Ref. Nos. 48, 49, 50 & 51)

$90.99

$

Usually ships in 2-12 days

0

48

Murray 1001716MA

SOCKET, Lamp

$7.99

$

In Stock, Qty 11

0

49

Murray 1677371SM

BULB, 12.8V

$30.99

$

In Stock, only 1 left!

0

50

Murray 1001819MA

HOUSING, Light

$36.99

$

Usually ships in 2-12 days

0

51

Murray 1001820MA

LENS, Light

$53.99

$

Usually ships in 2-12 days

0

53

Murray 7101493YP

INDICATOR, Cutting Height

$3.99

$

Usually ships in 2-12 days

0

55

Murray 015X84MA

NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

56

Murray 1741768YP

INSERT, Right Grille

$10.99

$

Usually ships in 2-12 days

0

57

Murray 1741769YP

INSERT, Left Grille

$22.99

$

Usually ships in 2-12 days

0

59

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

61

Murray 015X81MA

NUT, Flange Lock 1/4-20

$4.99

$

Usually ships in 2-12 days

0

71

Murray 094376MA

BUMPER

$3.49

$

Usually ships in 2-12 days

0

72

Murray 028X83MA

S-Clip

$3.99

$

In Stock, only 2 left!

0

73

Murray 7074511SM

SPRING, Brake Compression

$10.99

$

Usually ships in 2-12 days

0

74

Murray 009X47MA

SCREW, Shoulder #10-24

$4.49

$

Usually ships in 2-12 days

0

75

Murray 7300875BMYP

SUPPORT, Seat

$65.99

$

Usually ships in 2-12 days

0

76

Murray 1741766YP

INSERT, Right Hood

$22.99

$

Usually ships in 2-12 days

0

77

Murray 1741765YP

INSERT, Left Hood

$22.99

$

Usually ships in 2-12 days

0
