MT 195420 H (2690929) - Murray 42" Lawn Tractor, Hydro Drive, 19.5hp (2011) Transmission Group - Hydro Gear Parts Diagram

42" Lawn Tractor, Hydro Drive, 19.5hp

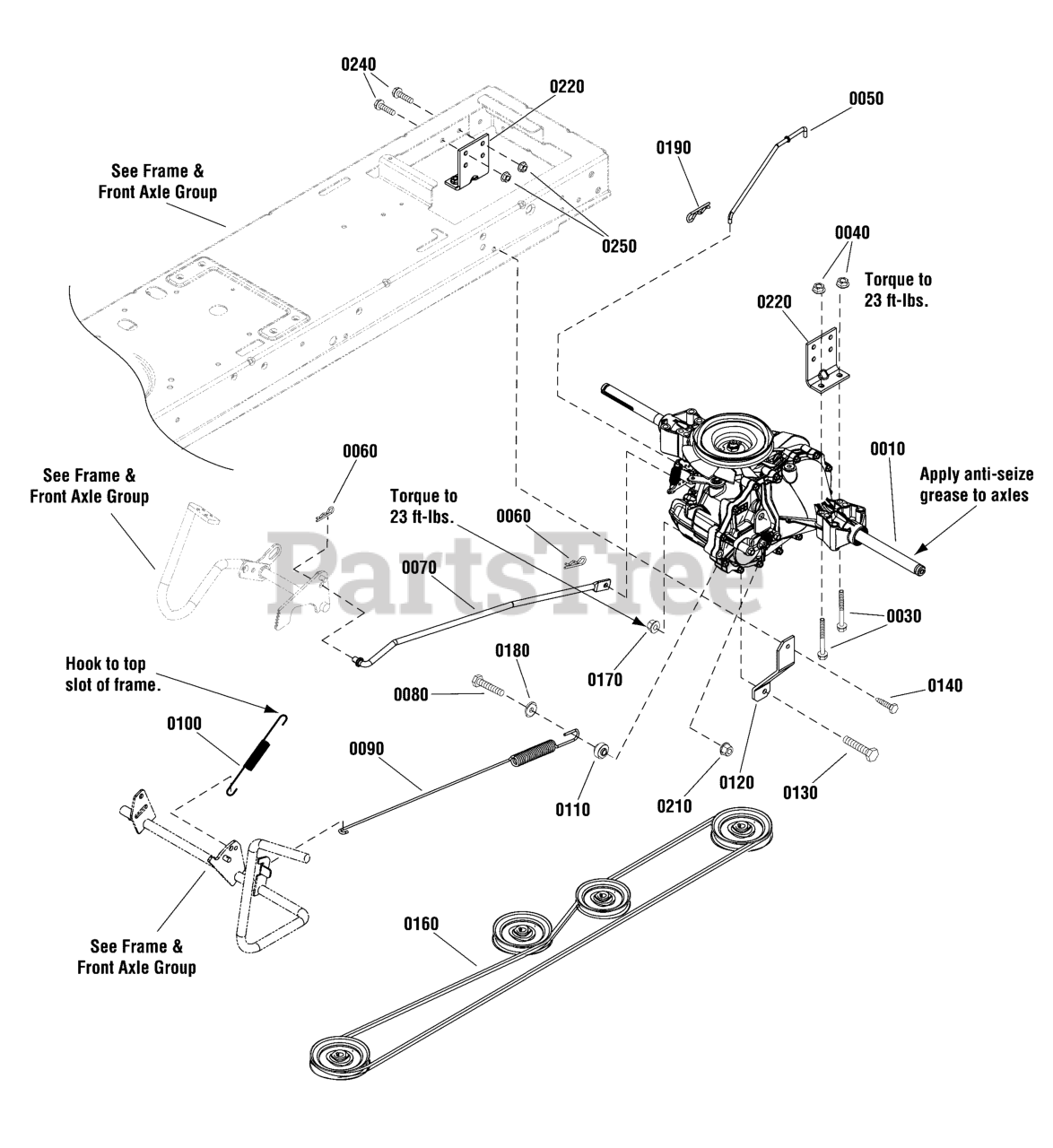

Transmission Group - Hydro Gear Parts Diagram

  • Title

0010

Murray 1736637

* TRANSMISSION, Hydro Gear
(Superseded to 1736637YP)

$1195.99

$

In Stock, only 1 left!

0

0030

Murray 1960586

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 2-1/2
(Superseded to 1960586SM)

$4.99

$

Usually ships in 2-12 days

0

0040

Murray 1931277

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1736716

ROD, Free Wheel
(Superseded to 1759749YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Murray 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

0070

Murray 1750545

ROD, Speed Control
(Superseded to 1750545YP)

$23.99

$

Usually ships in 2-12 days

0

0080

Murray 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 11

0

0090

Murray 1736409

SPRING, Extension
(Superseded to 1736409YP)

$16.99

$

Usually ships in 2-12 days

0

0100

Murray 1721995

SPRING, Extension, 6-5/8 Lg
(Superseded to 1721995SM)

$8.49

$

In Stock, only 1 left!

0

0110

Murray 1736854

SPACER
(Superseded to 1736854YP)

$14.99

$

Usually ships in 2-12 days

0

0120

Murray 1736410A

STRAP, Torque
(Superseded to 1736410AYP)

$20.99

$

In Stock, only 1 left!

0

0130

Murray 1921978

CAPSCREW, Hex Head, 5/16-18 x 2
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

0140

Murray 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0160

Murray 1737441

V-BELT, Drive Belt, HA, 88.46
(Superseded to 1737441YP)

$51.99

$

In Stock, only 1 left!

0

0170

Murray 1960686

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

0180

Murray 1919381

WASHER, Flat, 5/16 x 1 OD
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 9

0

0190

Murray 1960221

CLIP, Hair Pin, 5/8 Dia. x 1-5/16 Lg
(Superseded to 704039)

$4.49

$

In Stock, only 2 left!

0

0210

Murray 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

0220

Murray 1727903ASM

SUPPORT, Transmission
(Superseded to 1727903SM)

$10.99

$

In Stock, only 4 left!

0

0240

Murray 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

0250

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0
