MT 24460 (7800564) - Murray 46" Lawn Tractor, Hydro Drive, 24hp (2009) Engine Group - 24HP Briggs & Stratton Parts Diagram

46" Lawn Tractor, Hydro Drive, 24hp

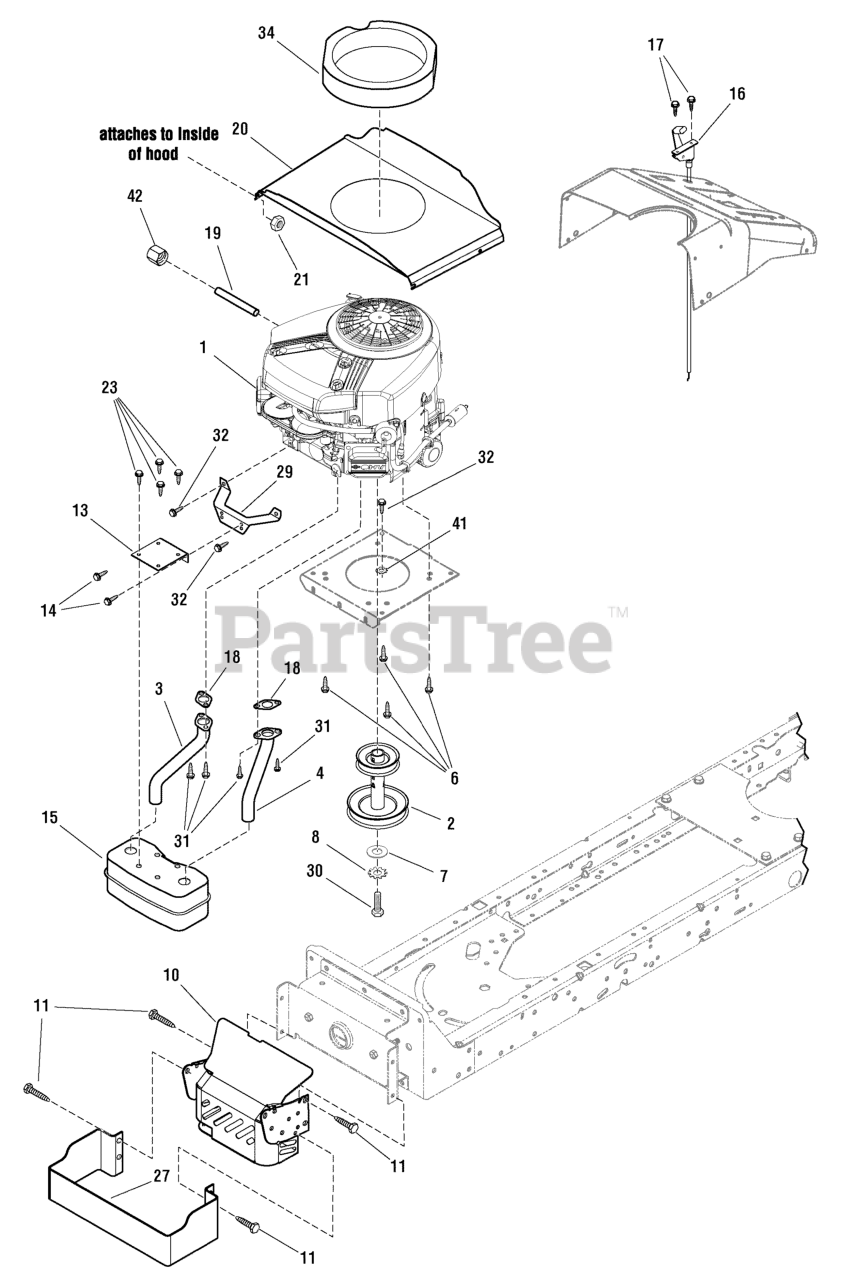

Engine Group - 24HP Briggs & Stratton Parts Diagram

  • Title

1

Murray 445677-0128-B1

ENGINE, 24.0HP Briggs & Stratton*

Note: (Engine Model: 445677-0128-B1)

$

$

Currently unavailable

2

Murray 7101524YP

PULLEY, Stack

$108.99

$

Usually ships in 2-12 days

0

3

Murray 7102402YP

EXHAUST TUBE, Right

$24.99

$

Usually ships in 2-12 days

0

4

Murray 7102403YP

EXHAUST TUBE, Left

$24.99

$

Usually ships in 2-12 days

0

6

Murray 0025X7MA

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

7

Murray 17X170MA

WASHER, Flat, 1/2

$

$

Not available

8

Murray 019X35MA

WASHER, Star, 1/2

$4.99

$

In Stock, Qty 11

0

10

Murray 1740501BMYP

HEAT SHIELD

$132.99

$

Usually ships in 2-12 days

0

11

Murray 06X104MA

SCREW, Hex Head 5/16-18 x 5/8

$4.49

$

Usually ships in 2-12 days

0

13

Murray 7300760BMYP

BRACKET, Muffler

$19.99

$

Usually ships in 2-12 days

0

14

Murray 26X263MA

SCREW, Hex 1/4-20 x 5/8

$4.99

$

In Stock, only 1 left!

0

15

Murray 093259MA

MUFFLER, Twin

$98.99

$

Usually ships in 2-12 days

0

16

Murray 7102957YP

THROTTLE CONTROL

$38.99

$

Usually ships in 2-12 days

0

17

Murray 26X201MA

SCREW, Self Tap #8 x 3/8

$4.49

$

In Stock, only 2 left!

0

18

Murray 1731214SM

GASKET, Exhaust
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

19

Murray 7102821YP

NIPPLE, Pipe, 3/8 x 3 in

$15.99

$

Usually ships in 2-12 days

0

20

Murray 7300913YP

PLENUM, Murray

$145.99

$

Usually ships in 2-12 days

0

21

Murray 015X66MA

NUT, Keps Lock 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

23

Murray 26X229MA

SCREW, 1/4-14 x 3/8

$4.49

$

In Stock, only 1 left!

0

27

Murray 7300783BMYP

GUARD, Heat Shield, Front

$88.99

$

Usually ships in 2-12 days

0

29

Murray 7300817ZMA

BRACKET, Muffler Mounting

$11.99

$

Usually ships in 2-12 days

0

30

Murray 01X140MA

BOLT, Hex, 7/16-20 x 1-1/2

$5.49

$

In Stock, Qty 11

0

31

Murray 7091738SM

SCREW, 5/16-18 x 3/4

$4.99

$

In Stock, Qty 10

0

32

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

34

Murray 7102137YP

BAFFLE

$68.99

$

Usually ships in 2-12 days

0

41

Murray 0019X8MA

WASHER, Star, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

42

Murray 021651ZMA

CAP, Pipe 3/8

$7.49

$

Usually ships in 2-12 days

0
